User Manual

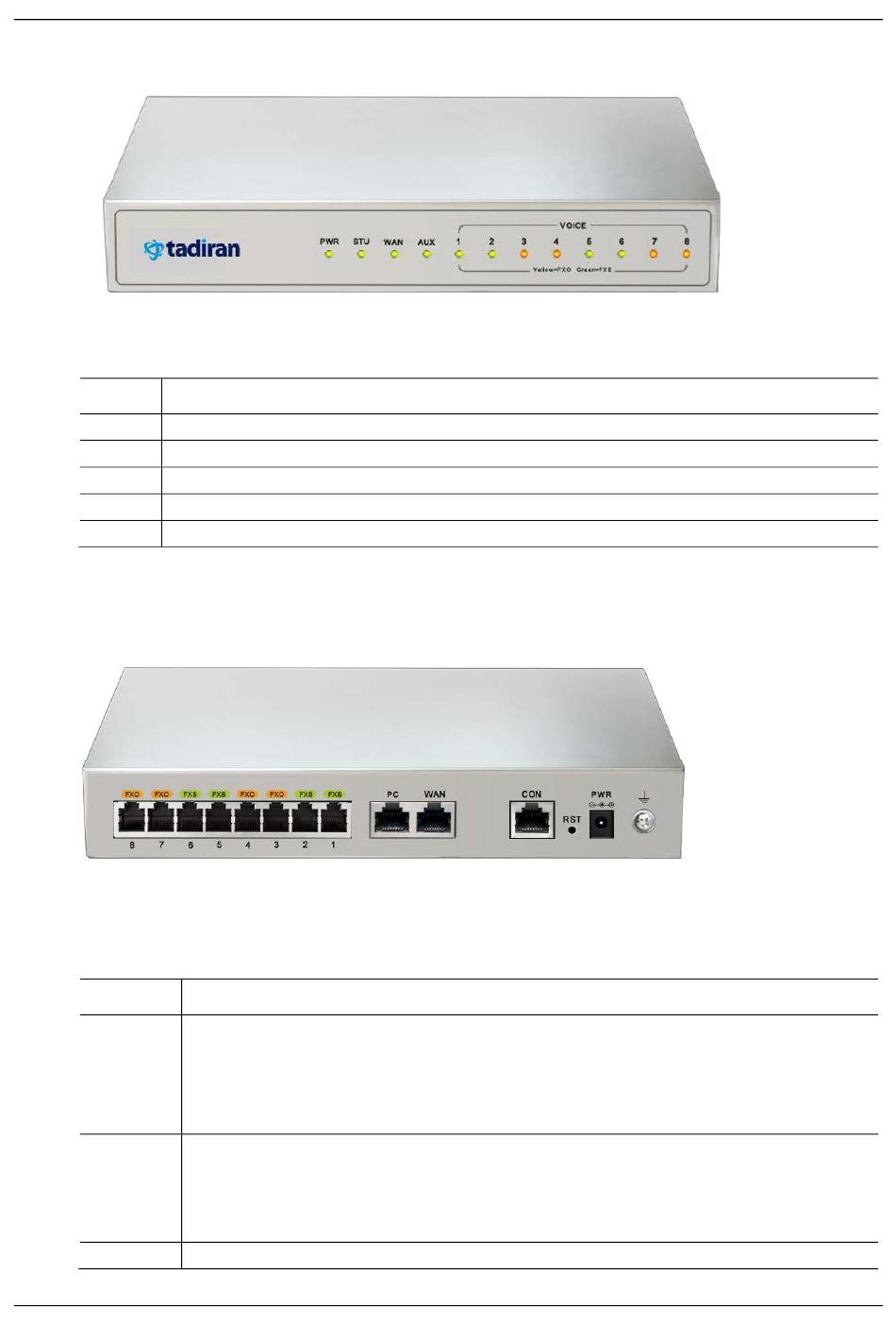

TGW8-2G Front Panel
Figure 1-3

Table 1-7 Description of TGW8-2G Front Panel

Item Description
PWR Power indicator
STU Status indicator
WAN WAN interface indicator
PC PC interface indicator
VOICE FXS/FXO port indicator
TGW8-2G Back Panel
Figure 1-4

Table 1-8 Description of TGW8-2G Back Panel

Item
CON
PC/WAN
FXO/FXS
6
Description
The console port is used for local management and testing. PCs can be connected to device by linking
the RS232 port to CON port.
Connecting cables need to be produced or purchased.
If the connection is established between the device and the mobile PC with no RS232 ports, please use
the cable together with a USB to an RS232 converter cable.
Cables are shown below in Figure 1-5 and Figure 1-6.
The PC port is used to connect a computer.
The WAN port is used to connect the uplink network.
Both are 10/100 Mbps Ethernet ports (RJ45). They share one IP address, which, by default, is obtained
through DHCP. If no IP address is obtained, 192.168.2.218 is used by default, and you can change it on
Basic > Network page.
FXS port or FXO port
T G W S IP -F X S /F S O G a te w a y S e rie s
