Functional Principle, Technical Data

3. Functional Principle, Technical Data
3.1

Short Description

3.1.1

Measuring Principle

surfaceCONTROL 3D 32xx is a sensor for non-contact and non-destructive optical and three-dimensional detection of
components with diffuse reflective surfaces. It operates according to the optical triangulation principle (fringe projection):
- Using a matrix projector, a sequence of patterns is projected onto the surface of the test object.
- The light of the patterns diffusely reflected by the test object surface is recorded by two cameras.
- The three-dimensional surface of the test object is then calculated from the recorded image sequence and the ar-
rangement of the two cameras to each other.

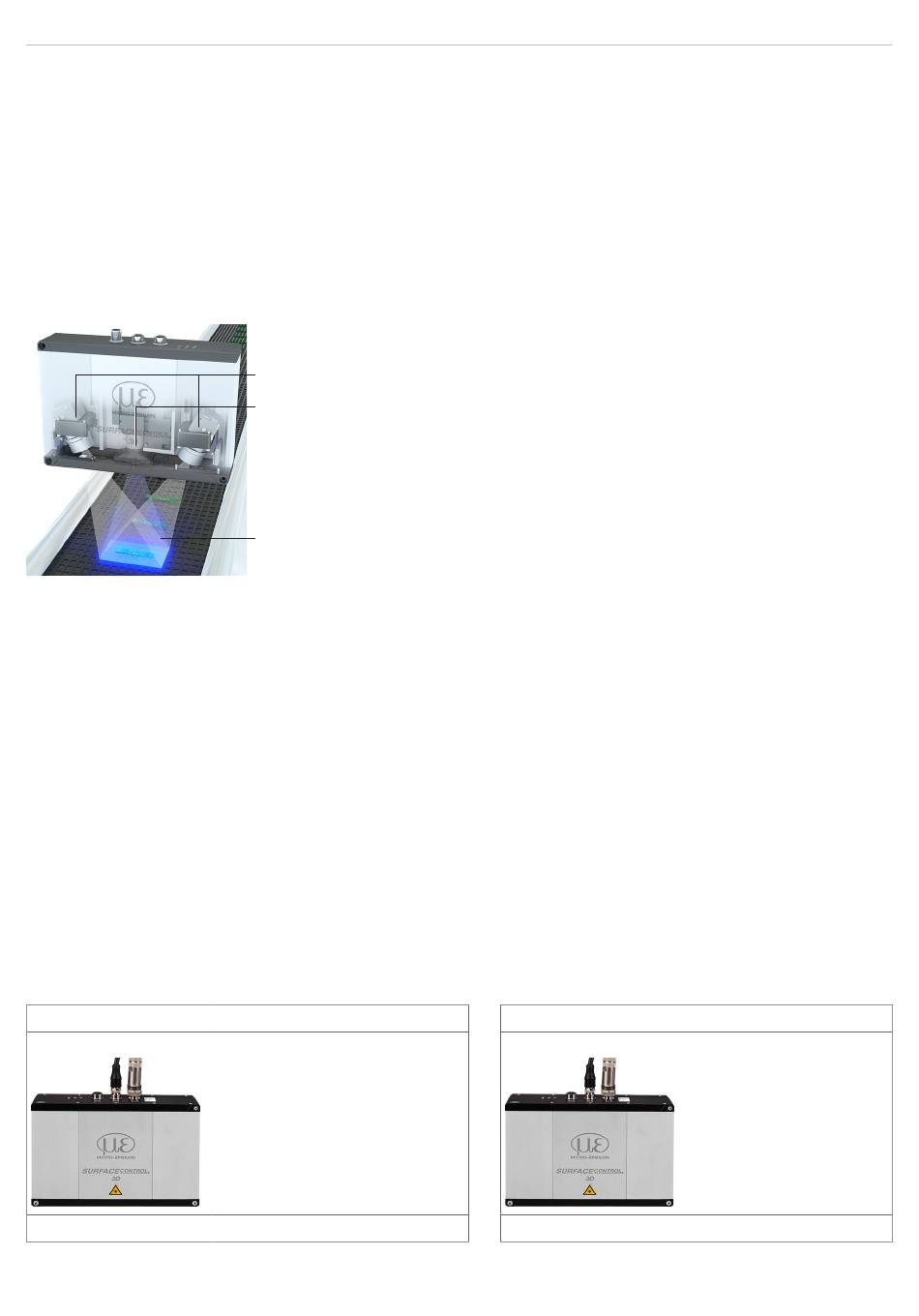

Fig. 2 Measuring Principle
3.1.2

System Setup

The surfaceCONTROL 3D 32xx measuring system is a compact sensor with an integrated controller. All necessary
integral parts are combined in one housing.
3.1.3

Special Performance Features

- surfaceCONTROL 3D 32xx is characterized by a compact design and highly accurate measurements while at the
same time achieving high throughput of 3D points.
- Data are output via Gigabit Ethernet. GigE Vision compatibility allows the sensor to be integrated in different ways:
ƒ Software provided by Micro-Epsilon
ƒ Software by third parties
ƒ SDK
- Gigabit Ethernet as a fast default connection to the PC
- The sensor additionally offers an I/O interface:
ƒ Querying sensor states
ƒ External control, e.g., triggering
System integrators, customers require their own software
SC3200
surfaceCONTROL 3D SC3200 / SC3210
1
2
3
- supported by 3D-View
- supported by 3DInspect
- supported by SDK
- supports GigE Vision
- supported by DefMap3D (li-
censing via additional dongle)
1 Cameras
2 Projection unit
3 Fringe light
User
SC3210
Micro-Epsilon software
- unlocking of functional
extension 3DInspect
Automation
Page 8
