MICRO-EPSILON surfaceCONTROL 3D SC3200-80 Operating Instructions Manual page 13

Installation and Mounting
(2)

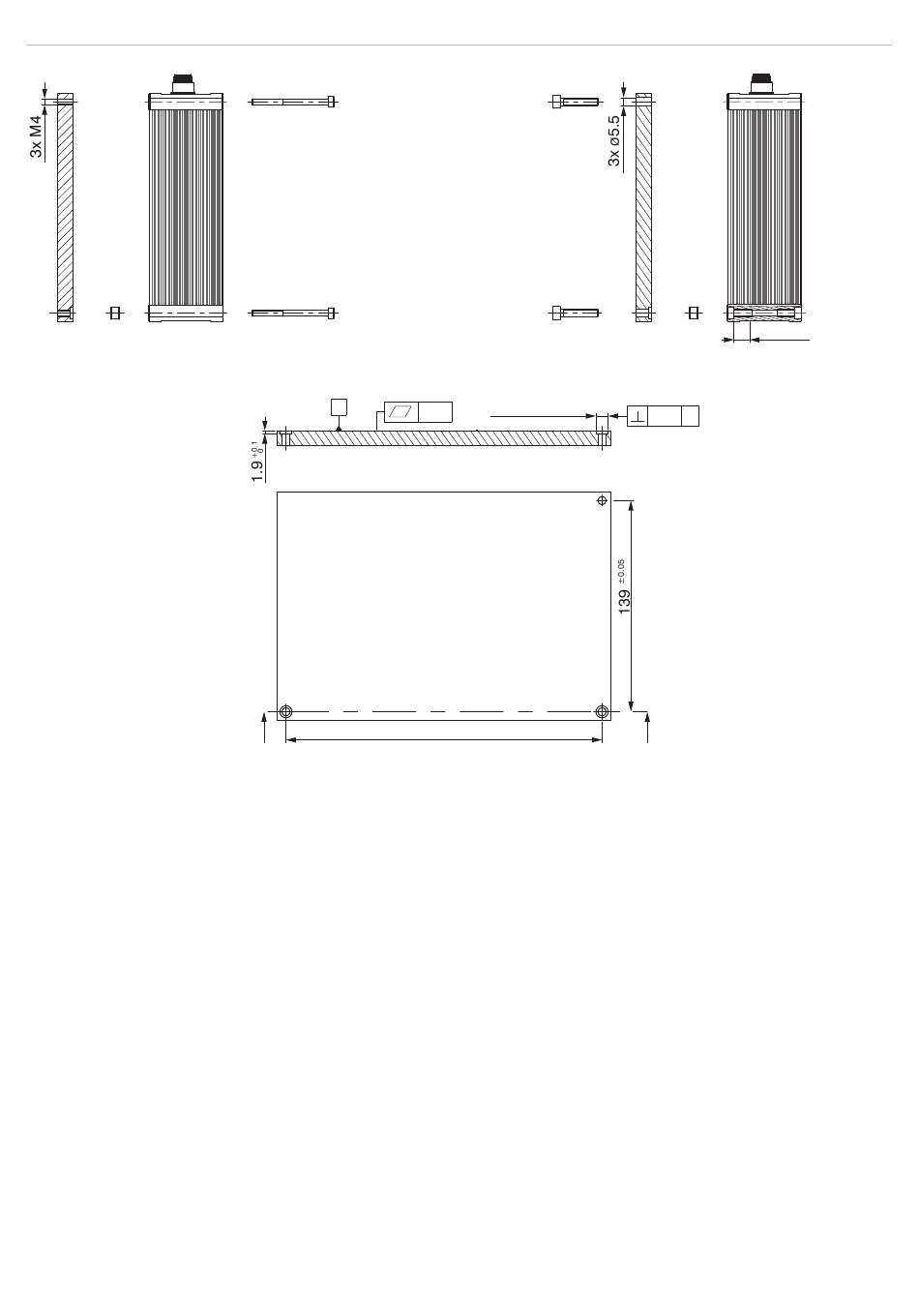

Fig. 5 Mounting example with bolt connection
Bolt connection:
- 3 threaded holes (M4)
with centering element:
- additionally 2 cylindrical
counterbores 8H7 depth
1.9 - 2 mm
1) Screw M4
2) Centering element
surfaceCONTROL 3D SC3200 / SC3210
(1)
C-C
A
0.03
C 208
Fig. 7 Dimensional drawing mounting bores,
dimensions in mm, not to scale
(3)
Fig. 6 Mounting example with direct fastening
( )
2x ø8 H7
+0.015
0
±0.05
(2)
min 10
Direct fastening:
0.03 A
- 3 bores ø 5.5
with centering element:
- additionally 2
cylindrical counter-
bores 8H7 depth
1.9 - 2 mm
3) Screw M5
C
Page 13
