Operation
6.4.4

Exposure

The projected fringe pattern should be well recognizable over the entire measurement plane (not too light/dark) in order
to avoid overdriven and underdriven pixels.

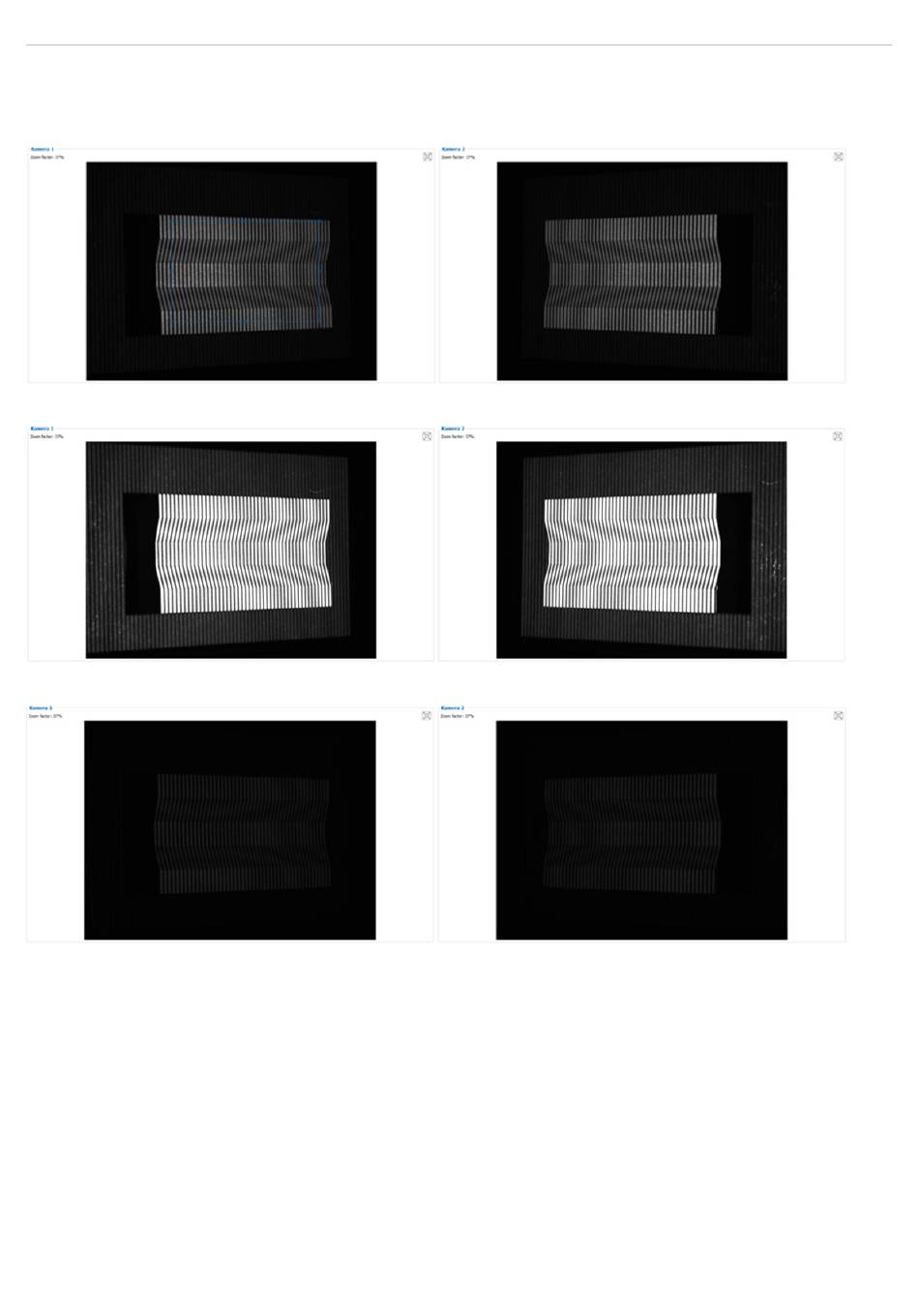

Fig. 24 Result of camera images with good exposure
Fig. 25 Camera image, measuring object overexposed
Fig. 26 Camera image, measuring object underexposed
6.5

Temperature

The sensor issues a warning when the internal temperature exceeds 60 °C.
The sensor refuses measurements when the internal temperature exceeds 63 °C.
The sensors turns off when the internal temperature exceeds 65 °C.
surfaceCONTROL 3D SC3200 / SC3210 Page 25
