Installation and Mounting
5.2.3

Gigabit Ethernet Connection

The Ethernet connection is the standard connection to the PC. The sensor supports transmission at 1 Gbit/s.
An 8-pin X-coded M12 socket is installed in the housing.
RJ-45 connector
Color of stranded
Pin no.
hook-up wire
1 White (orange)
2 Orange
3 White (green)
4 Blue
5 White (blue)
6 Green
7 White (brown)
8 Brown
1
View on pin side of male cable
connector

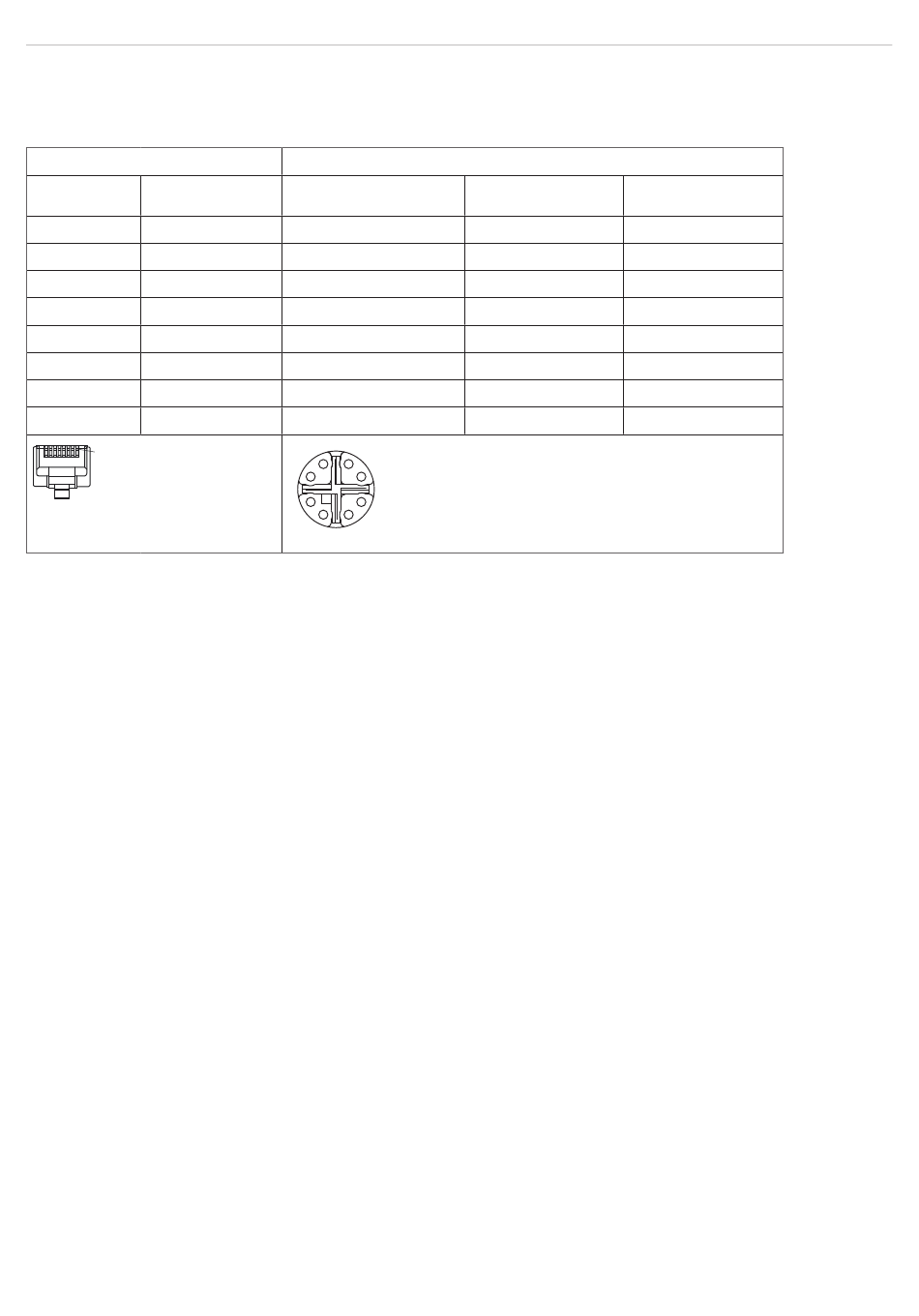

Fig. 12 Pin assignment of Gigabit Ethernet connection according to IEC 61076-2-109
For use with an Ethernet connection, we recommend the SCR3000X-x Gigabit Ethernet connection cable; cable length x
in meters. Characteristics: 4 x 2 x 0.14 mm²; shielded.
Due to the high data rate, we recommend a high-quality Ethernet PC plug-in card, for example, Intel-Pro/1000 PT. Pref-
erably the sensors should be connected directly to the network connection or using a high-quality switch. A hub would
cause massive data collisions and may not be used. On the PC, one or more network cards should always be intended
solely for the sensors.
Operating the sensors via Ethernet requires no additional driver installation. However, the network settings must be spec-
ified correctly:
- The sensor supports DHCP . This setting is enabled by default and has priority over searching in the link local network.
- A fixed IP address can be assigned.
- Various network settings (e.g. firewall or packet filters) can interfere with communications with the sensor.
- The sensor supports jumbo frames up to 9014 bytes/packet; however, in that case all network components must also
support jumbo frames up to that size.
surfaceCONTROL 3D SC3200 / SC3210
8-pin X-coded socket (housing side)
Pin no.
1
2
3
8
7
4
5
6
4 5
3 6
2 7
1 8 View: Socket on housing side
100BaseTX 1000BaseTX
Tx+ D1+
Tx- D1-
Rx+ D2+
D3+
D3-
Rx- D2-
D4+
D4-
