Operation

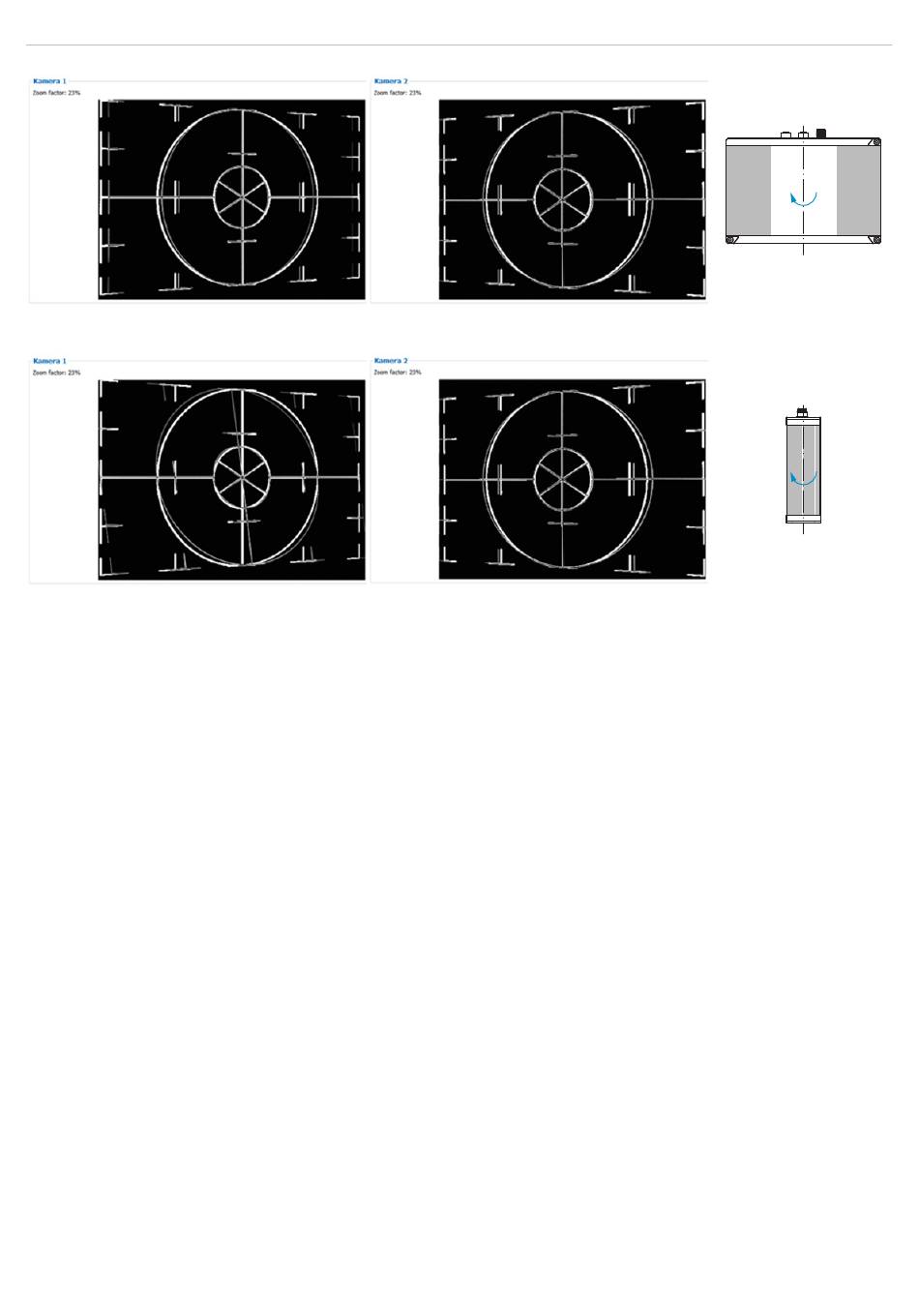

Fig. 22 Lateral tilt (plane angle x: 7° tilted around the y-axis), distance correct
Fig. 23 Lateral tilt (plane angle y: 16° tilted around the x-axis), distance correct
Further details can be found in the respective operating instructions of the software provided by Micro-Epsilon or in the
GenICam parameter description, see
Chap. A
3.
surfaceCONTROL 3D SC3200 / SC3210
Page 24
