Summary of Contents for Honeywell Home Tuxedo Touch TUXWIFIS

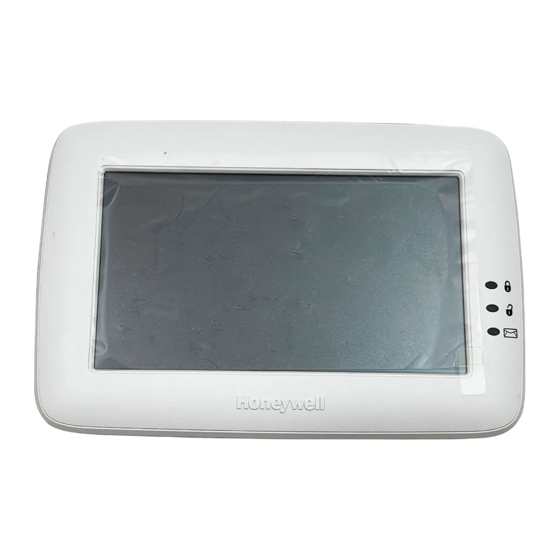

- Page 1 Tuxedo Touch™ Wi-Fi® Models TUXWIFIS and TUXWIFIW Home Automation System Installation and Setup Guide 800-16571V2C 8/15 Rev. C TUXWIFIS/TUXWIFIW...
- Page 2 Z-Wave devices are identified by the Z-Wave logo and can be purchased from your local retailer. Z-Wave ® is a registered trademark Sigma Designs, Inc. and/or its subsidiaries.
-
Page 3: Table Of Contents
Table of Contents ABOUT THE SYSTEM ........1 SYSTEM SETUP ..........21 Tuxedo Features ........... 1 Quick Programming ..........21 Control Panel Compatibility ......... 2 Quick Programming Menu’s ........21 Front Panel LED’s ............3 CS Setup (Central Station) ........22 ECP Address ............. - Page 4 Residential System Notes ........50 INTEGRATING TOTAL CONNECT REMOTE User Related Notes ..........50 SERVICES ............48 APPENDIX B: Z-WAVE NOTES ..... 51 Enabling Devices for Total Connect ...... 48 Z-Wave Compatible Devices ......... 51 Controlling Automation (Z-Wave) Devices Remotely 48 APPENDIX C: WIRELESS RANGE ....
-
Page 5: About The System
TUXEDO TOUCH WI-FI INSTALLATION & SETUP GUIDE About the System This guide provides information to install and set-up Resideo’s Tuxedo Touch™ Wi-Fi Home Automation and Security ® System (herein referred to as Tuxedo). Tuxedo is an Advanced User Interface (AUI) device, which combines wireless home automation and security. -
Page 6: Control Panel Compatibility
TUXEDO TOUCH WI-FI INSTALLATION & SETUP GUIDE Feature Description Switch from normal view to mobile view depending on the type of device used with the Tuxedo. Switchable Refer to Remote Access section for details. Themes Software upgrades may be available for this product. To ensure you have the latest version, check Software the version in your system (see the Software Upgrades section for details). -
Page 7: Front Panel Led's
TUXEDO TOUCH WI-FI INSTALLATION & SETUP GUIDE Front Panel LED’s The Tuxedo keypad has three LEDs as follows: SD/SDHC CARD Slot ARMED (RED) LED ON – System is armed. OFF – System is not armed. READY (GREEN) LED ON – System is disarmed and ready to arm. OFF –... -
Page 8: Mounting Using A Center Securing Screw
TUXEDO TOUCH WI-FI INSTALLATION & SETUP GUIDE Mounting Using a Center Securing Screw NOTE: Applies to European Installations. INSTALL CENTER CASE 1. Detach case front by removing the two SECURING SCREW FRONT bottom screws. Gently pull up using a screwdriver if necessary and pry apart. Lift off cover. -
Page 9: Supplementary Power Supply Connections
TUXEDO TOUCH WI-FI INSTALLATION & SETUP GUIDE Supplementary Power Supply Connections Common Ground IMPORTANT NOTES: • If an auxiliary power supply is used, you MUST connect a common ground as shown above. • When Tuxedo is powered from an auxiliary power supply, always apply power to the control panel first and then to Tuxedo. -
Page 10: Commercial Control Panels (Non-Turbo)
TUXEDO TOUCH WI-FI INSTALLATION & SETUP GUIDE Commercial Control Panels (Non-Turbo) Commercial Control Panels consist of the VISTA-128BP, VISTA-250BP and VISTA-128FBP, VISTA-250FBP and 32FBP or equivalent. • Addresses 1-2, and 3-30 may be used for older controls under revision 10, which supports three AUI’s. These addresses in the control panel are not defaulted for AUI type devices. -
Page 11: First Time Setup
TUXEDO TOUCH WI-FI INSTALLATION & SETUP GUIDE First Time Setup First Time Power Up (Keypad Initialization) After first time power up (or a keypad default), the Tuxedo steps through the following setup prompts. 1. Operational Mode Setup 5. User Setup “Important Operation Information”... -
Page 12: 2: Set Ecp Address/Ris Automation Address
TUXEDO TOUCH WI-FI INSTALLATION & SETUP GUIDE • The Chime mode functions in the Safe Mode, however, you do not have Voice (system status messages), Voice Chime (announcements) or Message capability (if set to default “Master”). Z-Wave Scenes do not function in Safe Mode. •... - Page 13 TUXEDO TOUCH WI-FI INSTALLATION & SETUP GUIDE • If using Remote Services, set the RIS Automation Address to the appropriate RIS address used for Total Connect. Only select the Primary RIS Device checkbox if this is the primary device to be enabled and Total Connect will not incorporated.
-
Page 14: 3: Resideo End User License Agreement (Eula)
TUXEDO TOUCH WI-FI INSTALLATION & SETUP GUIDE 3: Resideo End User License Agreement (EULA) The EULA displays and gives you the option to “Accept” or “Remind Me After 2 Hours.” (NOTE: The Tuxedo requires an acceptance acknowledgement. If not accepted by the third attempt, skipping EULA is no longer an option, only “ACCEPT”... -
Page 15: 8: Voice Tutorial And Setup
TUXEDO TOUCH WI-FI INSTALLATION & SETUP GUIDE 8: Voice Tutorial and Setup Pressing Accept at the “Voice Disclaimer” prompt initiate a training video. After the training video is complete, the keypad will walk you through three training learning objectives. These objectives are designed to introduce you to the Voice feature. -
Page 16: Home Page
TUXEDO TOUCH WI-FI INSTALLATION & SETUP GUIDE Home Page Resideo Control Panel Status Banner Setup, Slide show setup, installation videos Emergency Camera Screen Shortcut Status: Network IP Address, Z-Wave Enabled, Control Panel AC power present, Wi-Fi signal strength, and SD card present Name Description Displays current panels Time and Date. -
Page 17: Setup Screen
TUXEDO TOUCH WI-FI INSTALLATION & SETUP GUIDE Setup Screen Pressing SETUP from the Home Page reveals the following options: Name Description Move the Brightness/Volume slide bar up or down to increase or decrease settings. Brightness/Volume Pressing back without saving will present a new window that displays YES saves the change or NO to discard the changes. -
Page 18: Display & Audio Setup
TUXEDO TOUCH WI-FI INSTALLATION & SETUP GUIDE The “Home” screen displays the Available Software Update icon, representing there is an update available. 1. Press Available Software Update 2. Press Software Download to view the current software version, the new version, release date and release notes. 3. -
Page 19: Temperature Unit
TUXEDO TOUCH WI-FI INSTALLATION & SETUP GUIDE Temperature Unit The temperature units for the weather display on Tuxedo’s home screen can be switched between Fahrenheit and Celsius. Setup > Disp & Audio Setup and enter an authorized code. Select the temperature scale, Celsius or Fahrenheit. -
Page 20: Webserver Access
TUXEDO TOUCH WI-FI INSTALLATION & SETUP GUIDE Webserver Access Supported Browsers System Requirements Recommended Browser IE 8.0 and above, Chrome 30 - 42, Safari 5.0.2 & Windows XP SP2 and SP3, Win7, Win8 above, Mozilla 26 and above. Android Mobile ICS4.0 and above Default browser (iPhone Version iOS4, iPad®... -
Page 21: Web Server Ip Address Access
TUXEDO TOUCH WI-FI INSTALLATION & SETUP GUIDE Web Server IP Address Access The Home screen reveals the connected IP address in the bottom left hand corner. Any device with a browser connected to the same network as the Tuxedo can access the webserver. This does not require authentication (Username and Password). -
Page 22: Local Web Server Url Access
TUXEDO TOUCH WI-FI INSTALLATION & SETUP GUIDE Local Web Server URL Access In cases where the Tuxedo is set for DHCP, there is the possibility the IP address can change upon a router reset. This can block the users attempt to access the Web Server locally. To correct this problem, navigate to the “Address Box” of the browser and type in HTTP://Tux.MyLanConnect.com. -
Page 23: User Email Setup
TUXEDO TOUCH WI-FI INSTALLATION & SETUP GUIDE Email notifications allow you to set up email accounts and receive email notifications when one or more system events occur. Users (and/or the installer) can receive email notifications when one or more selected system events or conditions occur NOTE: Email notification requires that the user has an active email address and note the disclaimer at the bottom of the page. -
Page 24: Defining Event Types
TUXEDO TOUCH WI-FI INSTALLATION & SETUP GUIDE Defining Event Types To receive email notification when specific events occur, the “event type” must be defined. Scenes can be set to trigger based on the status of these settings. From “System Events Notification” screen, set the following event types: Event Definition (Normal mode;... -
Page 25: System Setup
TUXEDO TOUCH WI-FI INSTALLATION & SETUP GUIDE System Setup The System menu is compromised of the following options: Menu Description Walks through the initial setup (same as first time power up or Controller Initial Set keypad default). See the “First Time Setup” section. Installer menu programming (vs. -
Page 26: Cs Setup (Central Station)
TUXEDO TOUCH WI-FI INSTALLATION & SETUP GUIDE CS Setup (Central Station) Menu Programming Locations (Press Setup > System Setup > CS Setup ; enter the Installer Code) Configure the Tuxedo ECP and RIS address (see the “2: Set ECP Address/RIS Automation Address”... -
Page 27: User Codes
TUXEDO TOUCH WI-FI INSTALLATION & SETUP GUIDE NOTES: • A Yes response is recommended. • Getting time from the internet feature is only supported in Automation Mode. • After each selection, the window closes automatically and the selection is displayed. User Codes Each user must be assigned a name with a corresponding 4-digit user code in order to gain access to various features and functions. -
Page 28: Lcd Display Test
TUXEDO TOUCH WI-FI INSTALLATION & SETUP GUIDE How to Add an Existing User to a Second Tuxedo After adding a user to the first Tuxedo, the same user can be added to a second Tuxedo. From the second Tuxedo go to User Setup and enter the same user name and same user code (refer to “How to Add a User”... -
Page 29: Calibration
TUXEDO TOUCH WI-FI INSTALLATION & SETUP GUIDE Calibration Press Calibration and using a stylus, follow the screen directions by pressing a series of crosshairs (+) and boxes () on the screen until done. If the test was successful, press OK, the screen returns to the Keypad Test screen. A pop-up message displays Touch screen calibration…... -
Page 30: Keypad Reset
TUXEDO TOUCH WI-FI INSTALLATION & SETUP GUIDE Keypad Reset Press the Keypad Reset ; the message is displayed “Confirmation Are you sure you want to reset?” Select Yes or No. NOTE: This is not a factory default, but simply an option to reboot the keypad. -
Page 31: Power Mode Setup
TUXEDO TOUCH WI-FI INSTALLATION & SETUP GUIDE Power Mode Setup Power Mode allows you to reduce power consumption in the event of a system trouble such as AC Loss or Panel Low Battery. Select Power Save Mode to enable; then choose Turn-off Network, or Override Display Settings. Press Apply to save settings. -
Page 32: Camera Options And Setup
TUXEDO TOUCH WI-FI INSTALLATION & SETUP GUIDE Camera Options and Setup The access the camera setupage press Multimedia > Camera View/Record > Camera Setup NOTES: • Keypad must be connected to same LAN or Wi-Fi network as the cameras, before they can connect. •... -
Page 33: Add/Edit Options
TUXEDO TOUCH WI-FI INSTALLATION & SETUP GUIDE Add/Edit Options If the camera information is not discovered automatically, press Add to enter information on the “Add New Camera” screen. Name Description NOTE: Must be alphanumeric only, no special characters (including space) are compatible. Default is the Camera Model (abbreviated) X, where X= The Camera Name NOTE: Maximum # of cameras supported. -
Page 34: Advanced Camera Settings
TUXEDO TOUCH WI-FI INSTALLATION & SETUP GUIDE press Camera WIFI to enter the camera wireless settings information from your router. The screen displays: “ INFO: Camera Wi-Fi setup is applicable only for discovered cameras.” Enter the appropriate wireless information: • SSID: ANY •... -
Page 35: Removing Cameras
TUXEDO TOUCH WI-FI INSTALLATION & SETUP GUIDE Others Feature Description and Options Reset to Default Factory defaults the Camera A pop window displays: “Do you want to reset the Camera” select Yes or No Restart Camera Provides a reboot of the camera Camera functionality is supplementary only and has not been evaluated for agency compliant installations. -
Page 36: Manual Video Recording
TUXEDO TOUCH WI-FI INSTALLATION & SETUP GUIDE 1. Press Camera View/Record > Camera Setup > Camera Settings . To change the settings for resolution, fixed quality and frame rate, see the Camera Add/Edit section. NOTES: • The recommended frame rate is eight frames per sec, when setting the resolution to 640 x 480. •... -
Page 37: Video Playback
TUXEDO TOUCH WI-FI INSTALLATION & SETUP GUIDE Video Playback A Video Converter is required to convert videos for proper playback on the Tuxedo. Use an Internet search engine to locate and download a Video Converter, then follow the steps in the Video Converter Instructions (provided in the carton). -
Page 38: Recording A Message
TUXEDO TOUCH WI-FI INSTALLATION & SETUP GUIDE Recording a Message 1. Press RECORD and record your message while staying within approximately one foot of the keypad and speaking at a normal voice volume. As you are recording your message, the remaining time counter counts down to indicate the total remaining time available and a “Recording New Memo…”... -
Page 39: Z-Wave Setup
TUXEDO TOUCH WI-FI INSTALLATION & SETUP GUIDE Z-Wave Setup Before a Z-Wave device will work in the home control network, it must be added (also called included) into the network. View the Programming of Z-Wave Devices training video and follow the instructions below to add and control devices in a home control network. -
Page 40: Z-Wave Device Management Buttons Defined
TUXEDO TOUCH WI-FI INSTALLATION & SETUP GUIDE Z-Wave Device Management Buttons Defined This icon is for including or adding a new device to the network. NOTE: Refer to the devices Add Device installation instructions for the Add and Remove procedure. This icon is for removing, or excluding, a device from the devices current network. - Page 41 TUXEDO TOUCH WI-FI INSTALLATION & SETUP GUIDE will not enroll, try adding a device in between the keypad and the lock. If that does not work, bring the lock closer to the keypad to enroll. Follow the on-screen messages until “Device added successfully.” To verify activation on the Tuxedo, click Back;...
-
Page 42: Z-Wave Device Setup
TUXEDO TOUCH WI-FI INSTALLATION & SETUP GUIDE Intouch Thermostats will not send status during a low battery condition. • Resideo is not responsible for property damages due to improper wiring and setting of the thermostat modes. Z-Wave Device Setup Changing the Name To change the Z-Wave device icons, do the following: Press Automation >... -
Page 43: Association Details
TUXEDO TOUCH WI-FI INSTALLATION & SETUP GUIDE Association Details Each Z-Wave enabled device has a maximum number of secondary controllers, in which it has the ability to send updates. Example, a thermostat may have the ability to send up to five additional Tuxedo’s on the same network. However, other manufacturers may not have that ability (as depicted in the table below). -
Page 44: Creating Scenes
TUXEDO TOUCH WI-FI INSTALLATION & SETUP GUIDE Creating Scenes The system can automatically activate devices when certain triggered events occur. When a programmed trigger/condition occurs, the defined device(s) activates. The programming of these triggers and actions is called Scenes. A scene consists of a trigger, an optional condition, and up to five actions. Up to 30 local (20 more using Total Connect Remote Services) scenes can be defined. -
Page 45: Defining Scenes
TUXEDO TOUCH WI-FI INSTALLATION & SETUP GUIDE Defining Scenes The system can automatically activate various devices when certain events occur based on predefined Scenes. Defines the event that triggers the programmed action(s). Trigger Triggers include the following categories: Time Security Thermostat Door Garage Door... - Page 46 TUXEDO TOUCH WI-FI INSTALLATION & SETUP GUIDE Defines the event that triggers the programmed action. Trigger Triggers include the following categories: Choose Time the action should begin: Repeated (choose the days of the week) Once (enter the date) Time Sunrise/Sunset (region must be set in weather and internet is required) By Clock (set the time the scene should begin) Critical Event (See the Critical Events section) Choose Security upon which the action begin:...
-
Page 47: Scene Setup Options
TUXEDO TOUCH WI-FI INSTALLATION & SETUP GUIDE Scene Setup Options fines the desired device action(s) when the trigger event occurs. Actions include the following categories: Disarm Away Night (Arms Instant) Disarm with Code Security NOTE: A valid user code is required for the system to p Enter the code at the prompt. - Page 48 TUXEDO TOUCH WI-FI INSTALLATION & SETUP GUIDE Voice Input Command Review the Tuxedo Touch Voice Command Training Video before the initial trigger assignment. The Voice Input Command is configured in Scene Setup. Voice Commands are accessed by pressing Voice Input Command, which provides a drop down window revealing the commands on the table below: Available Commands Bed Time...
-
Page 49: Detailed Scene Configuration
TUXEDO TOUCH WI-FI INSTALLATION & SETUP GUIDE Detailed Scene Configuration Scenes must have at least one trigger, 1 action (up to 5) and the event to trigger. The Condition section is optional. Set the TIME: Press Trigger/Condition > Add > TIME > Set the occurrence. Time If ONCE, Enter Date;... -
Page 50: Room Setup
TUXEDO TOUCH WI-FI INSTALLATION & SETUP GUIDE Group Setup A group is a defined collection of the same type of Z-Wave devices (such as only light modules, or only door locks, etc.) that can be used in scenes. When used in a scene and the scene activates, all devices assigned to that group activate. Up to 20 groups can be created with up to five of the same type devices in each group, such as five door locks, etc. -
Page 51: Synchronizing Device Names
TUXEDO TOUCH WI-FI INSTALLATION & SETUP GUIDE NOTE: The message “Please remove all Z-wave devices from network first” appears if Z-Wave devices are enrolled. If no Z-Wave devices exist, a confirmation will display “Change to Secondary Controller? Note: Total Connect feature will be unavailable in secondary controller mode.” Select Yes to change this keypad to a Secondary Controller. -
Page 52: Integrating Total Connect Remote Services
TUXEDO TOUCH WI-FI INSTALLATION & SETUP GUIDE Integrating Total Connect Remote Services The Tuxedo supports Remote Services for controlling Z-Wave devices and scenes remotely from an associated Total Connect account. LAN or Wi-Fi MUST be enabled for proper integration with Total Connect. Synchronizing is required before the enabled devices will display in Total Connect. -
Page 53: Viewing And Controlling Total Connect Scenes From Tuxedo
TUXEDO TOUCH WI-FI INSTALLATION & SETUP GUIDE Viewing and Controlling Total Connect Scenes from Tuxedo Use Scenes to display and control scenes that have been created in Total Connect. From the “Home” screen, press Automation > Scene Setup > Remote. The screen displays a list of scenes created in Total Connect. -
Page 54: Appendix A: Important Notes
TUXEDO TOUCH WI-FI INSTALLATION & SETUP GUIDE Appendix A: Important Notes For additional troubleshooting procedures, refer to the Control Panel Installation Guide. General Notes • You may check to see whether the Chime Mode is ON or OFF by viewing the keypad Operating Modes screen as described in the “Operating Modes”... -
Page 55: Appendix B: Z-Wave Notes
TUXEDO TOUCH WI-FI INSTALLATION & SETUP GUIDE Appendix B: Z-Wave Notes Z-Wave Compatible Devices Z-Wave devices may vary; follow the instructions in the User’s Guide for your specific device when adding and deleting devices into the Z-Wave network. Visit www.resideo.com or http://www.tuxedotouchtoolkit.com/ for a complete list of compatible Z-Wave devices. Refer to the document titled “Z-Wave Compatibility Chart.”... -
Page 56: Appendix C: Wireless Range
TUXEDO TOUCH WI-FI INSTALLATION & SETUP GUIDE Appendix C: Wireless Range This device complies with the Z-Wave® standard of open-air, line of sight transmission distances of 100 feet. Actual performance in a home depends on the number of walls between the controller and the destination device, the type of construction and the number of Z-Wave enabled devices installed in the control network. -
Page 57: Navigation Icons
TUXEDO TOUCH WI-FI INSTALLATION & SETUP GUIDE Navigation Icons To aid in the navigation through the Tuxedo touch-screens, a set of user-friendly icons has been provided. The appearance and function are described below. ICON ICON TITLE FUNCTION “Product/Training Accesses the “Product Introduction and Training Videos.” Videos”... -
Page 58: Specifications
TUXEDO TOUCH WI-FI INSTALLATION & SETUP GUIDE Specifications Mechanical Specifications: Operating Environment: Width: 8.23 inches (209.04mm) Humidity : 93% RH, non- condensing Height: 5.59 inches (141.99mm) Temperature: Operating : 14˚F to 131˚F / -10˚C to 55˚C (UL tested 32˚- Depth:1.13 inches (28.70mm) 120˚F / 0 to 49˚C) Shipping / Storage: -40˚F to 158˚F / -40˚C to 70˚C Electrical Specifications:... - Page 59 TUXEDO TOUCH WI-FI INSTALLATION & SETUP GUIDE NOTES...
- Page 60 TUXEDO TOUCH WI-FI INSTALLATION & SETUP GUIDE NOTES...
- Page 61 TUXEDO TOUCH WI-FI INSTALLATION & SETUP GUIDE NOTES...
- Page 62 TUXEDO TOUCH WI-FI INSTALLATION & SETUP GUIDE NOTES...
- Page 63 FEDERAL COMMUNICATIONS COMMISSION (FCC) & INDUSTRY CANADA (IC) STATEMENTS The user shall not make any changes or modifications to the equipment unless authorized by the Installation Instructions or User's Manual. Unauthorized changes or modifications could void the user's authority to operate the equipment.
- Page 64 P.O. Box 9040, Melville, NY 11747 www.resideo.com © 2020 Resideo Technologies, Inc. All rights reserved. Ê800-16571V2C[Š The Honeywell Home Trademark is used under license from Honeywell International Inc. This product is manufactured by Resideo Technologies, Inc. 800-16571V2C 8/15 Rev. C and its affiliates.
