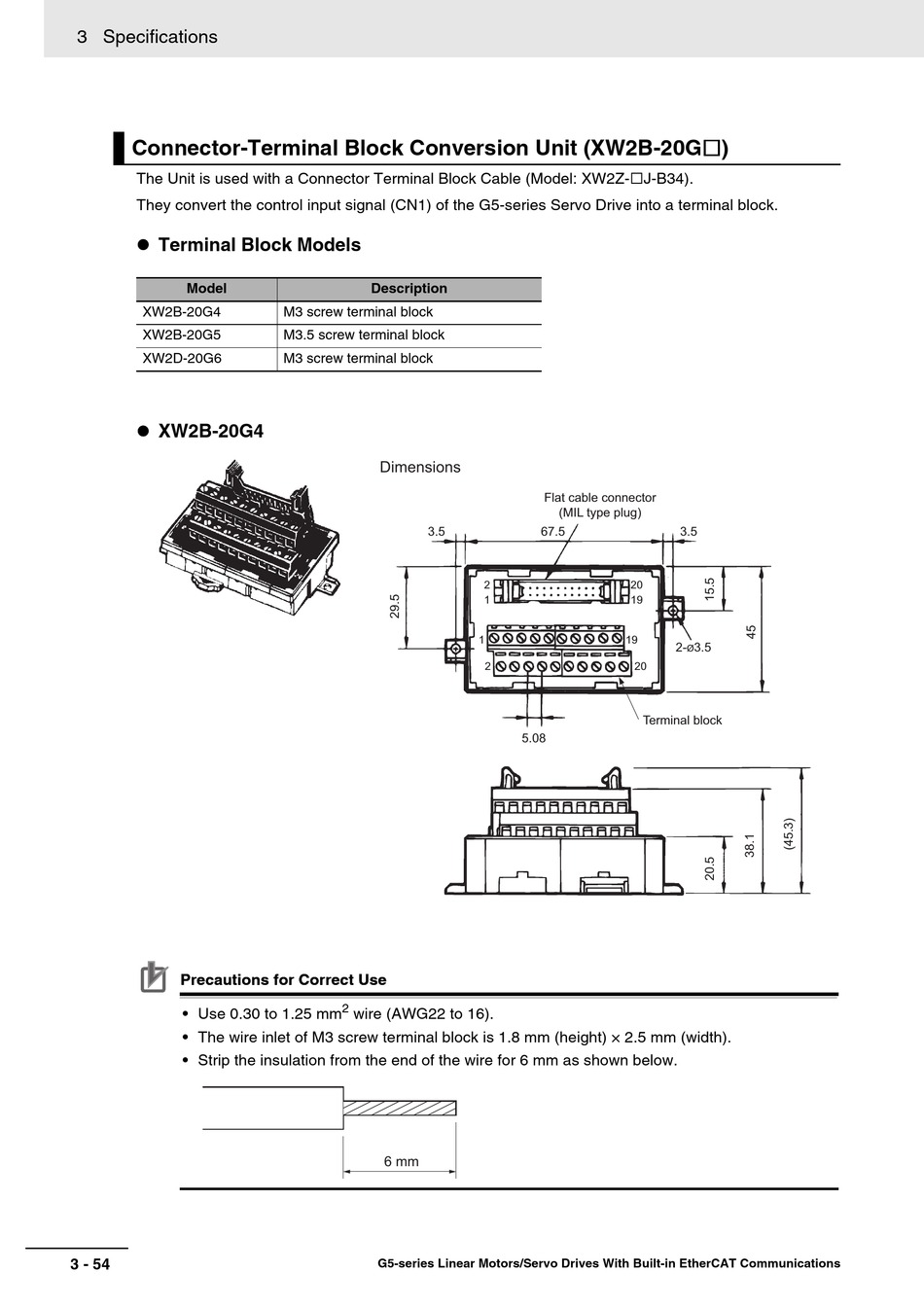

Omron R88L-EC Series User Manual page 132

3 Specifications
Connector-Terminal Block Conversion Unit (XW2B-20G)
The Unit is used with a Connector Terminal Block Cable (Model: XW2Z-J-B34).
They convert the control input signal (CN1) of the G5-series Servo Drive into a terminal block.
 Terminal Block Models
Model
XW2B-20G4
XW2B-20G5
XW2D-20G6
 XW2B-20G4
Precautions for Correct Use Precautions for Correct Use
• Use 0.30 to 1.25 mm
• The wire inlet of M3 screw terminal block is 1.8 mm (height) × 2.5 mm (width).
• Strip the insulation from the end of the wire for 6 mm as shown below.
3 - 54
Description
M3 screw terminal block
M3.5 screw terminal block
M3 screw terminal block
Dimensions
3.5
2
wire (AWG22 to 16).
6 mm
G5-series Linear Motors/Servo Drives With Built-in EtherCAT Communications
Flat cable connector
(MIL type plug)
67.5
2 20
1 19
1 19
2 20
Terminal block
5.08
3.5
2- 3.5
Ø
