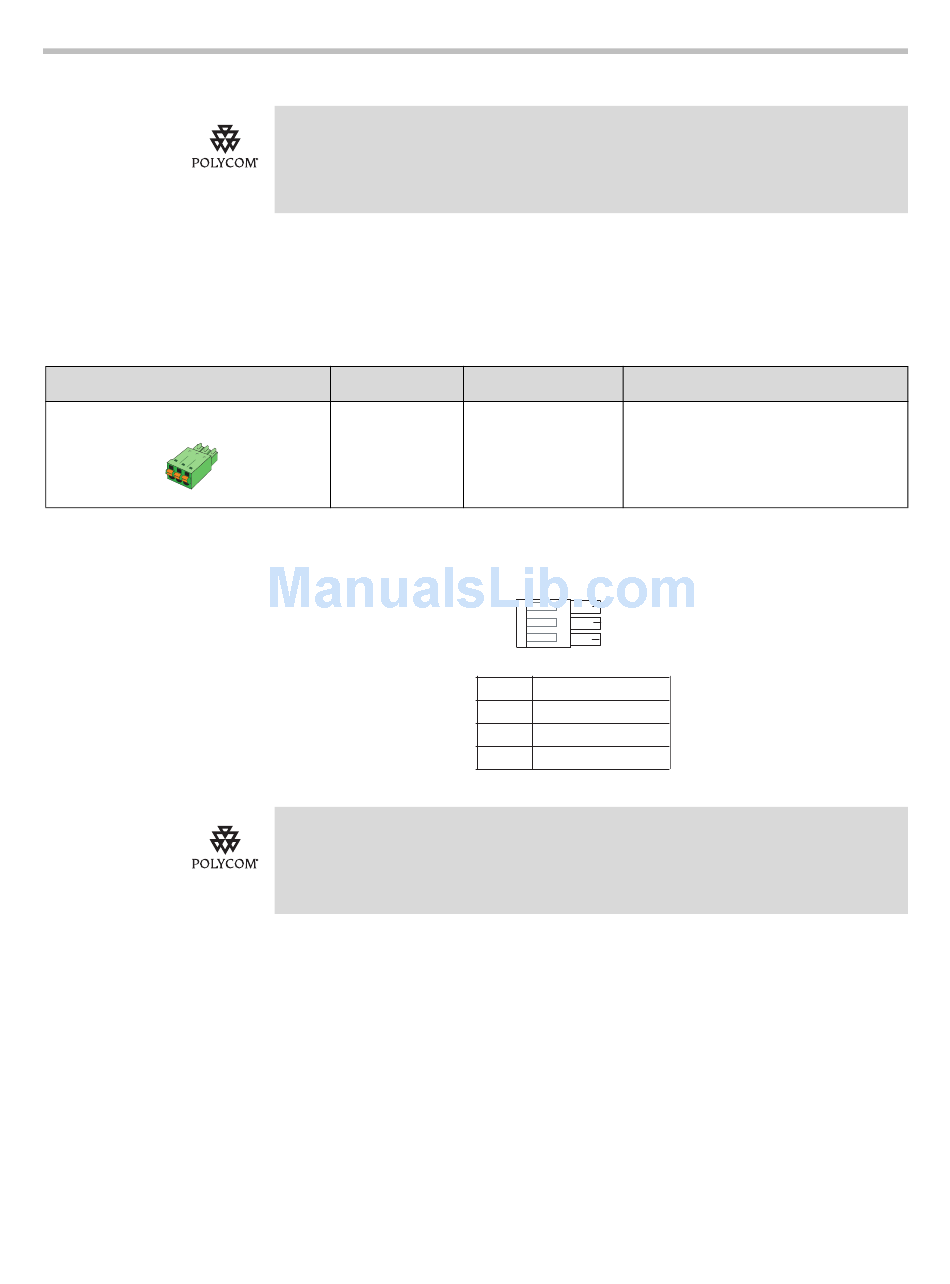

IR Connector

Description
3-pin Phoenix connector
2 - 40
Drawings and part numbers are provided for reference only. Polycom claims no responsibility
or liability for the quality, performance, or reliability of cables based on these reference
drawings, other than cables provided by Polycom. Contact your Polycom distributor or
Polycom Custom/Vertical Products to order cables that meet the appropriate manufacturing
tolerances, quality, and performance parameters for your application.
This connector connects the IR sensor input on a VSX 8000 to an external IR
receiver, such as Xantech models 780-80, 780-90, 480-00, and 490-90.
Used With
VSX 8000
Drawings and part numbers are provided for reference only. Polycom claims no responsibility
or liability for the quality, performance, or reliability of cables based on these reference
drawings, other than cables provided by Polycom. Contact your Polycom distributor or
Polycom Custom/Vertical Products to order cables that meet the appropriate manufacturing
tolerances, quality, and performance parameters for your application.
Part Number Length
1515-21516-003 —
Phoenix part
number: 1952270
Top View
1
2
3
PIN #
1 +12 V
2 Ground
3 IR signal
