Cables

Network Cables

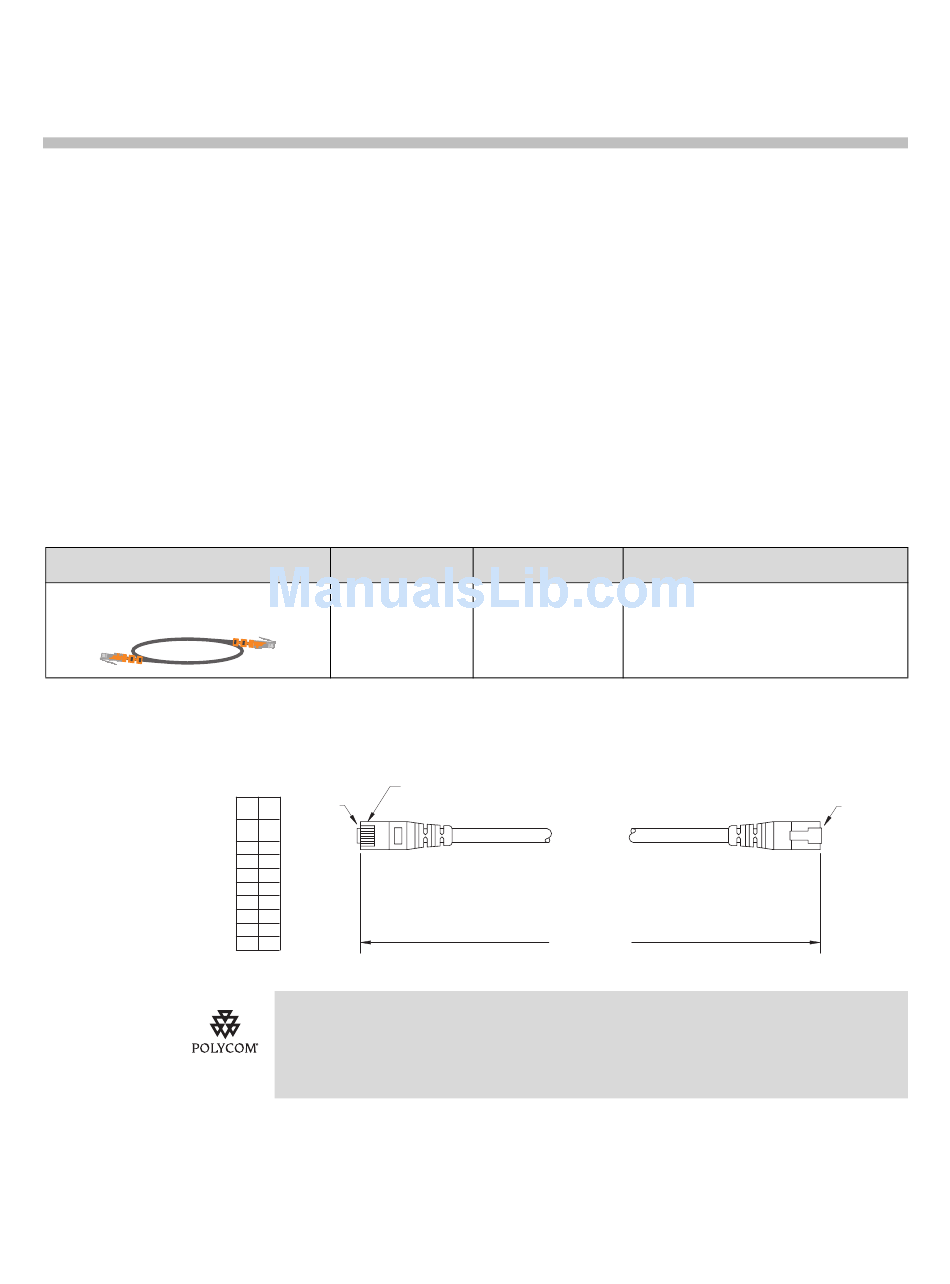

LAN Cable

Description
Orange RJ-45 connectors on both
ends
This cable connects a VSX system to the LAN.
Used With
All
VSX Systems
CONN. RJ-45
( x2 )
PIN 8
P1 P2
PIN PIN
P1
# #
1 1
2 2
3 3
4 4
5 5
6 6
7 7
8 8
Drawings and part numbers are provided for reference only. Polycom claims no responsibility
or liability for the quality, performance, or reliability of cables based on these reference
drawings, other than cables provided by Polycom. Contact your Polycom distributor or
Polycom Custom/Vertical Products to order cables that meet the appropriate manufacturing
tolerances, quality, and performance parameters for your application.
Part Number Length
2457-08343-001 Shipped Length: 12 ft (3.6 m)
Maximum Approved Length: 100 ft
(30 m)
12 FEET +/- 3"
2
PIN 8
P2
2 - 1
