Integrator's Reference Manual for the VSX Series

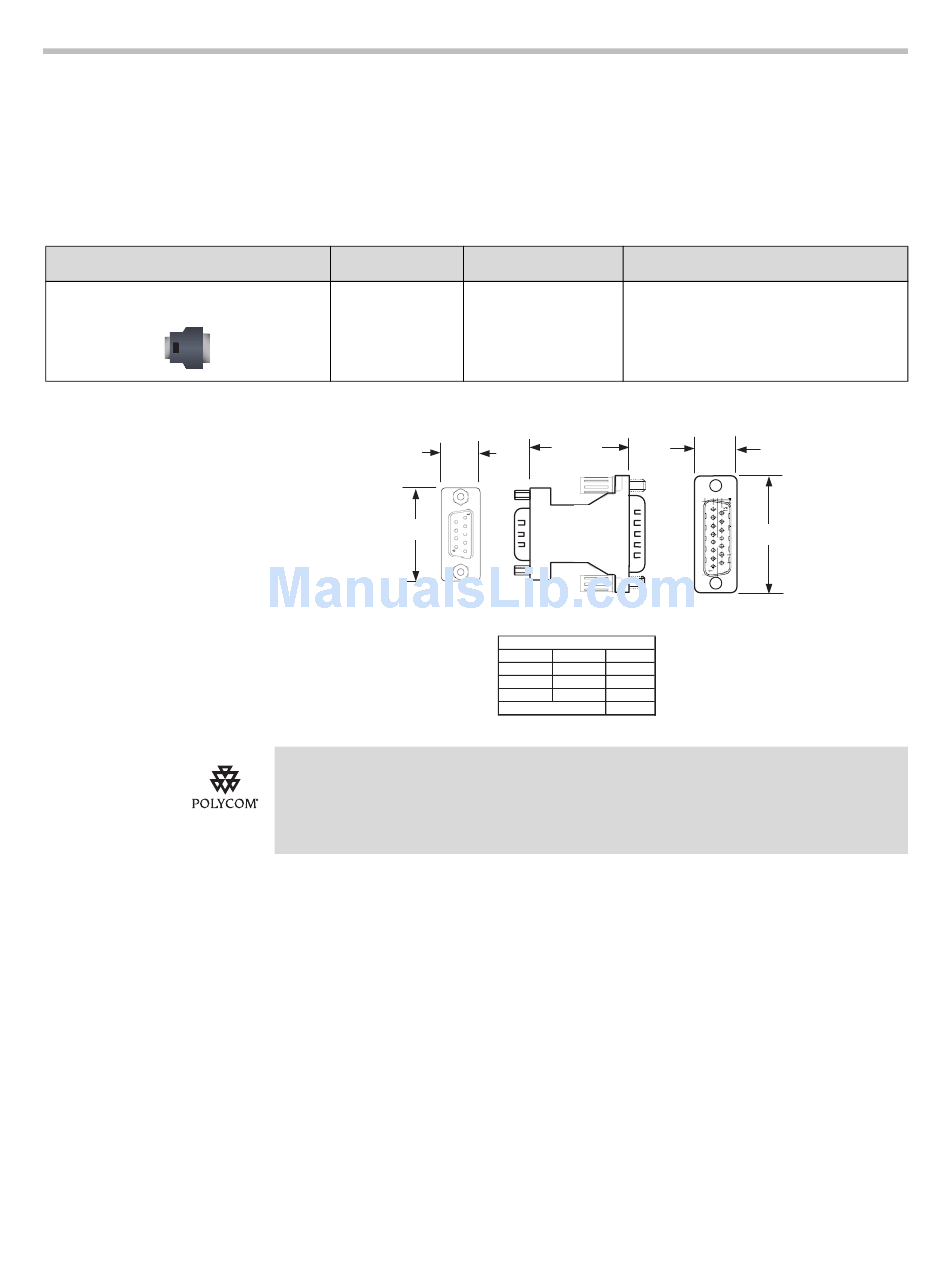

RS-232 Adapter

Description
DB-15 to DB-9
2 - 20
This adapter is included with the VSX 7000e and VSX 8000 and is used to
convert the primary camera control input port (DB-15) to a DB-9 for use in
connecting the control port of non-Polycom cameras to the system as the main
camera. This does not carry any IR signals to the system.
Used With
VSX 7000e
VSX 8000
15.0
33.3
9-PIN MALE
D-SUB
Drawings and part numbers are provided for reference only. Polycom claims no responsibility
or liability for the quality, performance, or reliability of cables based on these reference
drawings, other than cables provided by Polycom. Contact your Polycom distributor or
Polycom Custom/Vertical Products to order cables that meet the appropriate manufacturing
tolerances, quality, and performance parameters for your application.
Part Number Length
2457-21930-001 —
40-45MM
CONNECTION TABLE
9-PIN 15-PIN SIGNAL
2 7 RXD/TXD
3 14 TXD/RXD
5 12 GND
ALL OTHERS N/C N/A
15.0
41.6
15-PIN MALE
D-SUB
