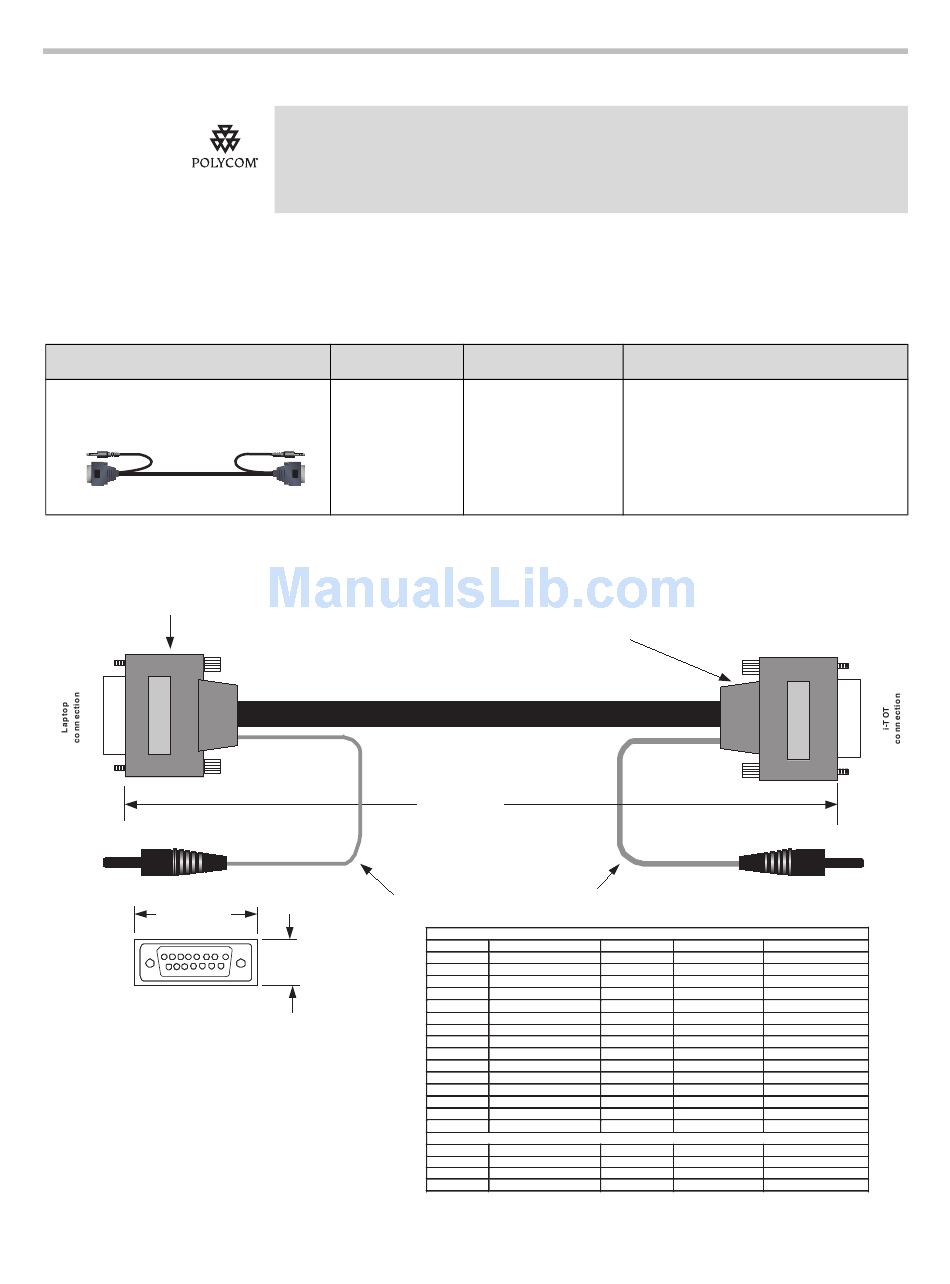

ImageShare II to Computer Cable

Description
HD-15 and stereo jack connectors
on both ends
15 Pin High Density
D-Sub Connector
Male with overmold
3.5mm phono plug
(2X34.0)
END VIEW OF BOTH 15 PIN HD D-SUB CONNECTORS
Drawings and part numbers are provided for reference only. Polycom claims no responsibility
or liability for the quality, performance, or reliability of cables based on these reference
drawings, other than cables provided by Polycom. Contact your Polycom distributor or
Polycom Custom/Vertical Products to order cables that meet the appropriate manufacturing
tolerances, quality, and performance parameters for your application.
This cable connects a Polycom ImageShare™ II to a computer.
Used With
VSX 7000e
VSX 8000
915 +/- 25 MM
wire length 610 +/- 13 MM
HD15 -M
(2X17.3)
10
11
12
13
14
15
TIP
RING
SLEEVE
SLEEVE
Part Number Length
185-0020-01 Shipped Length: 3 ft (0.9 m)
15 Pin High Density
D-Sub Connector
Female with
overmold
wire length 153 +/- 8 MM
WIRE TABLE
SIGNAL NAME HD15 -F
1 RED 1
2 GREEN 2
3 BLUE 3
4 TOT -DETECT 4
5 GROUND 5
6 RED -SHIELD 6
7 GREEN -SHIELD 7
8 BLUE -SHIELD 8
9 N/C 9
SYNC -RETURN 10
N/C 11
SDA 12
H-SYNC 13
V-SYNC 14
SCL 15
3.5mm PLUG
LEFT -AUDIO TIP
RIGHT -AUDIO RING
OUTER SHIELD SLEEVE
OUTER SHIELD SLEEVE
Cables
3.5mm phono plug
WIRE TYPE WIRE COLOR
A RED CENTER
A GREEN CENTER
A BLUE CENTER
C ORANGE
C GREEN
A RED -SHIELD
A GREEN -SHIELD
A BLUE -SHIELD
N/C N/C
B BLACK -WHITE
N/C N/C
C BROWN
B BLUE
B RED
C YELLOW
A BLACK
A WHITE
A BLACK SHIELD
A WHITE SHIELD
2 - 39
