Display Events

User Code Level: 1 and 2 - During schedules only. 3 to 9 - Anytime.
Function: Allows you to review up to 200 past system events.
There are six event types:
Zone Activity - Zone alarms, troubles, and restorals.
Opening and Closing - Arming and disarming of the system.
User Code Changes - Adding, deleting, and changing user codes.
Schedule Changes - Adding, deleting, and changing schedules.
Door Access - Each door access function used at a keypad.
Supervisory - Problems with the system's hardware components.
The system's memory can hold a
maximum of 200 events for 45 days.
Any event older than 45 days is
cleared automatically by the system.
Also, once the full 200 events are
stored, any new event causes the
oldest event to be cleared.
Using the Display Events
1. Access the User Menu.
2. Press the COMMAND key
until DISPLAY EVENTS? displays. Press any SELECT key.
3. The keypad displays FRST LST PRT SRT. Select FRST
(first) to view the oldest to newest events. Select LST (last) to
view the newest to oldest events. If you select FIRST, use the
COMMAND key to scroll up through the events. If you select
LAST, use the ARROW key to scroll down through the events.
28
User Menu
Display Events
User Code Level: 1 and 2 - During schedules only. 3 to 9 - Anytime.
Function: Allows you to review up to 200 past system events.
There are six event types:
Zone Activity - Zone alarms, troubles, and restorals.
Opening and Closing - Arming and disarming of the system.
User Code Changes - Adding, deleting, and changing user codes.
Schedule Changes - Adding, deleting, and changing schedules.
Door Access - Each door access function used at a keypad.
Supervisory - Problems with the system's hardware components.
The system's memory can hold a
maximum of 200 events for 45 days.
Any event older than 45 days is
cleared automatically by the system.
Also, once the full 200 events are
stored, any new event causes the
oldest event to be cleared.
Using the Display Events
1. Access the User Menu.
2. Press the COMMAND key
until DISPLAY EVENTS? displays. Press any SELECT key.
3. The keypad displays FRST LST PRT SRT. Select FRST
(first) to view the oldest to newest events. Select LST (last) to
view the newest to oldest events. If you select FIRST, use the
COMMAND key to scroll up through the events. If you select
LAST, use the ARROW key to scroll down through the events.
28 User Menu

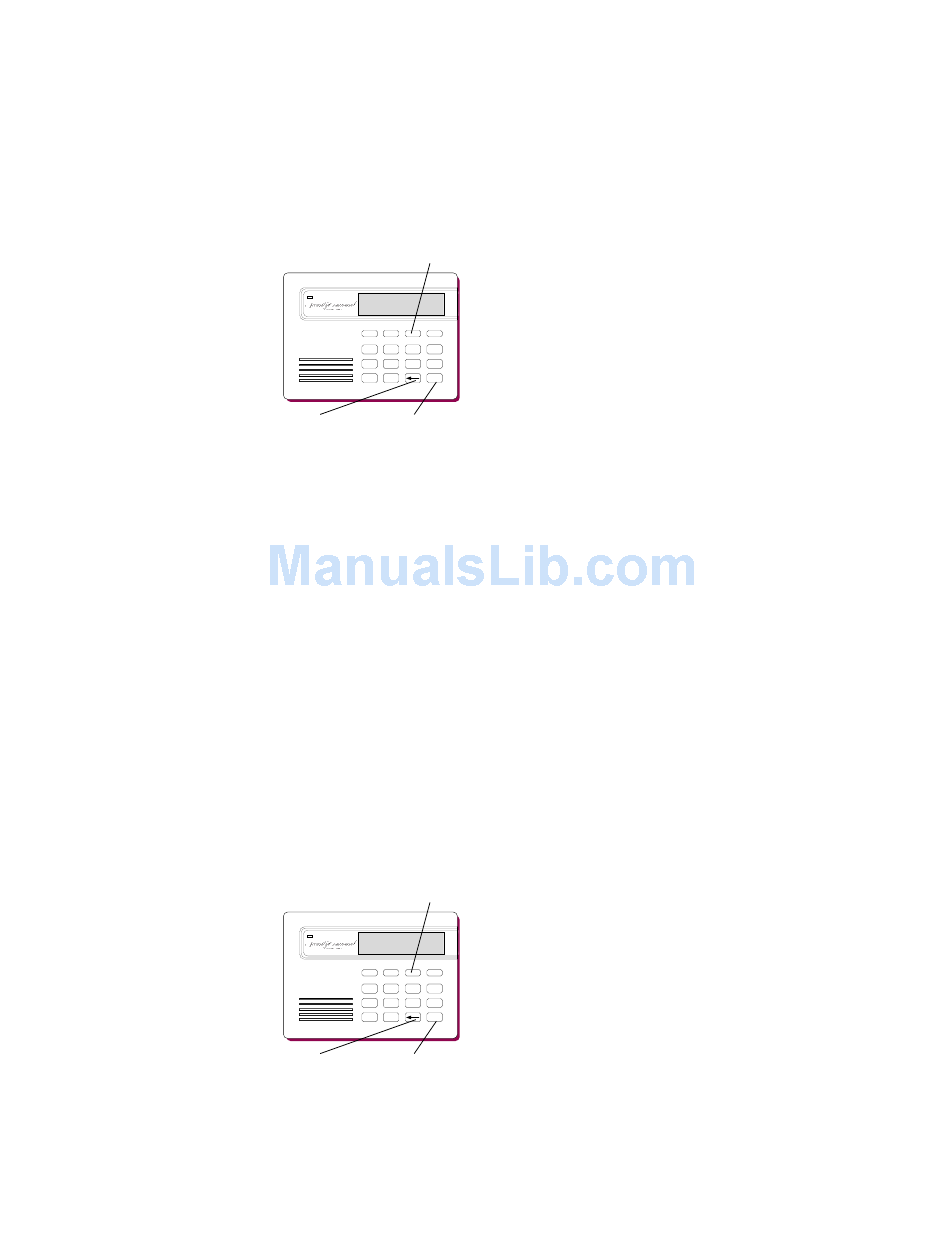

SELECT keys
POWER
JONES RESIDENCE
F R I 2 : 51 AM
1 2 3
A B C D E F G H I
5 6 7
M N O P Q R S T U
9 0
Y Z
ARROW key
COMMAND key
SELECT keys
POWER JONES RESIDENCE
F R I 2 : 51 AM
1 2 3
A B C D E F G H I
5 6 7
M N O P Q R S T U
9 0
Y Z
ARROW key
COMMAND key
Select PRT (print) to print the complete Display Events log.
Select SRT (sort) to sort through the Display Events log and
collect information specific to a user or system event.
4. To use the Sort feature, press the SELECT key under SRT. The
keypad displays FRST DATE: 8/21. Press any SELECT key
and enter a 4-digit beginning date for the sort. Press COMMAND.
5. The keypad displays LAST DATE: 10/17. Press any SELECT
key and enter a 4-digit ending date for the sort. Press COMMAND.
6. The keypad displays USER NUMBER: -. To sort events for a
particular user, enter their user number or press COMMAND to
sort for all users. To search for a user, press any SELECT key
then use the COMMAND and ARROW keys to browse through
the user names in the system. When the user you want is
displayed, press any SELECT key then press COMMAND.
7. The keypad next displays five event types that you can include
in the sort. Press the right SELECT key to display YES as the
4 event type name is displayed on the keypad. Press COMMAND.
J K L
8
V W X
The following are the five sort event types:
COMMAND
ACCESSES = door accesses granted.
DOOR NUMBER = leave blank for all doors.
ZONE EVENTS = zone alarms, troubles, and restorals.
ARM/DISARM = arming and disarming events.
USER EVENTS = adding, deleting, and changing user codes.
SUPERVISORY = system hardware problems.
8. After the last event type is displayed, the keypad again displays
FRST LST PRT SRT. At this point, you can view or print the
new sorted Display Events or press SRT for a new sort.
Select PRT (print) to print the complete Display Events log.
Select SRT (sort) to sort through the Display Events log and
collect information specific to a user or system event.
4. To use the Sort feature, press the SELECT key under SRT. The
keypad displays FRST DATE: 8/21. Press any SELECT key
and enter a 4-digit beginning date for the sort. Press COMMAND.
5. The keypad displays LAST DATE: 10/17. Press any SELECT
key and enter a 4-digit ending date for the sort. Press COMMAND.
6. The keypad displays USER NUMBER: -. To sort events for a
particular user, enter their user number or press COMMAND to
sort for all users. To search for a user, press any SELECT key
then use the COMMAND and ARROW keys to browse through
the user names in the system. When the user you want is
displayed, press any SELECT key then press COMMAND.
7. The keypad next displays five event types that you can include
in the sort. Press the right SELECT key to display YES as the
event type name is displayed on the keypad. Press COMMAND.
4
J K L
8
V W X The following are the five sort event types:
COMMAND
ACCESSES = door accesses granted.
DOOR NUMBER = leave blank for all doors.
ZONE EVENTS = zone alarms, troubles, and restorals.
ARM/DISARM = arming and disarming events.
USER EVENTS = adding, deleting, and changing user codes.
SUPERVISORY = system hardware problems.
8. After the last event type is displayed, the keypad again displays
FRST LST PRT SRT. At this point, you can view or print the
new sorted Display Events or press SRT for a new sort.
