AK-CC55 Multi Coil

AKV info

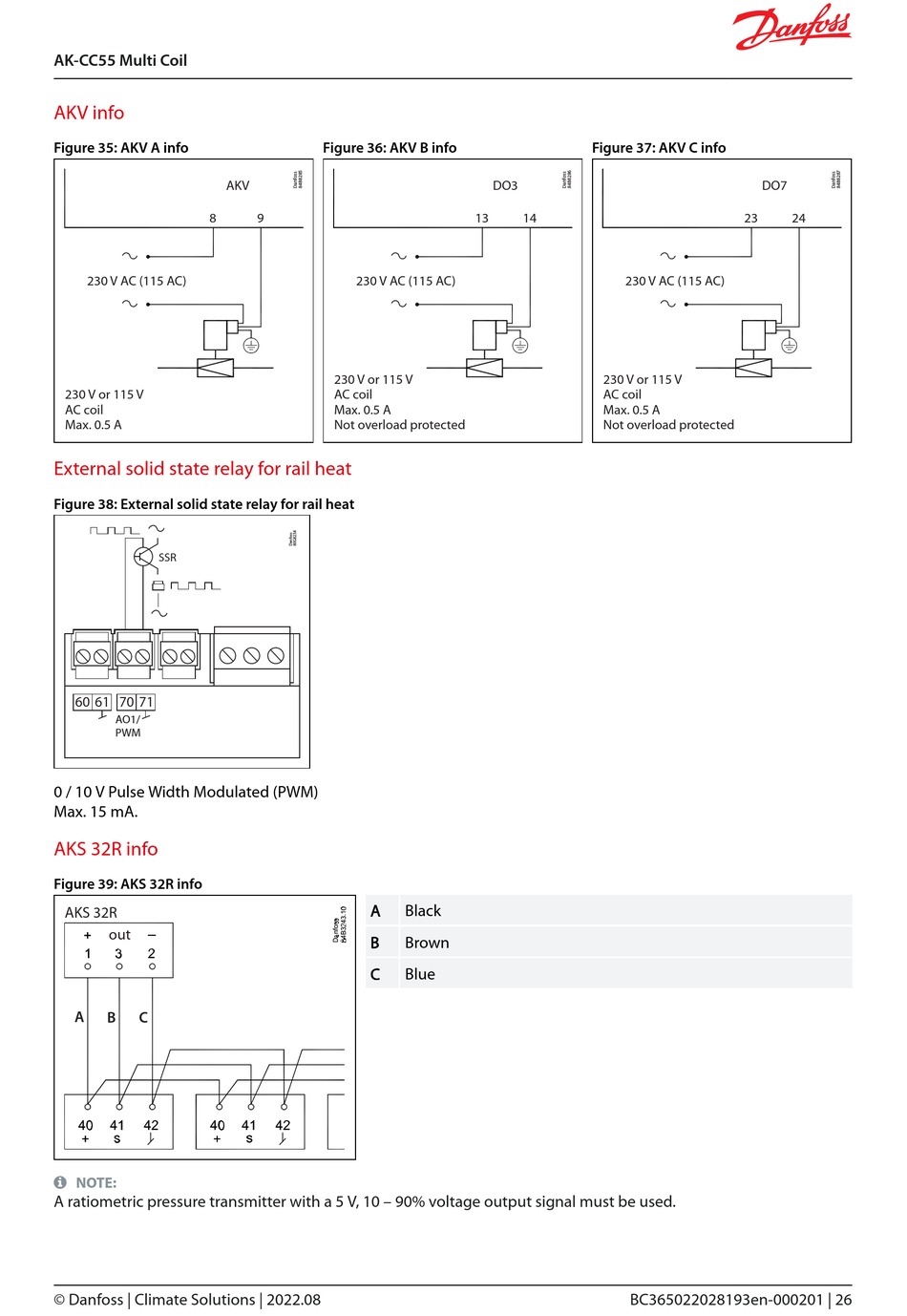

Figure 35: AKV A info
8
230 V AC (115 AC)
230 V or 115 V
AC coil
Max. 0.5 A

External solid state relay for rail heat

Figure 38: External solid state relay for rail heat
SSR
60 61 70 71
AO1/
PWM
0 / 10 V Pulse Width Modulated (PWM)
Max. 15 mA.

AKS 32R info

Figure 39: AKS 32R info
AKS 32R
out
A
B C
 NOTE:
A ratiometric pressure transmitter with a 5 V, 10 – 90% voltage output signal must be used.
© Danfoss | Climate Solutions | 2022.08
Figure 36: AKV B info
AKV
9
230 V AC (115 AC)
230 V or 115 V
AC coil
Max. 0.5 A
Not overload protected
A
B
C
DO3
13 14
Black
Brown
Blue
Figure 37: AKV C info
DO7
23
230 V AC (115 AC)
230 V or 115 V
AC coil
Max. 0.5 A
Not overload protected
