AK-CC55 Multi Coil

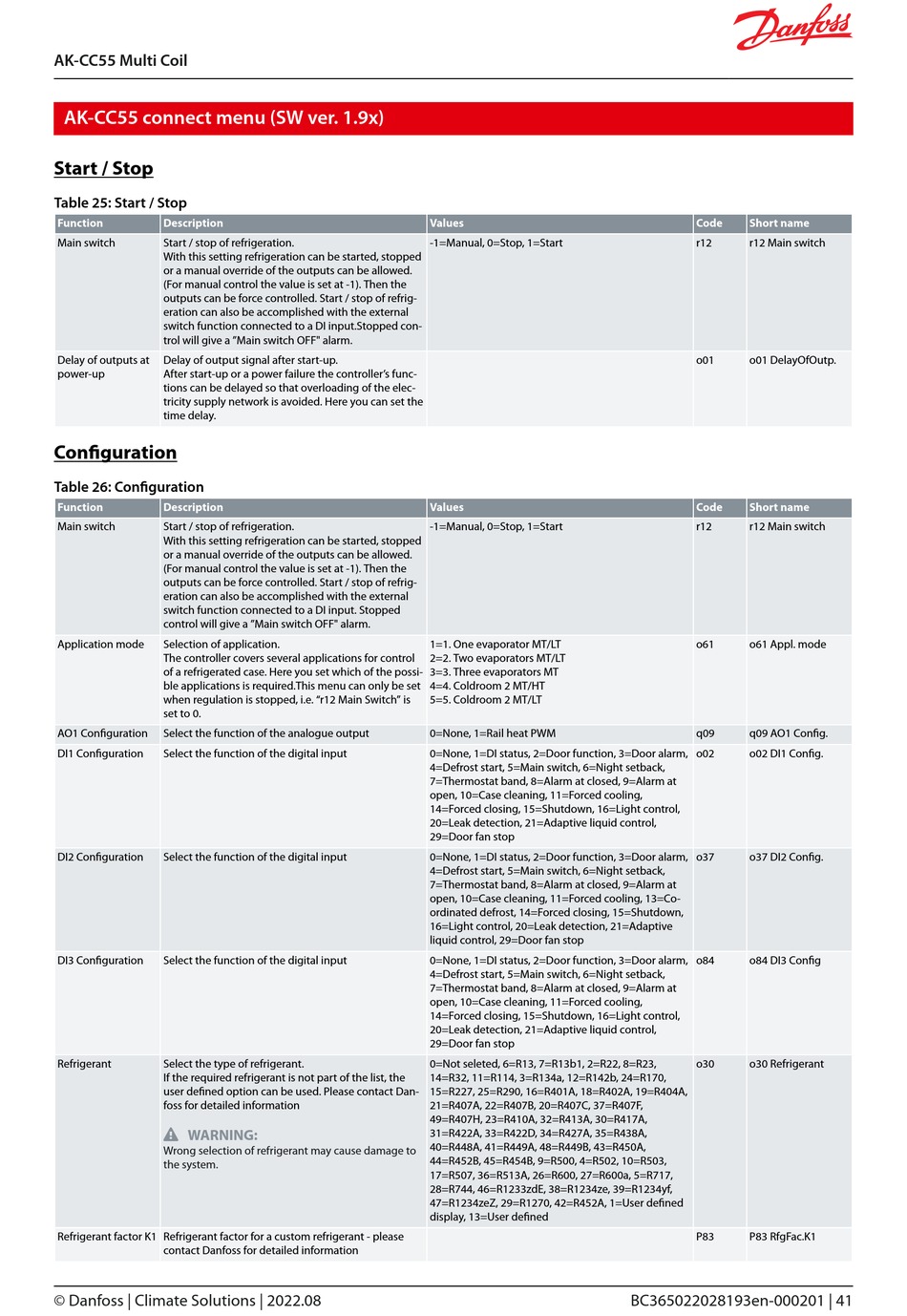

AK-CC55 connect menu (SW ver. 1.9x)

Start / Stop

Table 25: Start / Stop
Function Description
Main switch Start / stop of refrigeration.
With this setting refrigeration can be started, stopped
or a manual override of the outputs can be allowed.
(For manual control the value is set at -1). Then the
outputs can be force controlled. Start / stop of refrig-
eration can also be accomplished with the external
switch function connected to a DI input.Stopped con-
trol will give a "Main switch OFF" alarm.
Delay of outputs at Delay of output signal after start-up.
power-up After start-up or a power failure the controller's func-
tions can be delayed so that overloading of the elec-
tricity supply network is avoided. Here you can set the
time delay.

Configuration

Table 26: Configuration
Function Description
Main switch Start / stop of refrigeration.
With this setting refrigeration can be started, stopped
or a manual override of the outputs can be allowed.
(For manual control the value is set at -1). Then the
outputs can be force controlled. Start / stop of refrig-
eration can also be accomplished with the external
switch function connected to a DI input. Stopped
control will give a "Main switch OFF" alarm.
Application mode Selection of application.
The controller covers several applications for control
of a refrigerated case. Here you set which of the possi-
ble applications is required.This menu can only be set
when regulation is stopped, i.e. "r12 Main Switch" is
set to 0.
AO1 Configuration Select the function of the analogue output
DI1 Configuration Select the function of the digital input
DI2 Configuration Select the function of the digital input
DI3 Configuration Select the function of the digital input
Refrigerant Select the type of refrigerant.
If the required refrigerant is not part of the list, the
user defined option can be used. Please contact Dan-
foss for detailed information
 WARNING:
Wrong selection of refrigerant may cause damage to
the system.
Refrigerant factor K1 Refrigerant factor for a custom refrigerant - please
contact Danfoss for detailed information
© Danfoss | Climate Solutions | 2022.08
Values
-1=Manual, 0=Stop, 1=Start
Values
-1=Manual, 0=Stop, 1=Start
1=1. One evaporator MT/LT
2=2. Two evaporators MT/LT
3=3. Three evaporators MT
4=4. Coldroom 2 MT/HT
5=5. Coldroom 2 MT/LT
0=None, 1=Rail heat PWM
0=None, 1=DI status, 2=Door function, 3=Door alarm,
4=Defrost start, 5=Main switch, 6=Night setback,
7=Thermostat band, 8=Alarm at closed, 9=Alarm at
open, 10=Case cleaning, 11=Forced cooling,
14=Forced closing, 15=Shutdown, 16=Light control,
20=Leak detection, 21=Adaptive liquid control,
29=Door fan stop
0=None, 1=DI status, 2=Door function, 3=Door alarm,
4=Defrost start, 5=Main switch, 6=Night setback,
7=Thermostat band, 8=Alarm at closed, 9=Alarm at
open, 10=Case cleaning, 11=Forced cooling, 13=Co-
ordinated defrost, 14=Forced closing, 15=Shutdown,
16=Light control, 20=Leak detection, 21=Adaptive
liquid control, 29=Door fan stop
0=None, 1=DI status, 2=Door function, 3=Door alarm,
4=Defrost start, 5=Main switch, 6=Night setback,
7=Thermostat band, 8=Alarm at closed, 9=Alarm at
open, 10=Case cleaning, 11=Forced cooling,
14=Forced closing, 15=Shutdown, 16=Light control,
20=Leak detection, 21=Adaptive liquid control,
29=Door fan stop
0=Not seleted, 6=R13, 7=R13b1, 2=R22, 8=R23,
14=R32, 11=R114, 3=R134a, 12=R142b, 24=R170,
15=R227, 25=R290, 16=R401A, 18=R402A, 19=R404A,
21=R407A, 22=R407B, 20=R407C, 37=R407F,
49=R407H, 23=R410A, 32=R413A, 30=R417A,
31=R422A, 33=R422D, 34=R427A, 35=R438A,
40=R448A, 41=R449A, 48=R449B, 43=R450A,
44=R452B, 45=R454B, 9=R500, 4=R502, 10=R503,
17=R507, 36=R513A, 26=R600, 27=R600a, 5=R717,
28=R744, 46=R1233zdE, 38=R1234ze, 39=R1234yf,
47=R1234zeZ, 29=R1270, 42=R452A, 1=User defined
display, 13=User defined
Code Short name
r12 r12 Main switch
o01 o01 DelayOfOutp.
Code Short name
r12 r12 Main switch
o61 o61 Appl. mode
q09 q09 AO1 Config.
o02 o02 DI1 Config.
o37 o37 DI2 Config.
o84 o84 DI3 Config
o30 o30 Refrigerant
P83 P83 RfgFac.K1
