AK-CC55 Multi Coil

Parameter groups when operating via display

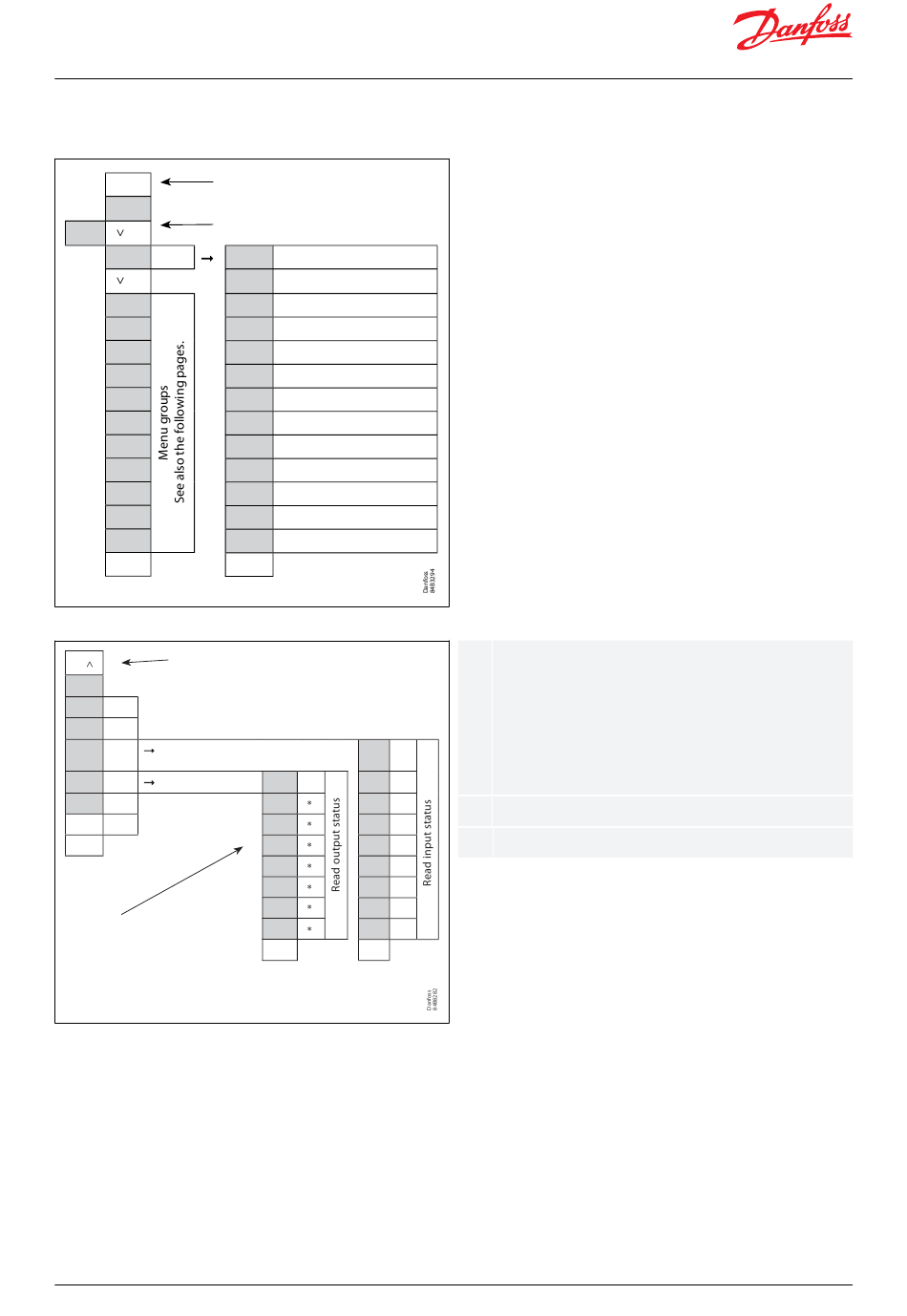

Figure 43: SET button parameter list
SET button, 3 s: Configuration settings
SET
Set
PS: Password (if any)
(PS)
cFg SET
r--
A--
d--
n--
F--
t--
h--
o--
p--
q--
u--
<
(Return) (Return)
Figure 44: Info button parameter list
Info button,
3 s: Information for service use
Inf
StA SET See control state message
App SET See selected application
in SET
out SET
buS SET MODBUS quality
SoF SET
See SW version
<
(Return)
Output status
When you want info on a relay
output, the dot will show
whether the relay is activated
(energized) for, e.g.:
do4 = not activated
do.4 = activated

Get a good start

With the following procedure you can start regulation very quickly:
1. Open parameter r12 and stop the regulation (in a new and not previously set unit, r12 will already be set to 0
which means stopped regulation)
2. Select application based on the wiring diagrams (see
3. Open parameter o61 and set the application number
4. For network. Set the address in o03
5. Then select a set of presets from the "Food type" help table
6. Open parameter r89 and set the number for the array of presettings. The few selected settings will now be
transferred to the menu
© Danfoss | Climate Solutions | 2022.08
r12 Main switch
o61 Application
o03 MODBUS address
r89 Food type
r00 Cut-out temperature
o30 Refrigerant type
o20 Min. transmitter range
o21 Max. transmitter range
d01 Defrost method
d03 Defrost interval
d10 Defrost sensor
d04 Max. defrost time
d02 Defrost stop temperature
<
di1/
**
AI7
do1 Akv di2 **
do2 di3 **
do3 AI1 PE
do4 AI2 S2
do5 AI3 S4
do6 AI4 S5
do7
AI5
**
Ao1 AI6
**
< <
(Return)
(Return)
* The output's function (determined at
configuration). The DOs and AOs can also be
forced controlled from this menu, when r12 Main
switch has been set in position "service". Forced
control of a function can also be performed in
codes q11 to q27.
** The input's function (determined at configuration).
StA See control state message in
Application set-ups and IO
Table 46
connections)
