AK-CC55 Single Coil and Single Coil UI

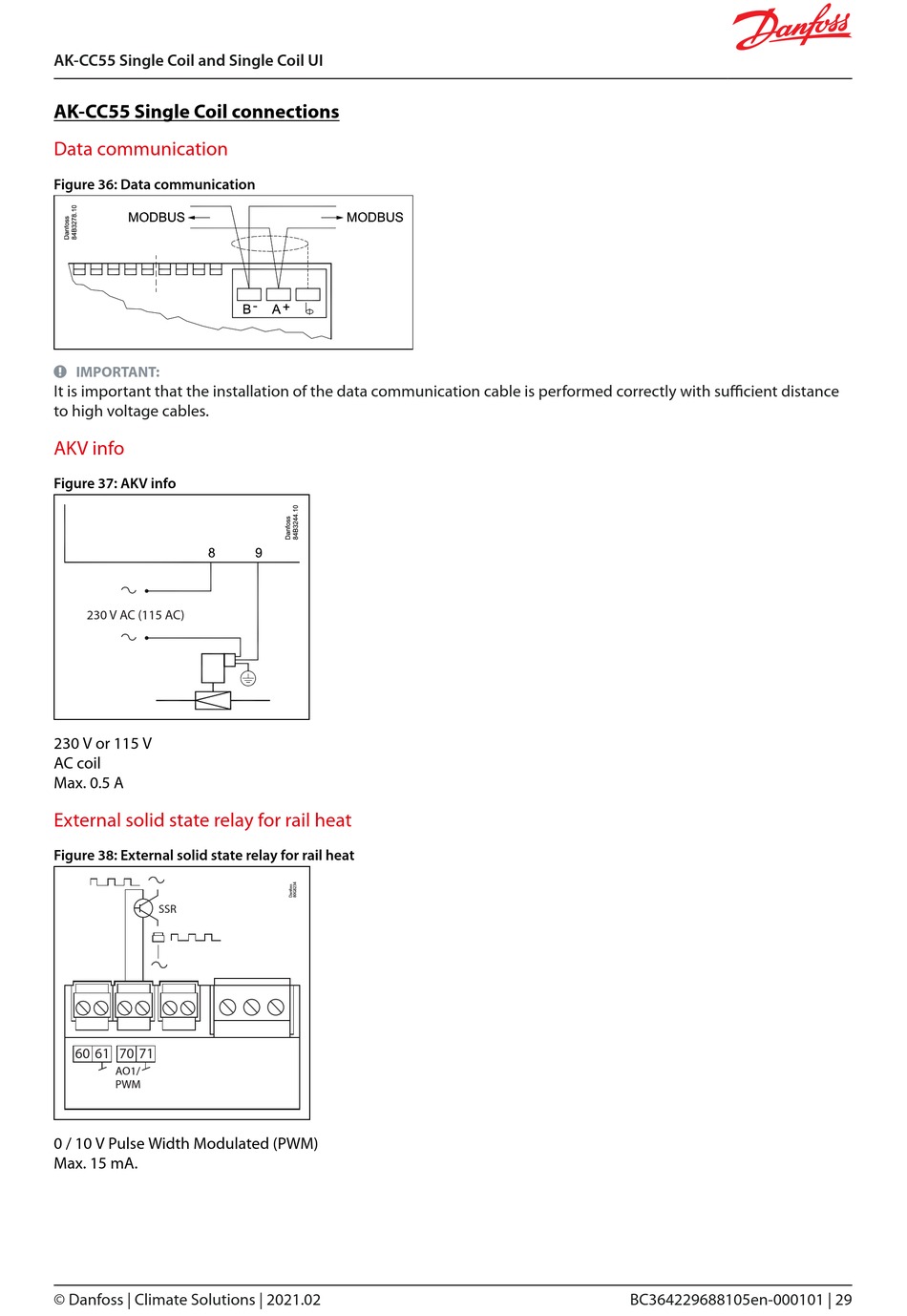

AK-CC55 Single Coil connections

Data communication

Figure 36: Data communication
 IMPORTANT:
It is important that the installation of the data communication cable is performed correctly with sufficient distance
to high voltage cables.

AKV info

Figure 37: AKV info
230 V AC (115 AC)
230 V or 115 V
AC coil
Max. 0.5 A

External solid state relay for rail heat

Figure 38: External solid state relay for rail heat
SSR
60 61 70 71
AO1/
PWM
0 / 10 V Pulse Width Modulated (PWM)
Max. 15 mA.
