AK-CC55 Multi Coil

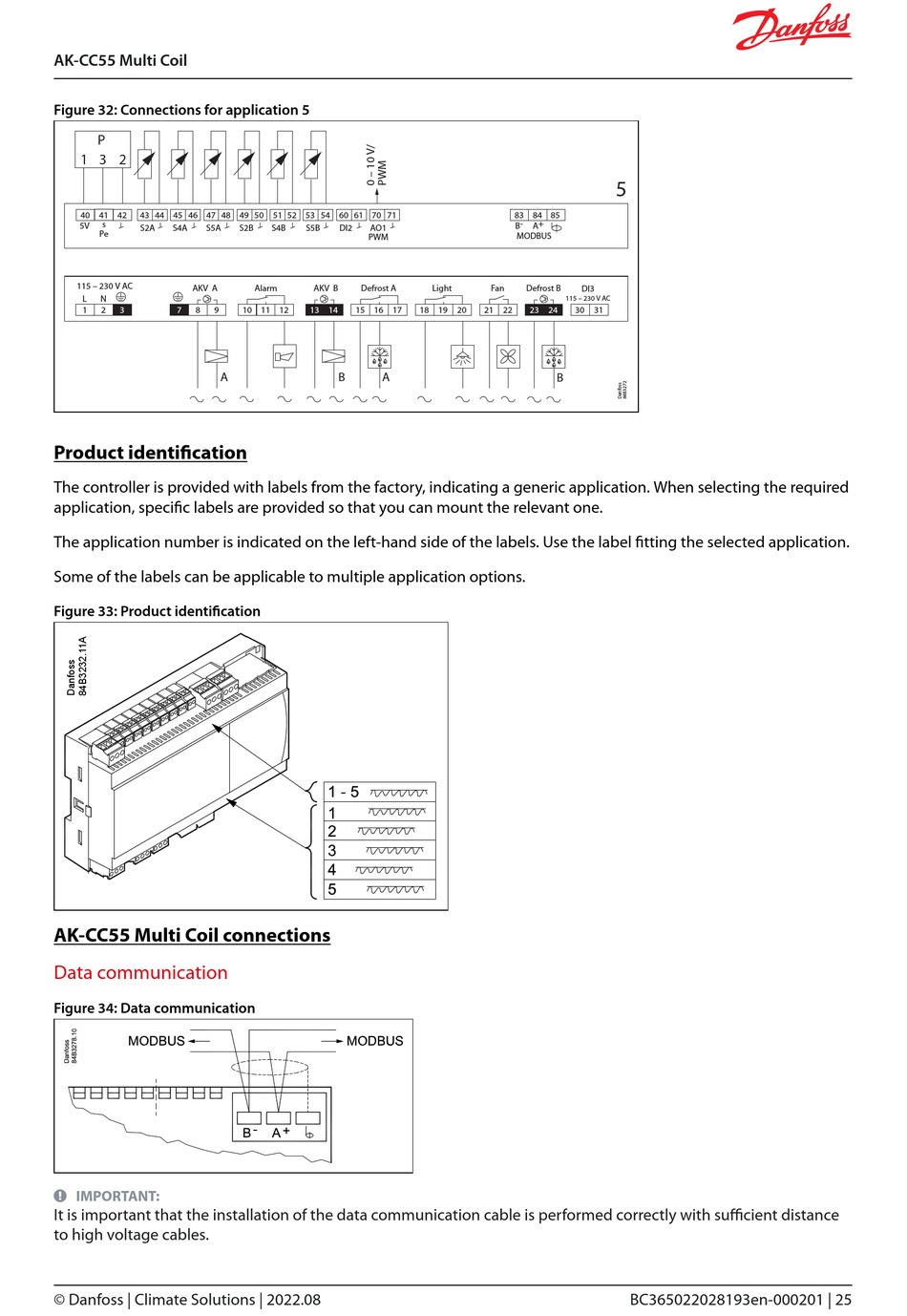

Figure 32: Connections for application 5
P
1 3 2
40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 60 61 70 71
s
5V
S2A S4A S5A
Pe
115 – 230 V AC
AKV A
L N
1 2 3 7 8 9
A

Product identification

The controller is provided with labels from the factory, indicating a generic application. When selecting the required
application, specific labels are provided so that you can mount the relevant one.
The application number is indicated on the left-hand side of the labels. Use the label fitting the selected application.
Some of the labels can be applicable to multiple application options.
Figure 33: Product identification

AK-CC55 Multi Coil connections

Data communication

Figure 34: Data communication
 IMPORTANT:
It is important that the installation of the data communication cable is performed correctly with sufficient distance
to high voltage cables.
© Danfoss | Climate Solutions | 2022.08
S2B S4B S5B DI2 AO1
PWM
Alarm AKV B Defrost A
10 11 12 13 14 15 16 17
B A
83 84 85
B - A +
MODBUS
Light Fan Defrost B
DI3
115 – 230 V AC
18 19 20 21 22 23 24 30
B
5
31
BC365022028193en-000201 | 25
