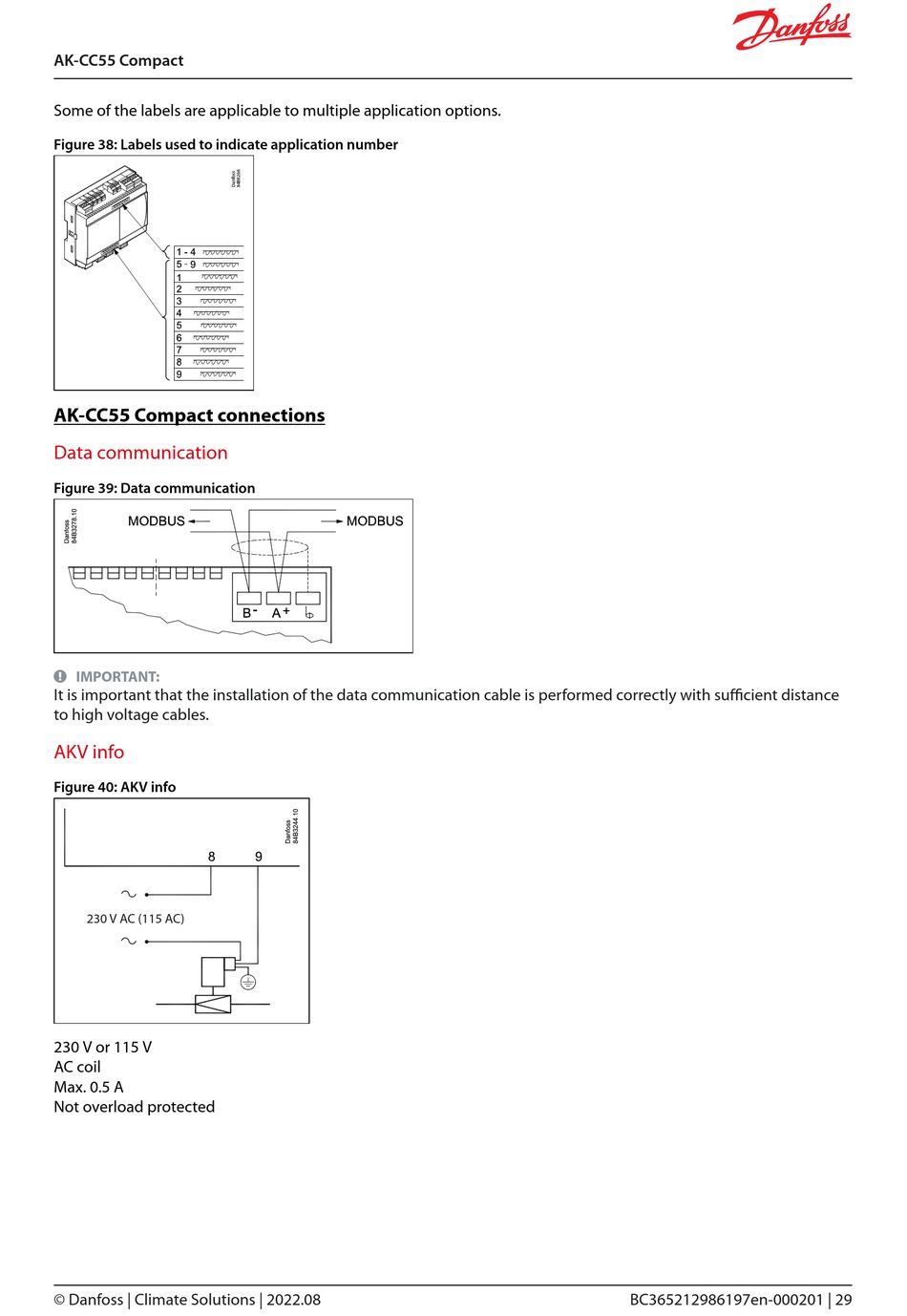

AK-CC55 Compact
Some of the labels are applicable to multiple application options.
Figure 38: Labels used to indicate application number
AK-CC55 Compact connections
Data communication
Figure 39: Data communication
IMPORTANT:
It is important that the installation of the data communication cable is performed correctly with sufficient distance
to high voltage cables.
AKV info
Figure 40: AKV info
230 V AC (115 AC)
230 V or 115 V
AC coil
Max. 0.5 A
Not overload protected
© Danfoss | Climate Solutions | 2022.08
BC365212986197en-000201 | 29
