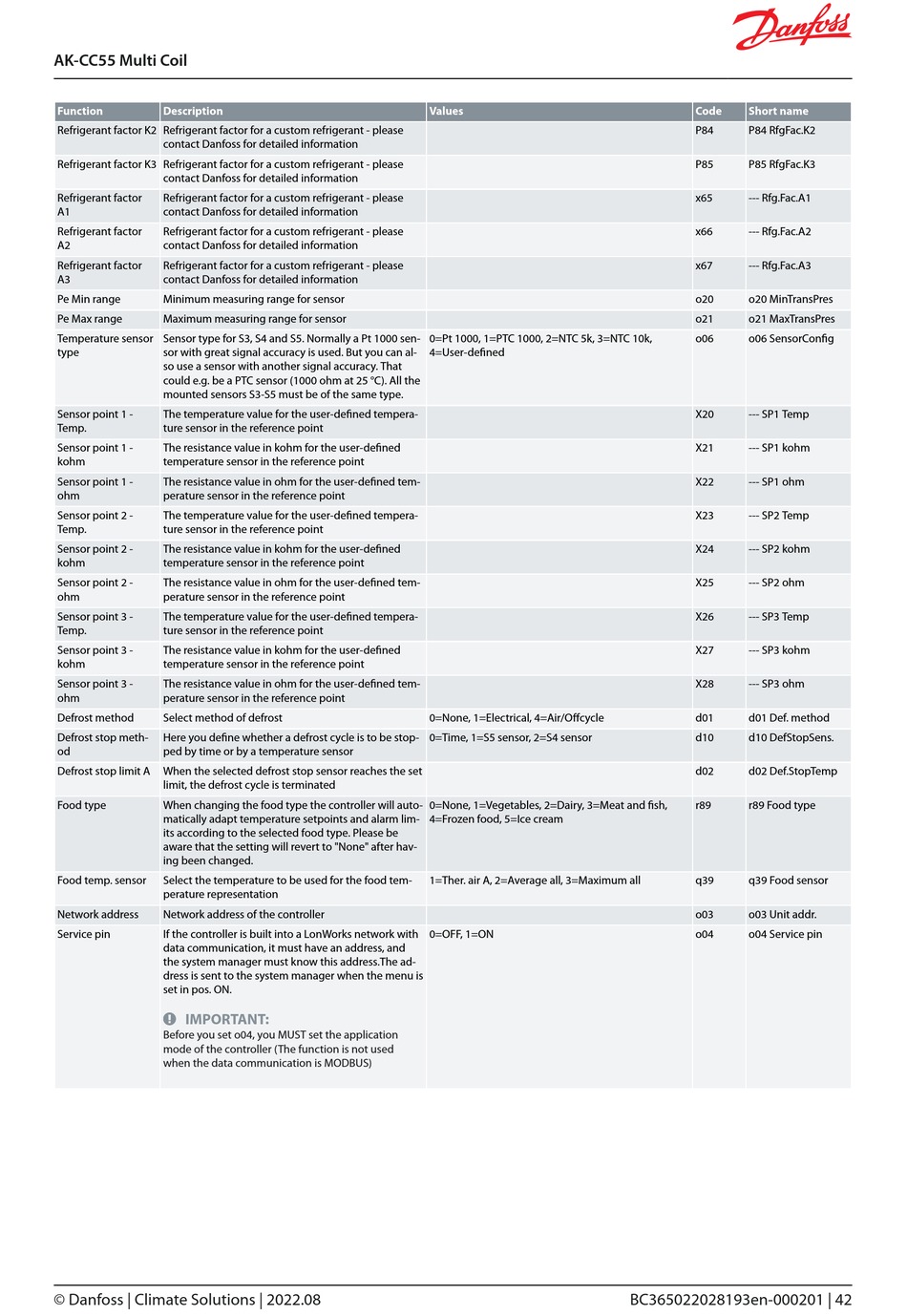

AK-CC55 Multi Coil
Function Description
Refrigerant factor K2 Refrigerant factor for a custom refrigerant - please
contact Danfoss for detailed information
Refrigerant factor K3 Refrigerant factor for a custom refrigerant - please
contact Danfoss for detailed information
Refrigerant factor Refrigerant factor for a custom refrigerant - please
A1 contact Danfoss for detailed information
Refrigerant factor Refrigerant factor for a custom refrigerant - please
A2 contact Danfoss for detailed information
Refrigerant factor Refrigerant factor for a custom refrigerant - please
A3 contact Danfoss for detailed information
Pe Min range Minimum measuring range for sensor
Pe Max range Maximum measuring range for sensor
Temperature sensor Sensor type for S3, S4 and S5. Normally a Pt 1000 sen-
type sor with great signal accuracy is used. But you can al-
so use a sensor with another signal accuracy. That
could e.g. be a PTC sensor (1000 ohm at 25 °C). All the
mounted sensors S3-S5 must be of the same type.
Sensor point 1 - The temperature value for the user-defined tempera-
Temp. ture sensor in the reference point
Sensor point 1 - The resistance value in kohm for the user-defined
kohm temperature sensor in the reference point
Sensor point 1 - The resistance value in ohm for the user-defined tem-
ohm perature sensor in the reference point
Sensor point 2 - The temperature value for the user-defined tempera-
Temp. ture sensor in the reference point
Sensor point 2 - The resistance value in kohm for the user-defined
kohm temperature sensor in the reference point
Sensor point 2 - The resistance value in ohm for the user-defined tem-
ohm perature sensor in the reference point
Sensor point 3 - The temperature value for the user-defined tempera-
Temp. ture sensor in the reference point
Sensor point 3 - The resistance value in kohm for the user-defined
kohm temperature sensor in the reference point
Sensor point 3 - The resistance value in ohm for the user-defined tem-
ohm perature sensor in the reference point
Defrost method Select method of defrost
Defrost stop meth- Here you define whether a defrost cycle is to be stop-
od ped by time or by a temperature sensor
Defrost stop limit A When the selected defrost stop sensor reaches the set
limit, the defrost cycle is terminated
Food type When changing the food type the controller will auto-
matically adapt temperature setpoints and alarm lim-
its according to the selected food type. Please be
aware that the setting will revert to "None" after hav-
ing been changed.
Food temp. sensor Select the temperature to be used for the food tem-
perature representation
Network address Network address of the controller
Service pin If the controller is built into a LonWorks network with
data communication, it must have an address, and
the system manager must know this address.The ad-
dress is sent to the system manager when the menu is
set in pos. ON.
 IMPORTANT:
Before you set o04, you MUST set the application
mode of the controller (The function is not used
when the data communication is MODBUS)
© Danfoss | Climate Solutions | 2022.08
Values
0=Pt 1000, 1=PTC 1000, 2=NTC 5k, 3=NTC 10k,
4=User-defined
0=None, 1=Electrical, 4=Air/Offcycle
0=Time, 1=S5 sensor, 2=S4 sensor
0=None, 1=Vegetables, 2=Dairy, 3=Meat and fish,
4=Frozen food, 5=Ice cream
1=Ther. air A, 2=Average all, 3=Maximum all
0=OFF, 1=ON
Code Short name
P84 P84 RfgFac.K2
P85 P85 RfgFac.K3
x65 --- Rfg.Fac.A1
x66 --- Rfg.Fac.A2
x67 --- Rfg.Fac.A3
o20 o20 MinTransPres
o21 o21 MaxTransPres
o06 o06 SensorConfig
X20 --- SP1 Temp
X21 --- SP1 kohm
X22 --- SP1 ohm
X23 --- SP2 Temp
X24 --- SP2 kohm
X25 --- SP2 ohm
X26 --- SP3 Temp
X27 --- SP3 kohm
X28 --- SP3 ohm
d01 d01 Def. method
d10 d10 DefStopSens.
d02 d02 Def.StopTemp
r89 r89 Food type
q39 q39 Food sensor
o03 o03 Unit addr.
o04 o04 Service pin
