Removing the Sensor Pad Assembly

17.1 Remove the top cover (Refer to Page 3, Section 2).
17.2 Disconnect the six pop studs (Fig 36, Item 1) which connect the cell loop sheet to the base
cover at the head end of the bed.
17.3 Roll the mattress cell assembly back as far as possible towards the foot end of the bed. Remove
the soft foam sheet (Fig 37, Item 1) from the corner pockets (Fig 37, Item 3) in the base cover
and fold it back over the mattress cell assembly.
17.4 Disconnect the 8 pop studs (Fig 49, Item 1) securing the sensor pad (Fig 49, Item 2) to the hard
foam sheet.
17.5 Disconnect the sensor pad hoses (Fig 49, Item 3) from the hose sleeves (Fig 49, Item 4).
17.6 Remove the sensor pad (Fig 49, Item 2).
18

Installing the Sensor Pad

18.1 Position the sensor pad (Fig 49, Item 2) on the hard foam sheet and connect the 8 pop studs
(Fig 49, Item 1) securing the sensor pad (Fig 49, Item 2) to the hard foam sheet.
18.2 Connect the sensor pad hoses (Fig 49, Item 3) to the hose sleeves (Fig 49, Item 4).
18.3 Lay the soft foam sheet (Fig 37, Item 1) over the sensor pad and tuck the corners in the pockets
(Fig 37, Item 3) of the base cover.
18.4 Unroll the mattress cell assembly and connect the six pop studs (Fig 36, Item 1) which attach
the cell loop sheet to the base cover at the head end of the bed.
18.5 Install the top cover (Refer to Page 3, Section 3).
Issue 2
April 2010

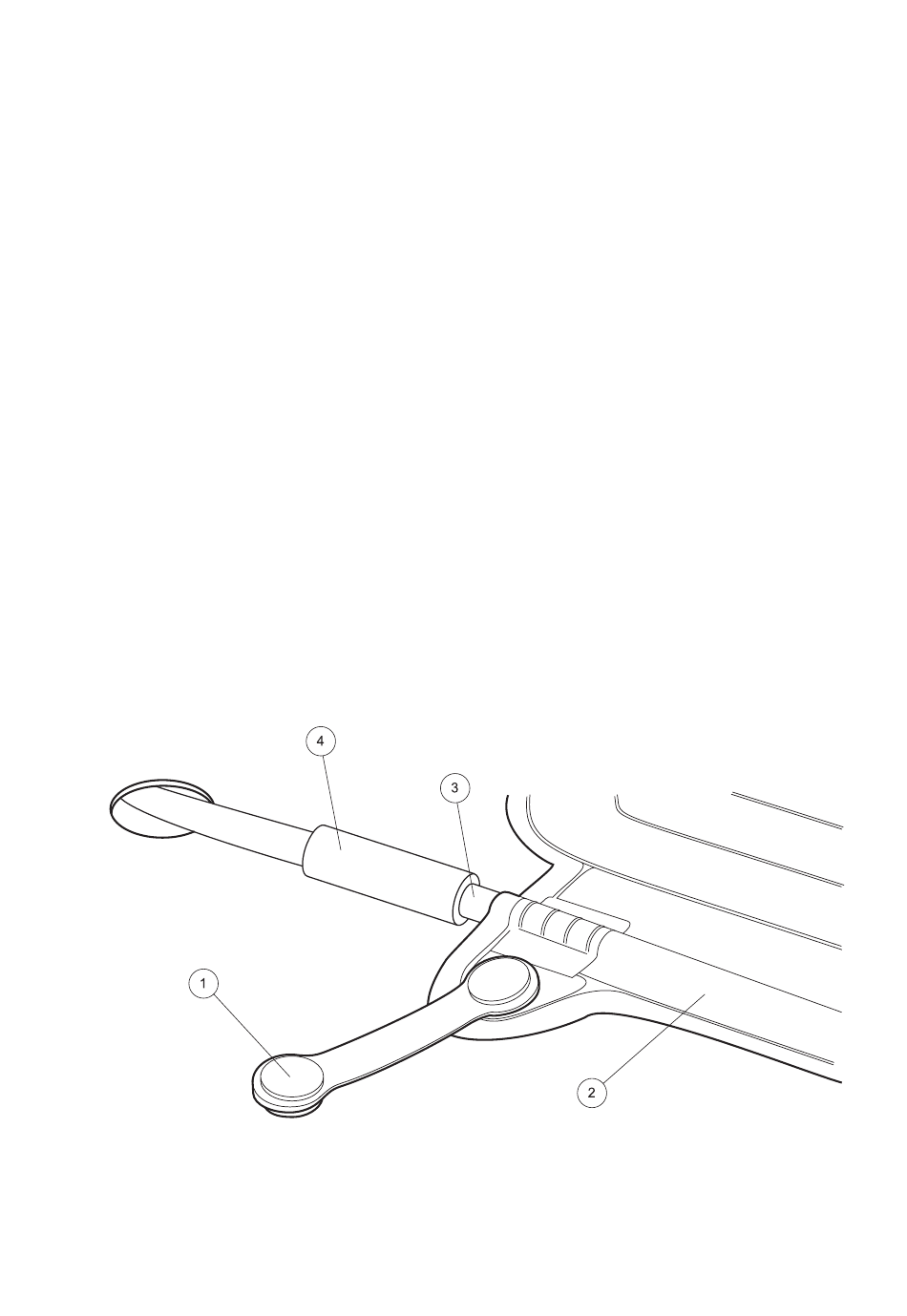

Figure 49 - Sensor Pad connections
