Nimbus/DFS Service Manual
32.4

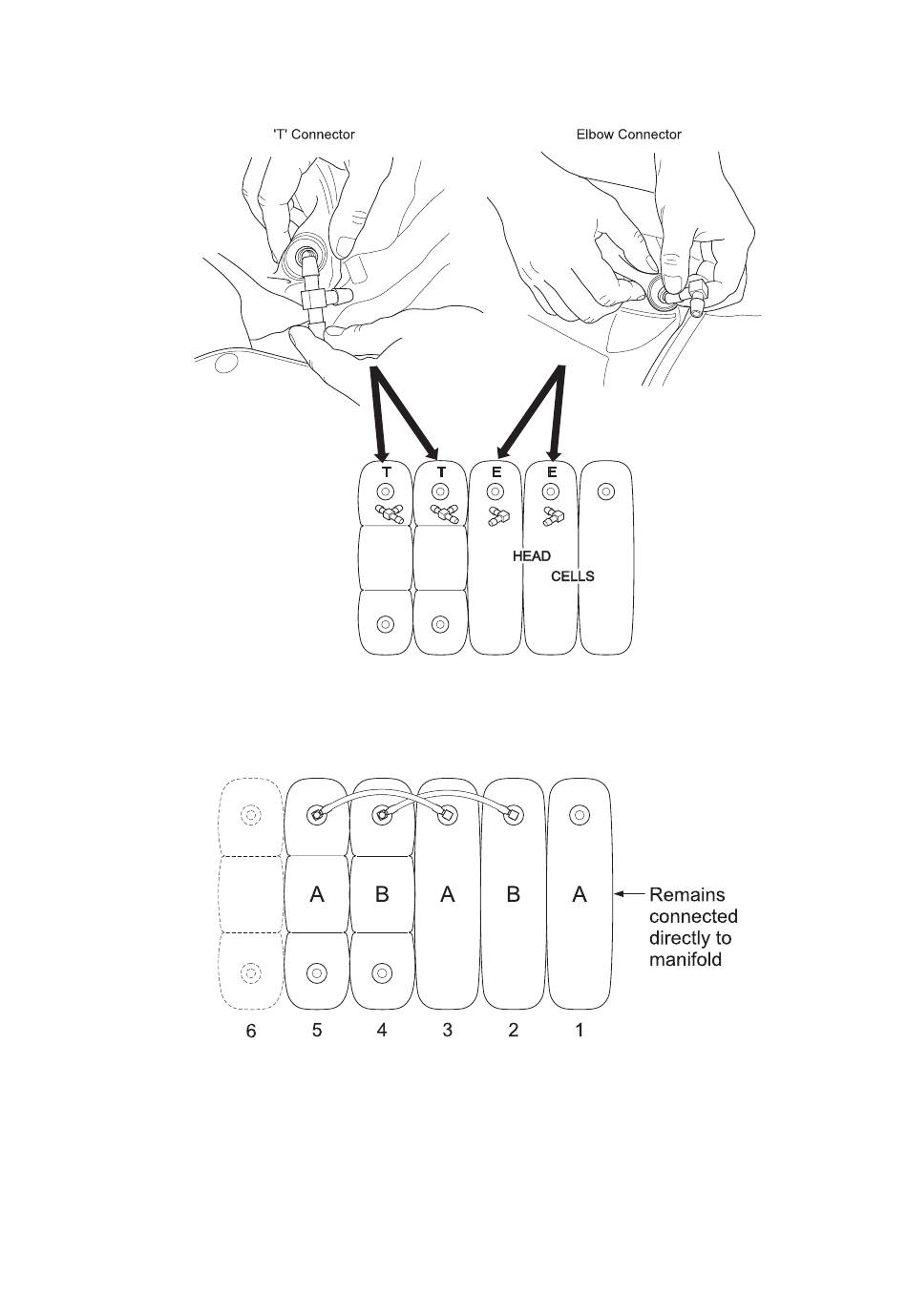

Fit the 'T' and elbow pieces to the cell valves 2 to 5 as shown in Figure 67.
Figure 67 - Fit 'T' and Elbow Pieces (Configuration 2)
32.5
Connect the tubes to the valves as shown in Figure 68.
Issue 2
April 2010
Figure 68 - Connect the tubes (Configuration 2)
SER0001
Mattress Repair
Chap 4
Page 37
