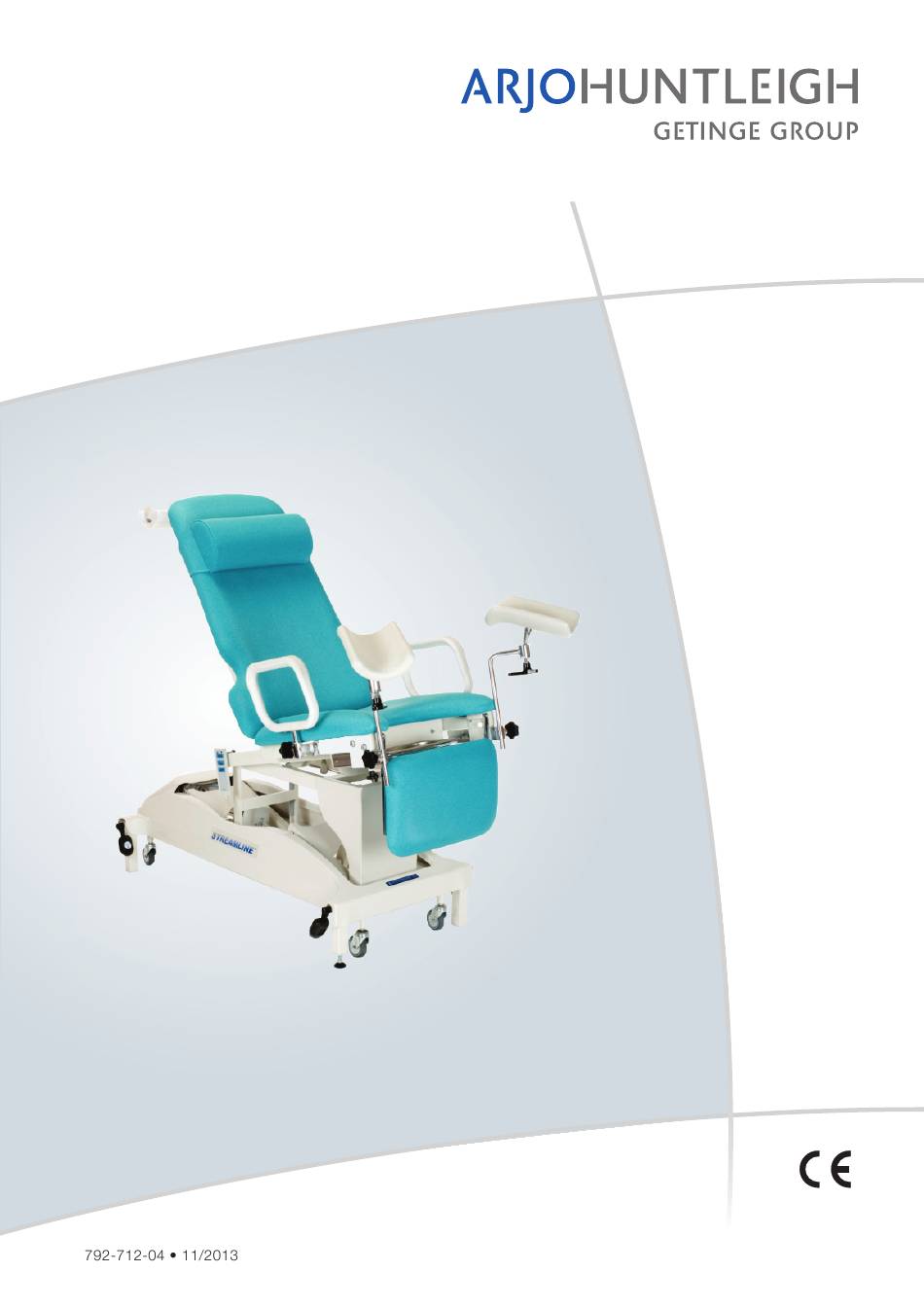

  • Page 1 AKRON STREAMLINE GYNAE RANGE INSTRUCTIONS FOR USE ...with people in mind...
  • Page 2 Design Policy and Copyright ® and ™ are trademarks belonging to the ArjoHuntleigh group of companies unless otherwise stated. © ArjoHuntleigh 2012. As our policy is one of continuous improvement, we reserve the right to modify designs without prior notice. The content of this publication may not be copied either wholly or in part without the consent of ArjoHuntleigh.

  • Page 3: Table Of Contents

    Contents Warnings, Cautions and Notes ............ii General Warnings ................ii 1. Introduction ..............1 Product overview................2 2. Clinical Applications ............. 3 Intended use .................. 3 Contraindications ................3 3. Installation ..............4 Adjustable Foot ................4 Electric models ................4 Recharging the battery backup ............

  • Page 4: Warnings, Cautions And Notes

    Warnings, Cautions and Notes Indicates possible hazards in procedures or conditions WARNING which, if not correctly followed, could result in death, injury or other serious adverse reactions. Indicates possible hazards in procedures or conditions Caution which, if not correctly followed, could result in equipment damage or failure.
  • Page 5 WARNING Do not use accessories that have not been designed or approved for use with couch. Always apply the brakes when the couch is stationary. When the couch is operated, make sure that obstacles such as furniture do not restrict its movement. Before operating the couch, make sure the patient is positioned correctly to avoid entrapment or imbalance.
  • Page 6 792-712-05...

  • Page 7: Introduction

    1. Introduction The STREAMLINE ™ Gynae product range of treatment & examination couches, have been designed to cover a wide range of disciplines, from simple examination to heavier manipulative and manual therapy techniques. The STREAMLINE couches in this range provide ergonomic solutions to a variety of manual handling issues, benefiting both the patient and clinician.

  • Page 8: Product Overview

    Product overview 1. Upholstery 2. Lifting arms 3. Rubber pedals 4. Electric actuator 5. Castors 6. Leg support 7. Arm loop 8. Paper roll holder 9. Detachable head cushion 10. Fold down extension frame 792-712-05...

  • Page 9: Clinical Applications

    2. Clinical Applications WARNING To ensure the patient can use the couch safely, their age, size and condition should be assessed by a clinically qualified person. Intended use This product is intended to position able patients (mainly females / some males) for examinations in a seated position, or with the leg raised in leg supports.

  • Page 10: Installation

    3. Installation Adjustable Foot WARNING Lock all castors before adjusting. A. Lock castors first. B. Adjust foot. C. Lock foot by tightening half nut. Electric models Connect the mains plug to a suitable socket outlet. Make sure the mains plug is easily accessible so it can be disconnected quickly in an emergency.

  • Page 11: Recharging The Battery Backup

    Caution Before the first use, or if the couch has been unused for more than three months, connect the couch to the electricity supply for at least 24 hours to allow the backup battery to recharge fully. Failure to do this may reduce the life of the battery. To ensure the battery is kept fully charged and prevent damage to the battery, the couch should be connected to the electricity supply at all times during normal use.

  • Page 12: Operation

    4. Operation Elevation Controls WARNING Safely position patient before elevating couch. Position all electrical cables away from the moving parts. Position hand/foot switch where accidental operation is not possible. Gynae 1 (Model 2252) Handswitch Press to raise couch. to lower couch. Press Footswitch Press...

  • Page 13: Gynae 2 (2254) And Gynae 3 Models (2255, 2256 & 2257)

    Gynae 2 (2254) and Gynae 3 Models (2255, 2256 & 2257) Gynae 2 (2254) Gynae 3 (2255, 2256 & 2257) Press Press move the section move the section Press Press move the section move the section down. Triple Foot Switch To use the triple foot switch: A.

  • Page 14: Wheel Locking

    Wheel Locking WARNING Lock all couch wheels/castors prior to patient transfer or treatment. These couches are not designed for the transportation of patients. Disconnect and coil electrical cord away from moving parts prior to repositioning couch. Casters (RWB - Retractable Wheel Base) Castors unlocked Castors locked Backrest Operating Lever...

  • Page 15: Debris Tray

    Debris Tray Caution Ensure Debris Tray is removed and frame positioned under seat prior to patient mounting or dismounting couch. A. To remove tray, lift out of frame and slide frame under seat. B. To insert tray, slide frame out and position debris tray into frame.

  • Page 16: Product Care

    5. Product Care WARNING Do not use Alkalis or other organic solvents for routine cleaning. Replace torn or damaged vinyl immediately. Always cover vinyl with fresh paper or sheet between patients. If contamination is known or suspected always decontaminate couch before use.

  • Page 17: Preventive Maintenance

    Preventive maintenance This product is subject to wear and tear during use. To ensure that it continues to perform within its original specification, preventive maintenance procedures should be carried out at the intervals shown. WARNING This list indicates the minimum recommended level of preventive maintenance.
  • Page 18 WARNING The procedures below must be carried out by suitably trained and qualified personnel. Failure to do so may result in injury or an unsafe product. Every six Actions to be done by qualified personnel months Carry out a full test of all electrical couch positioning functions ...

  • Page 19: Troubleshooting

    Troubleshooting If the equipment fails to operate correctly, the table below suggests some simple checks and corrective actions. If these steps fail to resolve the problem, contact ArjoHuntleigh or an approved service agent. Symptom Possible Cause Action Ensure mains supply is connected Power disconnected Contact your local Akron...

  • Page 20: Accessories

    6. Accessories Recommended accessories for the Streamline Gynae product range are shown in the table below: - Standard accessory - Optional Accessory Accessory Accessory description number [kg]  Seat Extension A7303 Fold Down Extension  A7333 Frame Leg Support (requires ...

  • Page 21: Seat Extension (A7303)

    Seat Extension (A7303) Caution Prior to patient positioning, ensure seat extension (if used) is secure. To remove seat extension: A. Loosen locking knob on underside. B. Slide seat extension horizontally away from couch. To refit seat extension: A. Locate seat extension into tubes. B.

  • Page 22: Leg Supports (A7309)

    Leg Supports (A7309) Caution Ensure all locking knobs and levers have been sufficiently tightened before using leg supports. To adjust leg support: A. Locate leg support into bracket. B. Secure by tightening locking knob. C. To adjust angle of leg support pad, loosen lever on underside of pad, adjust to desired position and secure by tightening lever.

  • Page 23: Head Support (Ahc1)

    Head Support (AHC1) Adjust Head Support to suit patient by: A. Unfastening Velcro strap. B. Position where required. C. Fasten Velcro strap to secure. Paper Roll Holder (A8611) Replace paper roll by: A. Gently spring bracket out. B. Insert paper roll rod between brackets. C.

  • Page 24: Leg Stirrups (A3295)

    Leg Stirrups (A3295) Adjust Leg Stirrups to suit patient by: A. Unlocking the locking knobs. B. Adjust position of stirrup. C. Tighten locking knobs. Caution Ensure all accessories are fully tightened prior to use. 792-712-05...

  • Page 25: Technical Data

    7. Technical Data General Safe working load 225kg Product weight (approx.) 111kg Audible noise 54dB Operating conditions Temperature 5°C to 40°C Relative humidity 20% to 90% at 30°C, non-condensing Atmospheric pressure 700hPa to 1060hPa Mundail Vinyl: 88% PVC - 12% Cotton Upholstery material Diabol Vinyl: 84% PVC - 16% Cotton Electrical data...
  • Page 26 Environmental Protection This product is marked with the crossed out wheelie bin symbol to indicate that it is covered by EU Directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE). This symbol indicates that all electrical and electronic products must be taken to a dedicated collection point at end of their working life.
  • Page 27 Model Angles and dimensions 59.5cm (23.5”) 99cm (39”) 85° 2252 0° 59.5cm (23.5”) 99cm (39”) 2254 Height Range 49cm - 95 cm (19” - 37.5”) Overall length with seat extension 186.5cm (73.5”) 59.5cm (23.5”) 99cm (39”) 85° 2255 15° 2256 59.5cm (23.5”) 0°...
  • Page 28 Symbols Safe working load Double Insulated (Class II) Manufacturer / date of Alternating current (a.c.) manufacture Complies with the European Caution Medical Device Directive 93/ 42/EEC Refer to Instructions For Serial number Type B applied part Model number Waste Electrical and Electronic Equipment (WEEE) Protective earth (ground) - do not dispose of this product...

  • Page 29: Warranty And Service

    8. Warranty and Service ArjoHuntleigh standard terms and conditions apply to all sales; a copy is available on request. These contain full details of warranty terms and do not limit the statutory rights of the consumer. For service, maintenance and any questions regarding this product, please contact your local ArjoHuntleigh office or approved distributor.
  • Page 30 792-712-05...
  • Page 31 AUSTRALIA FRANCE POLSKA ArjoHuntleigh Pty Ltd ArjoHuntleigh SAS ArjoHuntleigh Polska Sp. z o.o. 78, Forsyth street 2 Avenue Alcide de Gasperi ul. Ks Piotra Wawrzyniaka 2 O’Connor CS 70133 PL 62-052 KOMORNIKI (Poznan) AU-6163 Western Australia 59436 RONCQ CEDEX Tel: +48 61 662 15 50 Tel: +61 89337 4111 Tél: +33 (0) 3 20 28 13 13 Fax: +48 61 662 15 90...
  • Page 32 GETINGE GROUP is a leading global provider of products and systems that contribute to quality enhancement and cost efficiency within healthcare and life sciences. We operate under the three brands of ArjoHuntleigh, GETINGE and MAQUET. ArjoHuntleigh focuses on patient mobility and wound management solutions.
