Mattress Repair
32 Installing the Alternating Head Cell Modification - Configuration 2
Note: Not all parts of the kit are used if only two cells alternate as in Configuration 2.
32.1 Inflate the mattress. Unzip the top cover and lay it back, clear of the head end of the mattress.
32.2 Disconnect the top six manifold pop studs to reveal the six cell valves (Figure 61).
32.3 Remove the straight connectors from cell valves 2 to 5 (Figure 66).

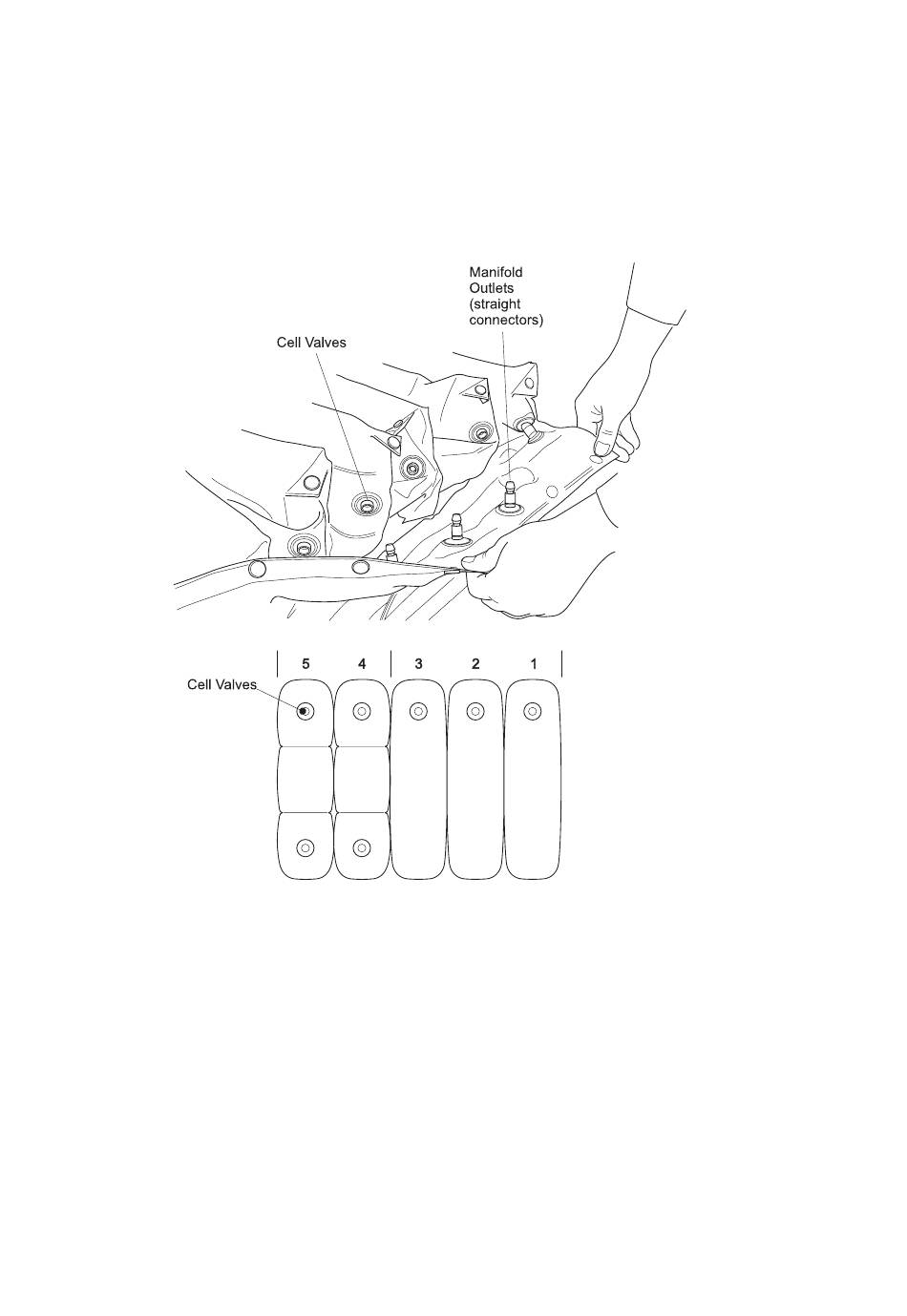

Figure 66 - Remove the Straight Connectors (Configuration 2)
