Ninjo
Assembly and Installation Instructions
...with people in mind
6001313602_1EN • 01/2019

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Arjohuntleigh Ninjo Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Getinge Arjohuntleigh Ninjo Series

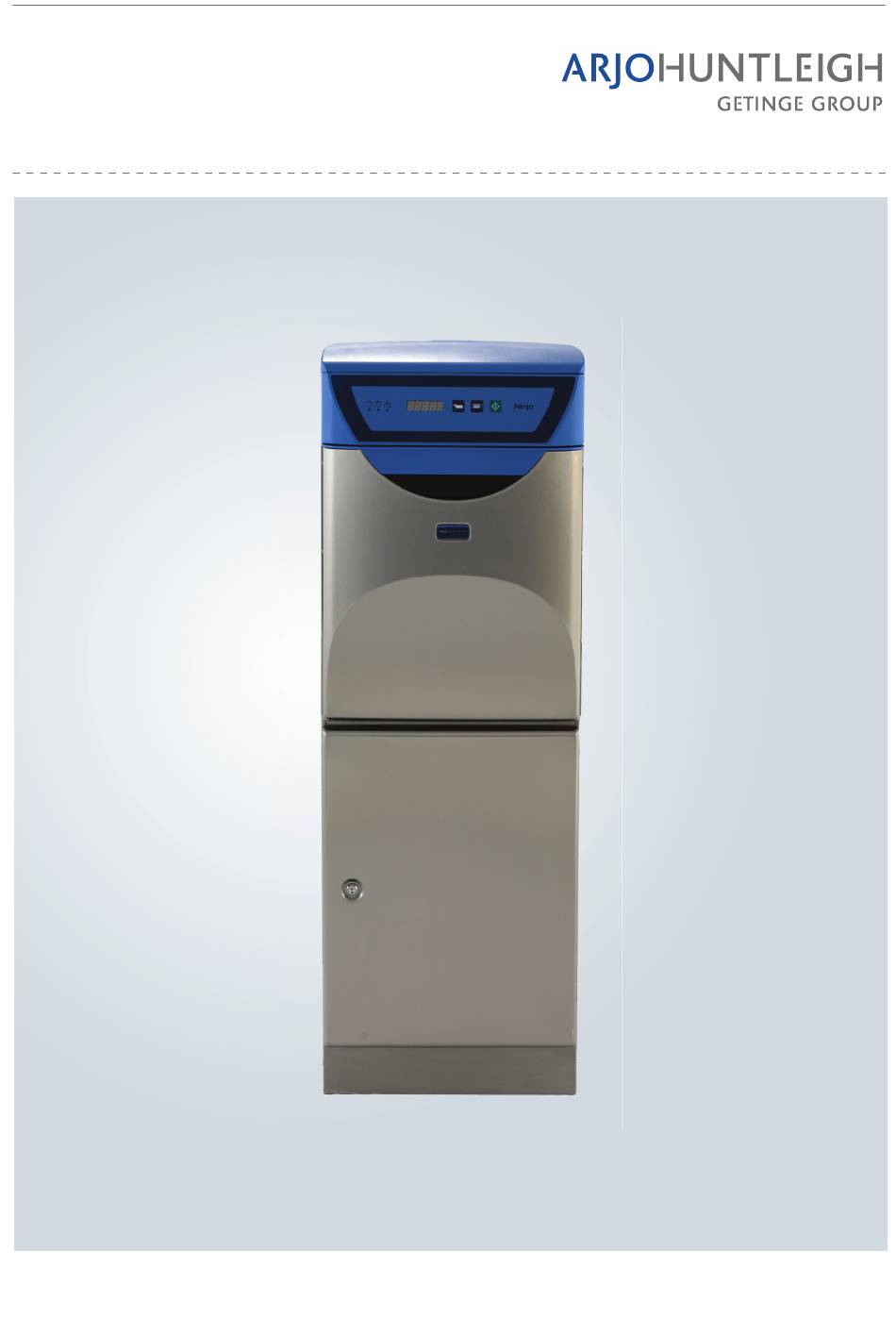

  • Page 1 Ninjo Assembly and Installation Instructions ...with people in mind 6001313602_1EN • 01/2019...
  • Page 2 The model name and serial number should always be provided when ordering spare parts or during queries per telephone or written correspondence: Serial number of the machine: …………………………………………………… Machine model: …………………………………………………… Design Policy and Copyright ® and ™ are trademarks belonging to the ArjoHuntleigh group of companies. © ArjoHuntleigh 2017. As our policy is one of continuous improvement, we reserve the right to modify designs without prior notice.
  • Page 3: Table Of Contents

    Contents PREFACE ..........................5 1 SAFETY PRECAUTIONS ....................6 1.1 General safety regulations ...................7 1.2 Isolator switch ......................8 1.3 In an emergency ....................8 1.4 Product liability .....................8 1.5 Attention symbols ....................8 2 INSTALLATION OF MACHINE ..................9 2.1 General ........................9 2.1.1 Make sure assembly and installation work is carried out ......9 2.1.2 Installation order ...................9 2.1.3 Installation alternatives .................9 2.2 Unpacking ......................10...
  • Page 4 4.7.2 Example ....................25 5 WATER QUALITY ......................26 5.1 Requirements ....................26 5.2 Main factors .......................26 5.3 Recommendation ....................26 5.4 Local standard ....................26 ..............27 6 HANDLING OF WORN PRODUCTS ................28...
  • Page 5: Preface

    PREFACE The user manual describes the design and operation of the machine and the maintenance for which the user is responsible. The installation manual describes the machine’s installation. The technical manual describes necessary information for operators and maintenance personnel. The information in the manual must be complied with to ensure safe and error-free operation.
  • Page 6: Safety Precautions

    1 SAFETY PRECAUTIONS Operators and maintenance personnel must undergo safety training for the machine. All personnel who handle chemicals for washing and disinfection must understand the washing process, chemicals. Operators and maintenance personnel must undergo regular training in the operation and maintenance of the equipment. There must be a documented list of personnel who have been trained to use the machine.
  • Page 7: General Safety Regulations

    1.1 General safety regulations Do not wash down or hose down the machine with water. • Read the user manual thoroughly before use • The equipment must only be used by personnel who know about it and are trained to use it. Personnel must also receive regular training on this equipment.
  • Page 8: Isolator Switch

    1.2 Isolator switch The machine must always be equipped with a separate isolator switch in the feed power supply. The isolator switch must be easily accessible on a wall close to the machine. The external electrical isolator switch must be marked “I” and “O” to identify the position of the switch.
  • Page 9: Installation Of Machine

    2 INSTALLATION OF MACHINE 2.1 General 2.1.1 Make sure assembly and installation work is carried out WARNING! To avoid the risk of back injury, this equipment should be assembled and installed by at least two people. • • in accordance with current local regulations and rules. •...
  • Page 10: Unpacking

    2.2 Unpacking Note! been damaged in transit. is delivered: • Two cabinet keys • One folder containing documentation Remove the packaging. position as possible, when still secure to the pallet using mechanical means. pallet. Figure 1. Removal of anchoring bolts position.
  • Page 11: Scale Drawings

    2.3 Scale drawings 2.3.1 Freestanding model placed next to wall Scale drawings apply to the FD1600 and FD1610 models. Figure 2. Scale drawing Hot Water Waste connection, S, Cold Water Transformer Waste connection, P, wall Extension frame (option) Transformer: • Dimensions: 300x200x210.
  • Page 12: Freestanding Model Wall-Mounted

    Scale drawings apply to the FD1600 and FD1610 models. 84,5 Figure 3. Scale drawing Hot Water Wall bracket Cold Water Transformer Waste connection, P, wall Transformer: • Dimensions: 300x200x210. • Positioning: The transformer can be moved, see “Connecting electrical power”.
  • Page 13: Under-Bench Model

    Scale drawings apply to the FD1605 and FD1615 models. Figure 4. Scale drawing Hot Water Waste connection, S, Cold Water Extension frame Waste connection, P, (option) wall Top* * The top must be removed if the machine is installed under a bench.
  • Page 14: Assembly

    2.4 Assembly 2.4.1 Freestanding model placed next to wall Install the machine as follows: Measure out and drill the holes for the wall bracket (anti- tipper) used to secure the machine to the wall. Install the water trap to the waste outlet: •...
  • Page 15: Freestanding Model Wall-Mounted

    Install the machine as follows: Drill the holes for the wall bracket in accordance with the hole pattern. Drill the hole for attachment in the bottom frame. Fix the wall bracket (A) to the wall (B) with screws. Figure 5. Installation of the wall bracket Lift the machine and hook the beam (C) on the rear of the machine onto the wall bracket.
  • Page 16: Under-Bench Model

    Install the machine as follows: Install the water trap to the waste outlet: • The trap can be connected towards the rear (P-trap) or downwards (S-trap). • The pipe diameter is 90 or 110 mm and should be able to handle 1 liter per second. Note! Install the hose from the ventilator (option).
  • Page 17: Water Connections

    2.5 Water connections 2.5.1 General requirements Water connections should meet the requirements according to the table below. Cold water (Blue) Warm water (Red) Connection Pressure 100 - 800 kPa 100 - 800 kPa Flow rate 20 l/min at 400 kPa 20 l/min at 400 kPa pressure pressure...
  • Page 18: Electrical Connections

    2.6 Electrical connections 2.6.1 Positioning the transformer Placement alternatives: • The transformer for freestanding models can be moved: to the opposite side of the machine if so required due to water connections. Ensure that the transformer does not encroach on the area intended for detergents. and is assembled separately from the machine.
  • Page 19: Connection Diagram

    2.6.3 Connection diagram 2+PE 1N+PE -X50 -X50 Figure 10. Connection diagram 2.6.4 Coupling alternative Voltage Connection Frequency Fuse Power requirement 240 V 2+PE (TN) 2 × 15 A 3.3 kW 240 V 1N+PE (TN) 1 × 16 A 3.3 kW 230 V 1N+PE (TN) 1 ×...
  • Page 20: Inspecting The Installation

    3 INSPECTING THE INSTALLATION 3.1 When the work is complete, check that • all parts have been installed according to the installation manual. • all screws have been properly tightened. • there are no sharp edges on any parts that may come into contact with people.
  • Page 21: Function Check

    3.2 Function check WARNING! Conduct a ground continuity test before the function check and document the result. • supply voltage and that it is protected by a fuse of the correct rating as shown on the type plate. • Open the water valves and close the isolator switch. Check sounds.
  • Page 22: Control Panel

    3.3 Control panel Figure 11. Control panel Yellow: Process Economy program running Normal program Green: Process Starting a program complete Red: Error indication Display...
  • Page 23: Technical Data

    4 TECHNICAL DATA 4.1 Connections Connection Connection Flow requirements requirements Cold water (CW) 100 – 800 kPa 20 l/min (1 – 8 bar) Hot water (HW) 100 – 800 kPa 20 l/min (1 – 8 bar) Drain (D) Ø 90 mm or Ø 110 mm Top 1 l/sec 4.2 Environmental requirements Room temperature...
  • Page 24: Protection Class

    4.6 Protection class FD1600, FD1610 FD1605, FD1615 Pollution Degree Overvoltage category Protection class IP22 IP21 Max altitude* 2000m above sea level 2000m above sea level * Maximum height above sea level to use the machine. 4.7 Sound level 4.7.1 Estimated sound level Calculated sound power level L for the test object, dB ref 1 pW, is shown in the tables below.
  • Page 25: Example

    4.7.2 Example The calculated sound power level implies different sound levels L in different types of space. With larger room volumes, the sound level decreases slightly and with smaller room volumes it increases slightly. The table below shows examples of what sound level to expect in practice.
  • Page 26: Water Quality

    5 WATER QUALITY WARNING! It is the customer’s responsibility to supply the The quality of the water used in all stages of cleaning is important for good cleaning results. 5.1 Requirements The water used in each stage must be compatible with: •...
  • Page 27 5.5 to 8 Conductivity <30 μs.cm-1 <40 mg/l Maximum hardness <50 mg/l Chlorine <10 mg/l Heavy metals <10 mg/l Phosphates <0.2 mg/l as P2O5 Silicates <0.2 mg/l as SiO2 Endotoxins <0.25 EU/ml Total number of micro- <100 per 100 ml organisms...
  • Page 28: Handling Of Worn Products

    6 HANDLING OF WORN PRODUCTS This product and its accessories comply with the requirements in the WEEE directive (Waste Electrical & Electronic Equipment) 2012/19/EU. Worn-out products must be disposed of at recycling stations in accordance with local regulations. If required, contact your reseller for more information.
  • Page 29 Intentionally left blank...
  • Page 30 Intentionally left blank...
  • Page 31 AUSTRALIA FRANCE POLSKA Arjo Australia Pty Ltd Arjo SAS Arjo Polska Sp. z o.o. 78, Forsyth Street 2 Avenue Alcide de Gasperi ul. Ks Piotra Wawrzyniaka 2 O’Connor CS 70133 PL-62-052 KOMORNIKI (Pozna ) AU-6163 Western Australia FR-59436 RONCQ CEDEX Tel: +48 61 662 15 50 Tel: +61 89337 4111 Tél: +33 (0) 3 20 28 13 13...
  • Page 32 ArjoHuntleigh AB Hans Michelsensgatan 10 211 20 Malmö, Sweden www.arjohuntleigh.com ArjoHuntleigh is a world-leading provider of integrated products and solutions that improve the lives of patients and residents with reduced mobility. We help healthcare facilities deliver wellness and effective everyday care, early mobilisation, safe patient handling, venous thromboembolism prevention, pressure injury prevention, hygiene routines, bariatric care and diagnostics.
