Nimbus/DFS Service Manual
22.4.2 Nimbus 2 / DFS 2 and early Nimbus 3 / DFS 3 pumps.
22.4.2.1

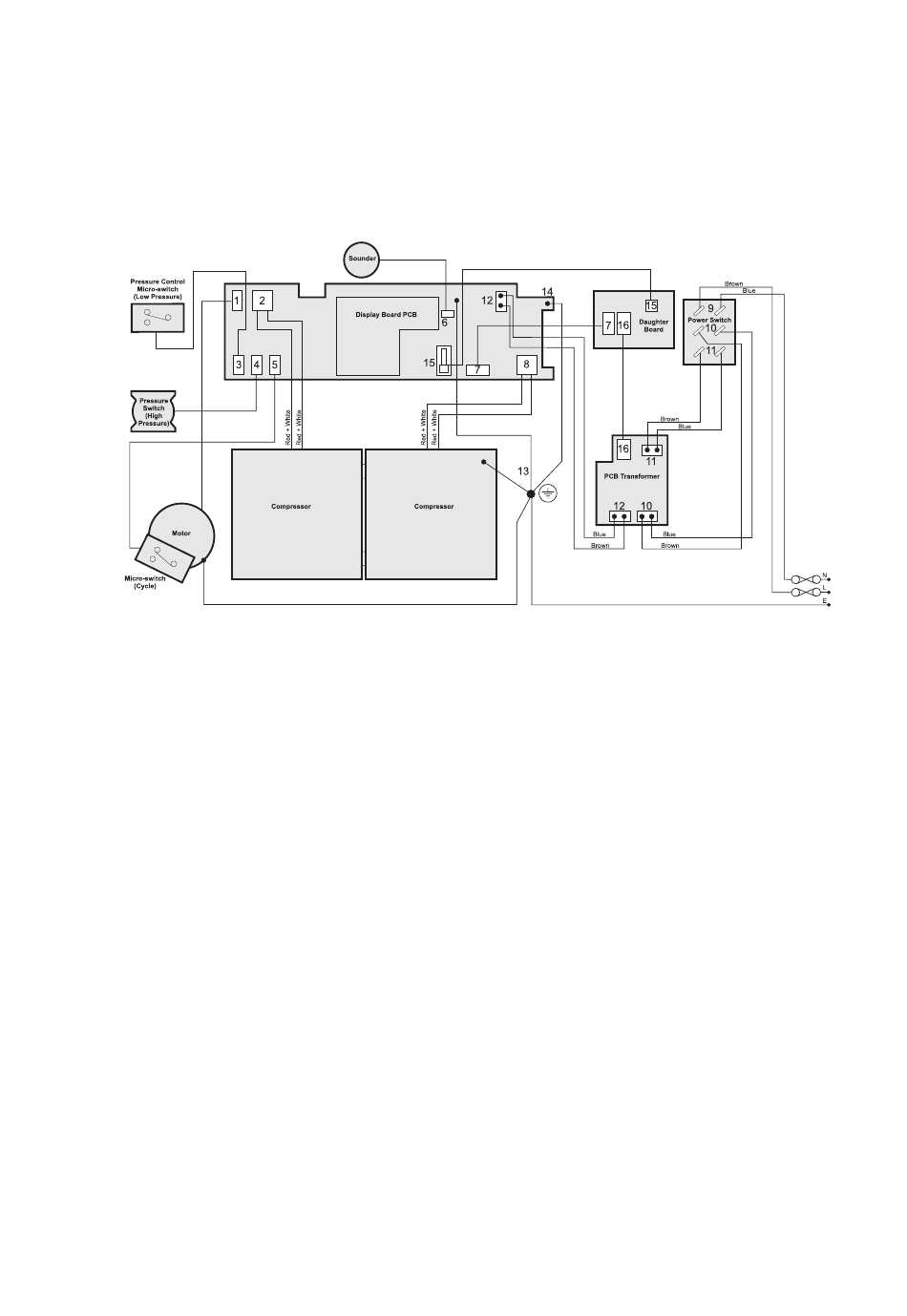

Figure 12 - Wiring Schematic for Nimbus 2/3 Pumps with 3 Circuit Boards
22.4.2.2
Issue 2
April 2010
The pumps contain the following three PCBs:
• Old-style Control PCB.
• Power Supply PCB.
• Daughter Board (this daughter board was fitted as a modification to
Nimbus 2 and DFS 2 pumps).
If any of the PCBs need replacing, then do the following:
• Replace all three PCBs with a new-style single PCB assembly (151550
for 230V, 151549 for 120V).
• Replace the old-style front panel assembly with a new-style one.
• The remaining mains/power components in the pump stay unchanged.
SER0001
Pump Repair
Chap 3
Page 23
