Nimbus/DFS Service Manual
31.5 Connect the tubes to the valves as shown in Figure 64.
31.6 Remove the straight connectors from the manifold outlets that feed the top five cells of the
mattress. Connect the two 'T' pieces to the manifold outlets. Fit blanking plugs to the three top
manifold outlets (Figure 65).
31.7 Check the integrity of all the connectors to ensure they are securely fitted.
31.8 Switch the pump ON and check that the pressure in the three head cells alternates satisfactorily
in dynamic mode.
31.9 Check that the WAIT, HIGH PRESSURE and LOW PRESSURE indicators still function correctly.
31.10 Check the Alarm system still functions correctly.
31.11 When satisfied that the modified bed is operating satisfactorily, close the manifold to the bed
with the pop studs and zip up the top cover.
Issue 2
April 2010

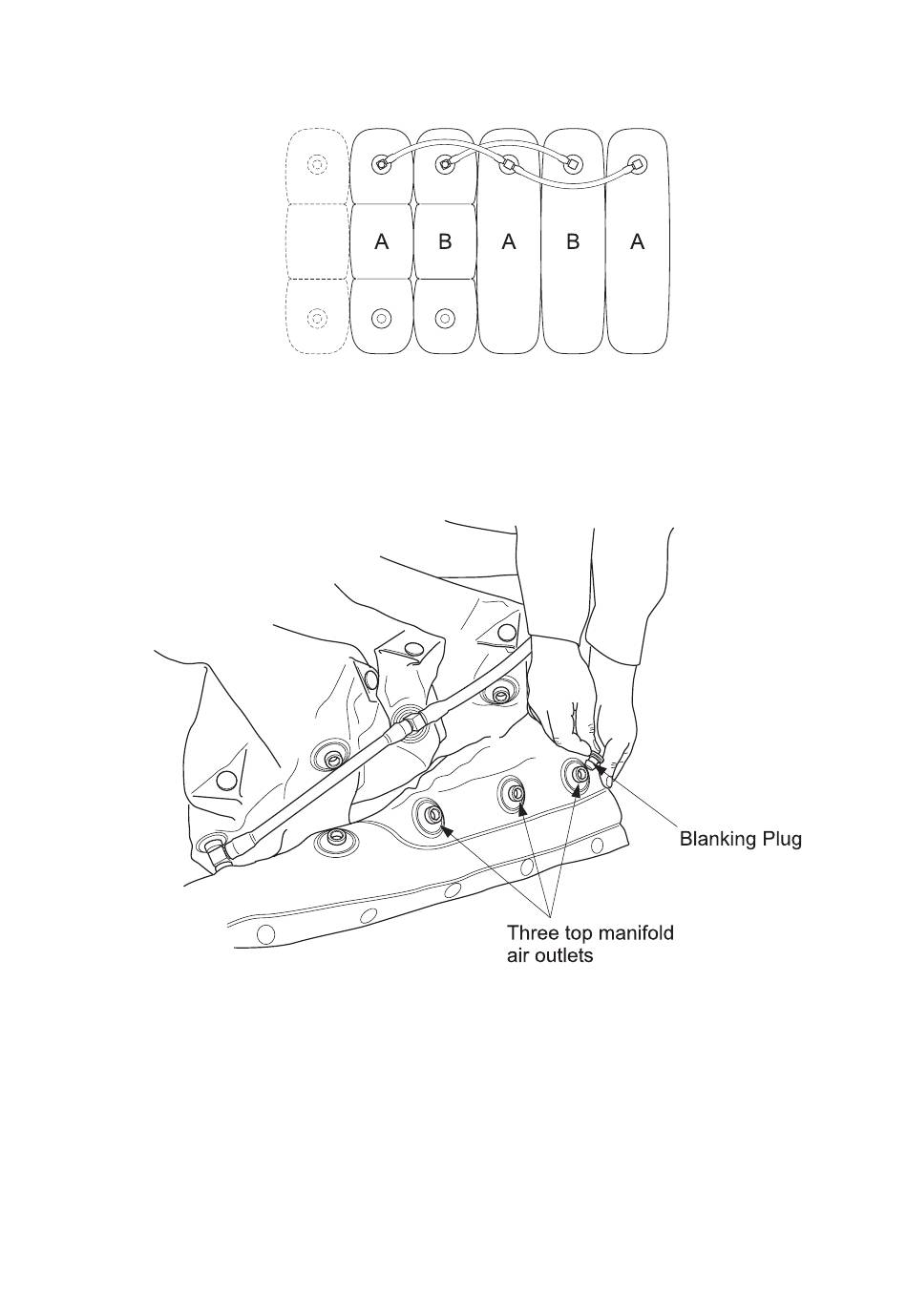

Figure 64 - Connect the tubes (Configuration 1)
Figure 65 - Fit blanking plugs (Configuration 1)
SER0001
Mattress Repair
Chap 4
Page 35
