Testing
7.6 If at any time during the testing, the infrared data transmission status indicates Communication
unsuccessful , then press the STATIC and MUTE buttons together on the pump.

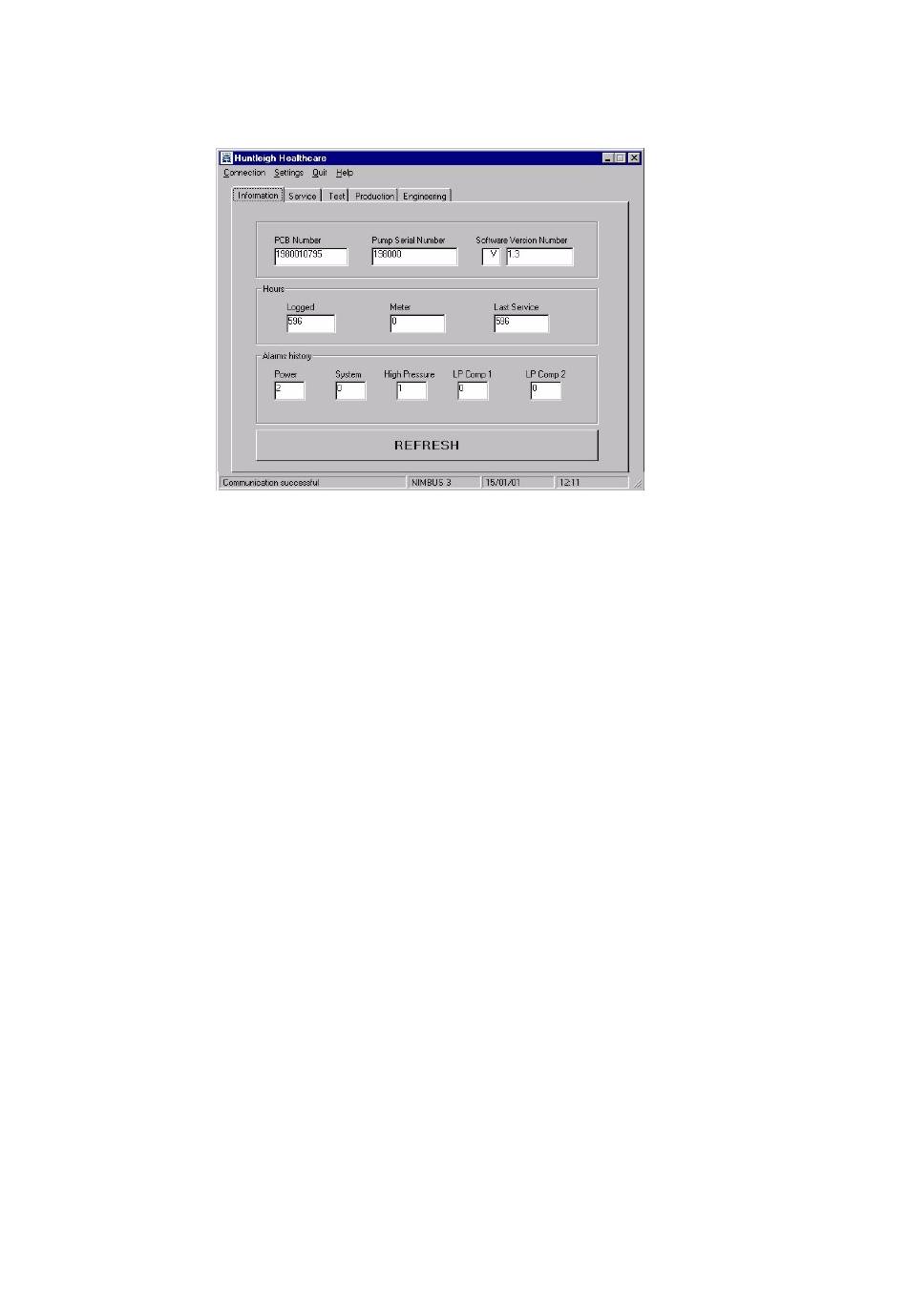

Figure 87 - Information Tab on the PC connected to the IR Interface
7.7 IR Interface Passwords:
• The Information tab is not password protected.
• The other four tabs (Service, Test, Production and Engineering) are password protected. Each of
these tabs has a separate unique password.
• When any of the four password protected tabs is selected, an Enter Password dialog box is
displayed. Type in the password, and click OK.
• If the password is correct, the particular tab will be displayed.
• If the password is incorrect, access to the tab will be denied, and an Invalid Password dialog box
will be displayed. Click OK and select the tab again to re-enter the password.
• The password for the Service tab is SERVICE.
• The password for the Test tab is TEKKICHECK.
• Passwords are not case sensitive.
Note: The Production and Engineering tabs are for internal ArjoHuntleigh use only. Should it be
necessary to access either of these two tabs, please contact ArjoHuntleigh who will supply the
relevant passwords to access the tabs.
