Note: If one connector body has already been fitted to the tubeset extrusion, make
sure that both connector bodies are orientated as shown in Figure 52.
23.5.4 Push the end of the tubeset extrusion fully onto the outlet ports on the connector body,
so that the end of the tube extrusion is flush with connector body.
Note: The tubeset extrusion is a very tight fit on the connector assembly.
23.5.5 After it has been assembled, check the security of the tubeset extrusion on the
connector assembly. If it is NOT a tight fit, do the following:
23.5.5.1
23.5.5.2
23.5.5.3
23.6 Install the front cover (Fig 51, Item 20) onto the connector body (Fig 51, Item 10), as follows:
23.6.1 Insert the two springs (Fig 51, Item 40) into the slots in the sides of the connector body
(Refer to Figure 51).
Note: The sides of the slot will hold the top of the spring in position.
23.6.2 Position the connector body on top of the front cover (Refer to Figure 57).
23.6.3 Put the ends of the two springs on the bottom of the connector body into the slots in the
bottom of the front cover (Refer to Figure 57).
23.6.4 Push the connector body downwards and the front cover upwards to compress the two
springs (Refer to Figure 55).
23.6.5 When fully compressed, use a small flat-bladed screwdriver to push the top of the
connector body under the slot in the top centre of the front cover, until it "clicks" into
position (Refer to Figure 55).
Front Cover
Connector Body
Spring
23.7 Install the rear cover (Fig 51, Item 30) onto the front cover (Fig 51, Item 20), as follows (Refer to
Figure 58):
23.7.1 At the top of the connector assembly, locate the four holes in the top of the rear cover
over the four lugs in the top of the front cover.
23.7.2 At the bottom of the connector assembly, push the two bottom corners of the rear cover
into the slots in the front cover, until they "click" into position.
Issue 2
April 2010
Remove the tubeset extrusion from the connector body (Refer to Para 23.4).
Check the tubeset extrusion and the outlet ports on the connector body, and
repair or replace as necessary (Refer to Paras 23.5.1 and 23.5.2).
Re-assemble the tubeset extrusion onto the connector assembly (Refer to
Paras 23.5.3 and 23.5.4).

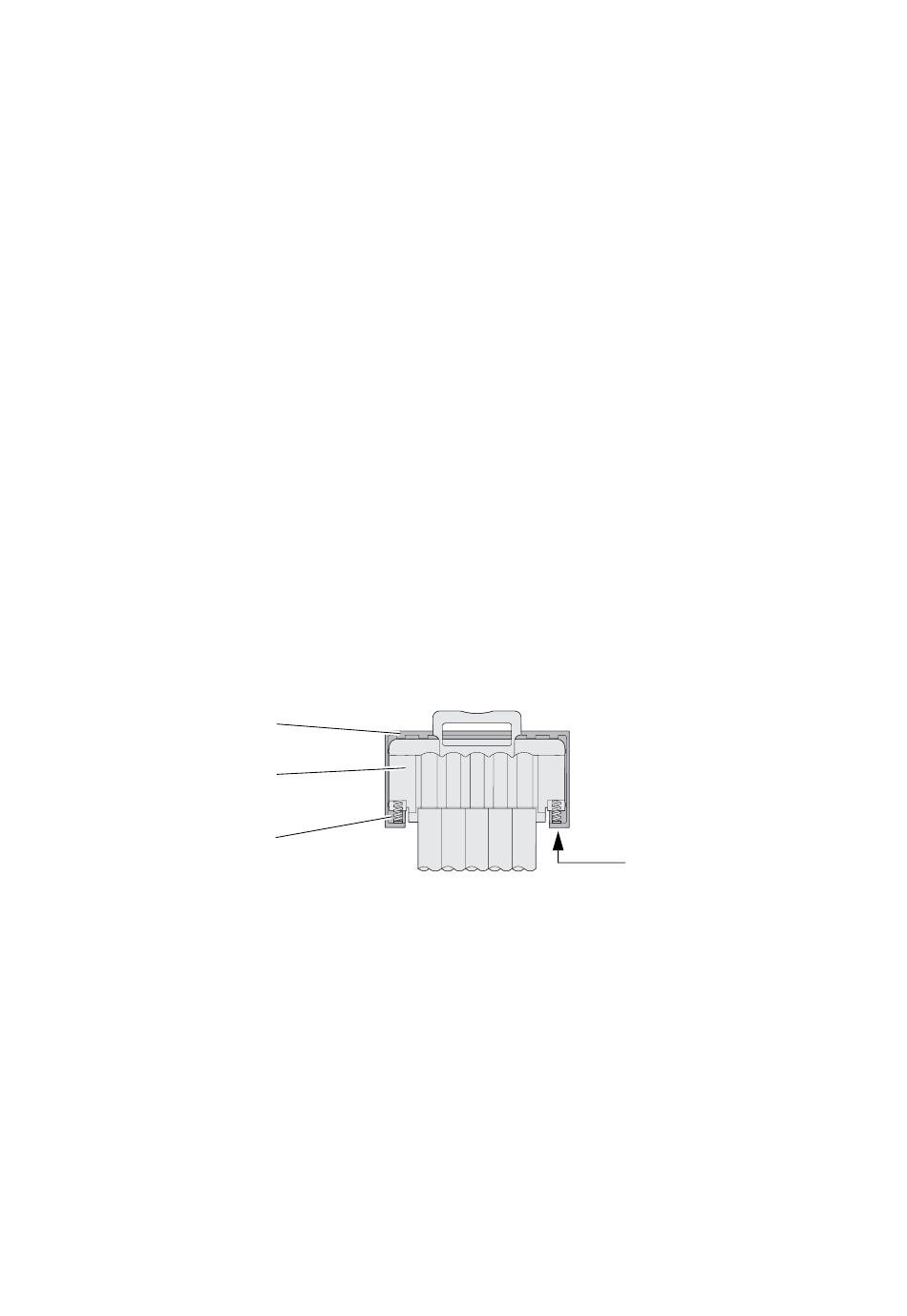

Figure 57 - Installing the Front Cover
SER0001
Mattress Repair
Slot in Connector Body
