Nimbus/DFS Service Manual Introduction

Static Mode

In static mode the support surface is kept constant and provides pressure reduction without cycling. The
rotary valve is held in a constant position so that cells A, B, C and the heel protector are equally inflated.

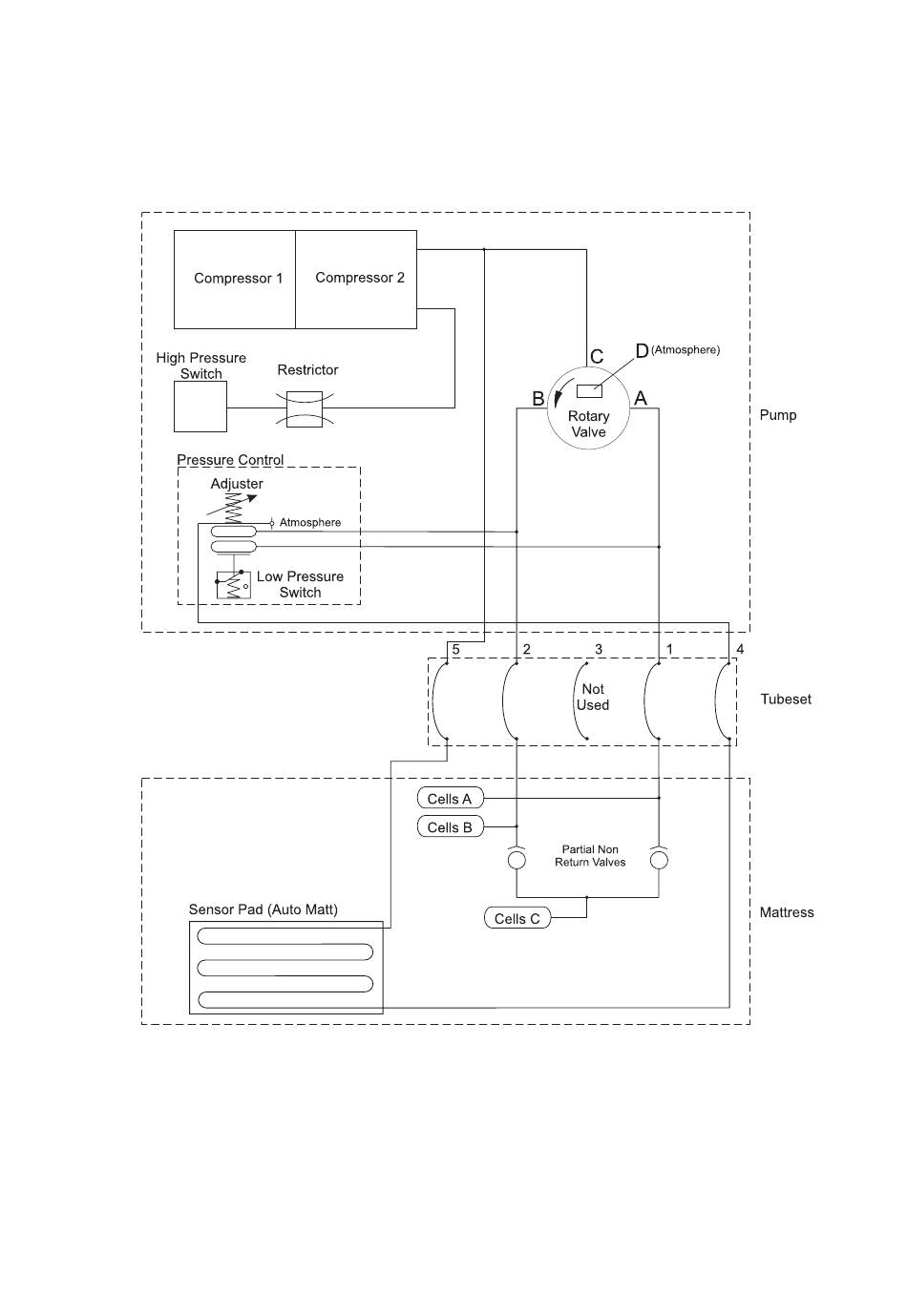

Figure 2 - Pneumatic System Diagram

Auto-Matt

The Auto-Matt sensor consists of a flexible air sensor pad which is located underneath the mattress cells.
This acts as a pressure regulator and accommodates changes in patient weight and position in the
following manner:
Issue 2 Chap 1
April 2010 SER0001 Page 3
