2 High/Low Pressure Setpoint Checks and Mute Mode Check using the
Psion Organiser

Psion Organiser Setup

2.1 Refer to Page 11, Section 6 to set up the Psion Organiser.

High Pressure Switch Setpoint Check

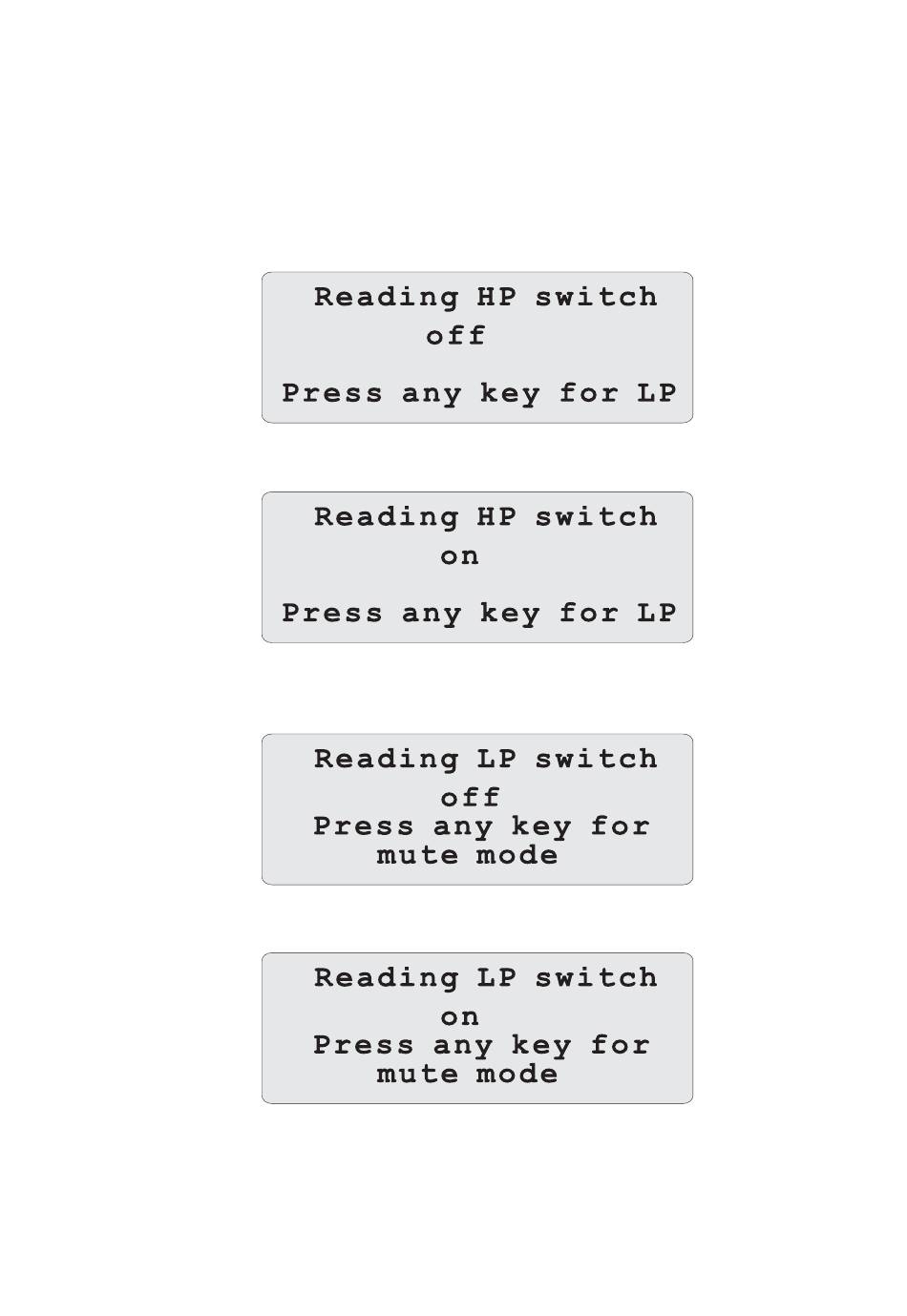

2.2 Select Inputs from the Psion menu. The Psion will now display:
2.3 Slowly occlude the tubeset loop between ports 4 and 5 and record the pressure on the
manometer at which the Psion display changes to:

Low Pressure Switch Setpoint Check

2.4 Press any key on the Psion, except for Q. The Psion will now display:
2.5 Remove the tubeset adaptor from the pump manifold and record whether or not the display
changes to:
2.6 Reconnect the tubeset to the pump.
