Testing

Static Mode Pressure Tests

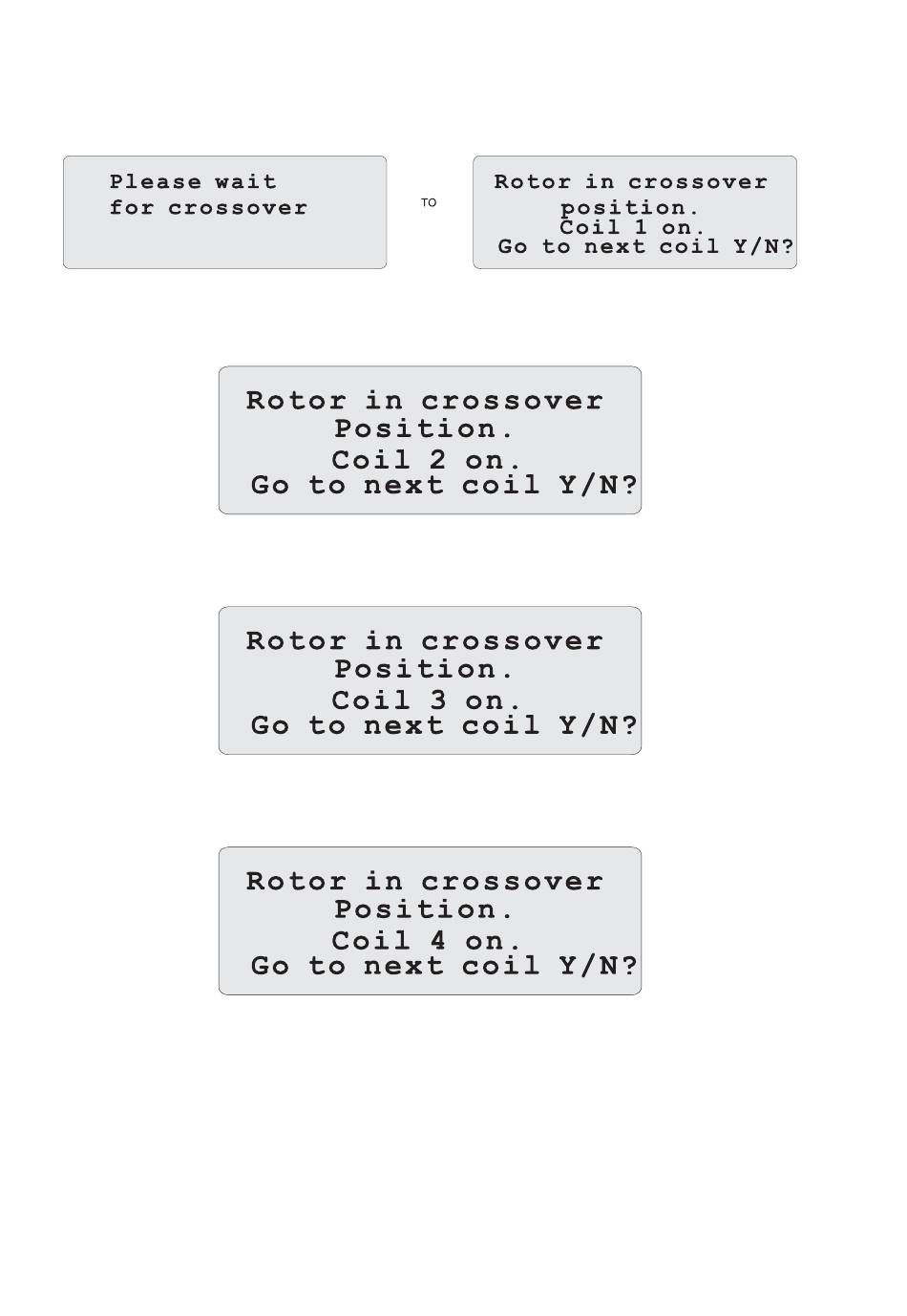

4.2 Select Test from the Psion menu. Wait (for up to 5 minutes) until the Psion display changes
from:
4.3 Record the manometer reading for coil 1, with the comfort control set to minimum and maximum
settings.
4.4 Press Y on the Psion. The Psion will now display:
4.5 Record the manometer reading for coil 2, with the comfort control set to minimum and maximum
settings.
4.6 Press Y on the Psion. The Psion will now display:
4.7 Record the manometer reading for coil 3, with the comfort control set to minimum and maximum
settings.
4.8 Press Y on the Psion. The Psion will now display:
4.9 Record the manometer reading for coil 4, with the comfort control set to minimum and maximum
settings.
