X-Ref Target - Figure 1-36CORE Generator

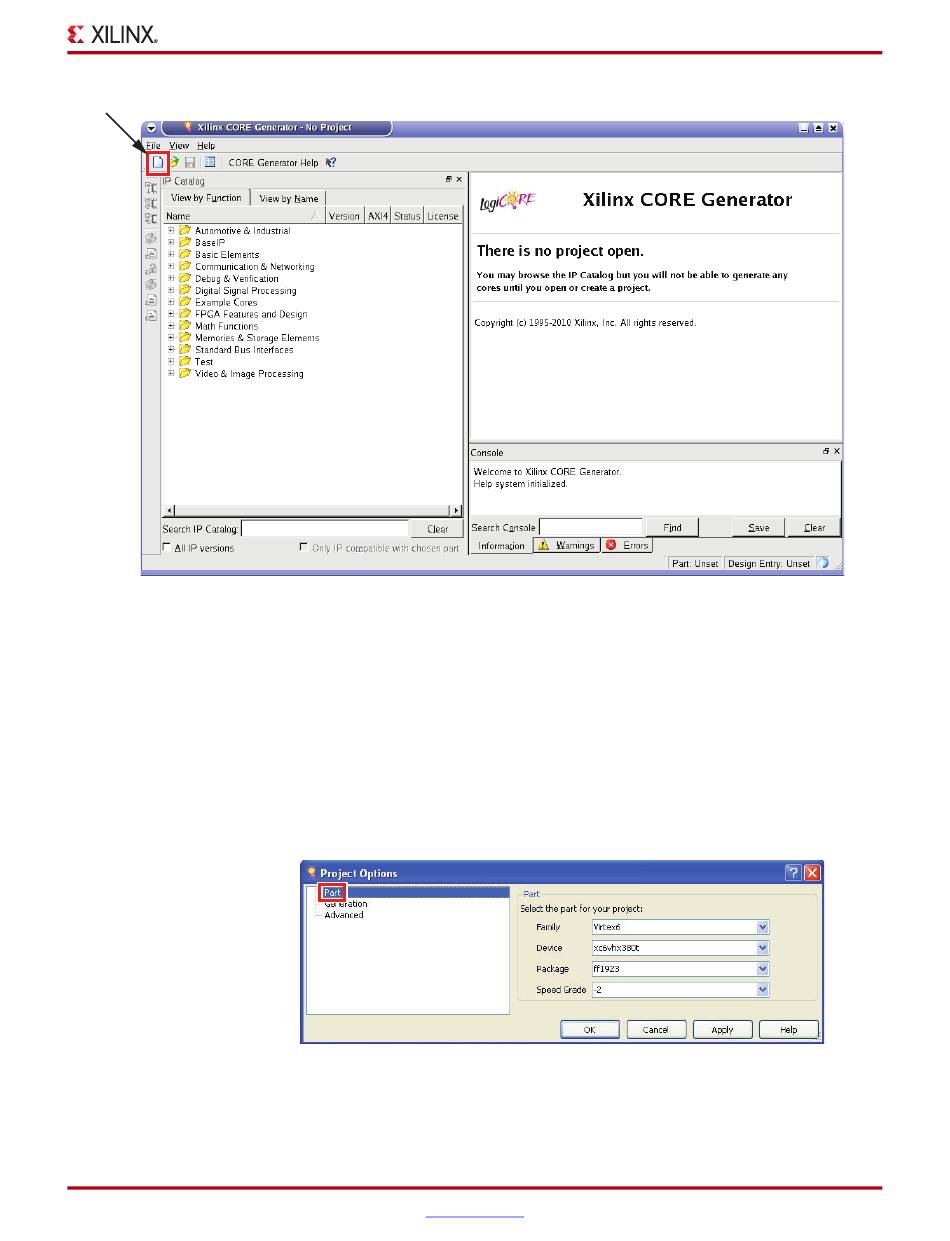

Figure 1-36: Open New Project Icon, CORE Generator Project Window
3.
4.
X-Ref Target - Figure 1-37
ML628 IBERT Getting Started Guide
UG806 (v1.0) May 20, 2011
When the the New Project dialog window opens (not shown), name the project and
click Save.
In the Project Options window, click on Part and select the parameters listed here:
• Family: Virtex6
• Device: xc6vhx380t
• Package: ff1923
• Speed Grade: -2
Figure 1-37 shows the correct settings.
Figure 1-37: CORE Generator Project Options (Part Options)
