1.
X-Ref Target - Figure 1-31
2.
X-Ref Target - Figure 1-32
ML628 IBERT Getting Started Guide
UG806 (v1.0) May 20, 2011
In the Project Panel, double-click VIO Console

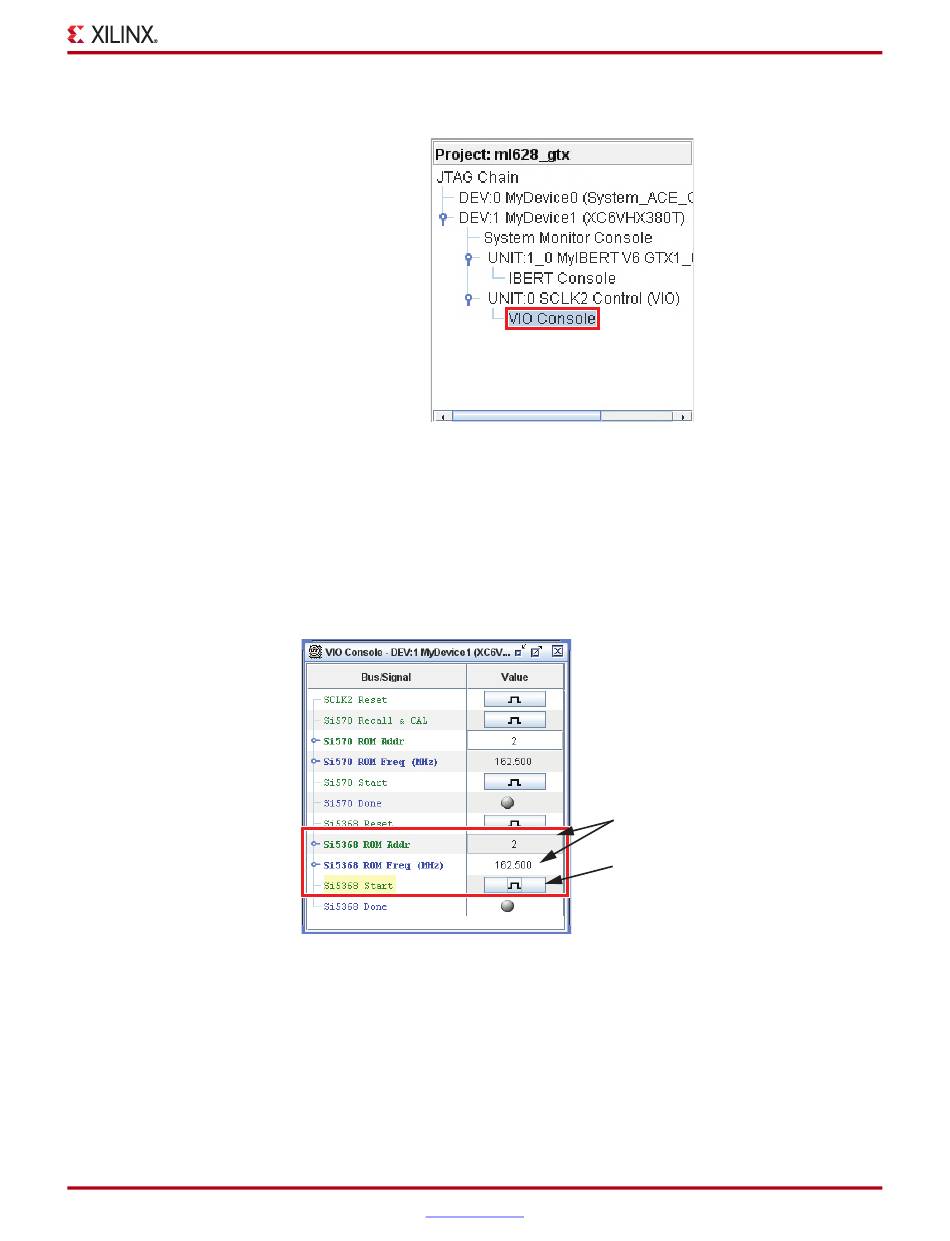

Figure 1-31: Project Panel - VIO Console (GTX)
The clock sources on the SuperClock-2 module are controlled from the VIO Console.
Click on the Si5368 Start button
Note:
The ROM address values for the Si5360 and Si570 devices (i.e., Si5368 ROM Addr and
Si570 ROM Addr) are preset to 2 to produce an output frequency of 162.500 MHz. Entering a
different ROM address changes the reference clock(s) frequency. The complete list of
pre-programmed SuperClock-2 frequencies and their associated ROM addresses is provided in
Table 1-2, page 31.
Figure 1-32: Si5368 Address, Frequency and Start Button
www.xilinx.com
Running the GTX IBERT Demonstration
(Figure 1-31).
UG806_c1_31_052011
(Figure 1-32) to enable the clock output.
The ROM address value for the
Si5368 clock multiplier is preset to 2
(162.690 MHz)
Si5358 start button
UG806_c1_32_041411
