1.18.3.4.1 Sequence with 4 times exposure A followed by 1 time exposure B
If you have an external trigger, you can use the counter and timer to create longer exposure sequences.
For example, if you want a sequence with 4 times exposure A followed by 1 time exposure B you can count the
trigger events. That means practically:
1. Use Counter1 to count 5 trigger signals then
2. issuing Timer2 for the long exposure time (re-triggered by Counter1End).
3. Every trigger issues Timer1 for the short exposure.
4. Afterwards, an AND gate followed by OR gate combines the different exposure times.
In wxPropView (p. 65) it will look like this:

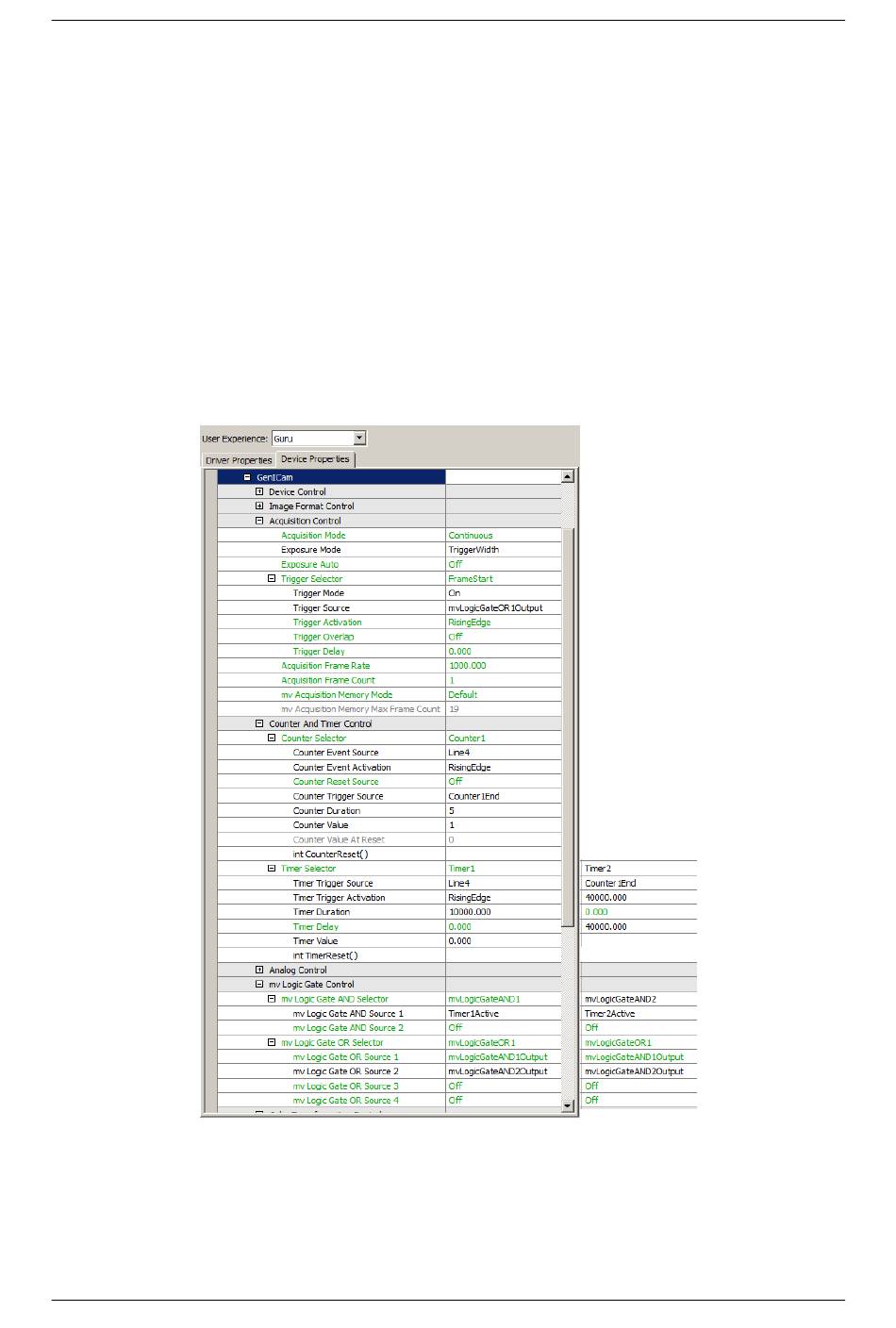

Figure 3: wxPropView - Logic gate setting 2
