1.18 Use Cases
For the master camera, there are 2 possibilities how it is triggered:
1. The master camera triggers itself logically (so called "Master - Slave", see Figure 1), or
2. the master camera uses the external trigger signal, which was created by itself, via digital input (so called
"Slave - Slave", see Figure 2).
Note
With "Master - Slave" and according to the delay of the opto-isolated inputs of the slave cameras, you
have to adapted the property "Trigger delay" of the master camera to synchronize the cameras exactly.
1.18.7.1.3 Programming the acquisition
You will need two timers and you have to set a trigger.
MATRIX VISION GmbH

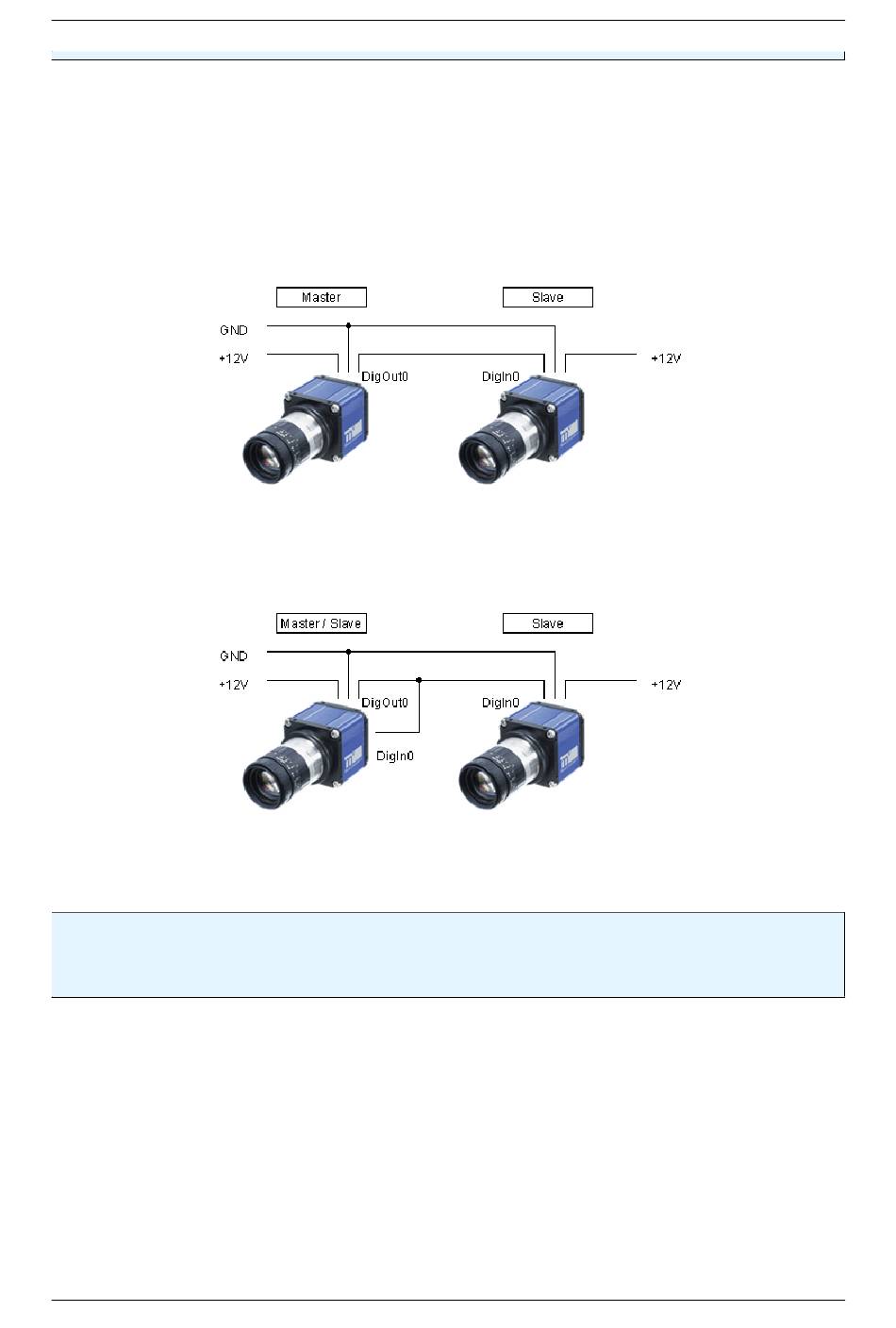

Figure 1: Master - Slave connecting
Figure 2: Slave - Slave connecting
