1.18.6.2 Reset timestamp by hardware

This feature can be used
• for precise control of timestamp
– for one camera or
– to synchronize timestamp of multitude of cameras.
The latter sample, can be achieved by following steps:
1. Define the input line ("TriggerSource") to reset the timestamp, e.g. "Line5" and
2. set the "Trigger Selector" to "mvTimestampReset".
3. Connect all input lines of all cameras together.
4. Finally, use one output of one camera to generate reset edge:

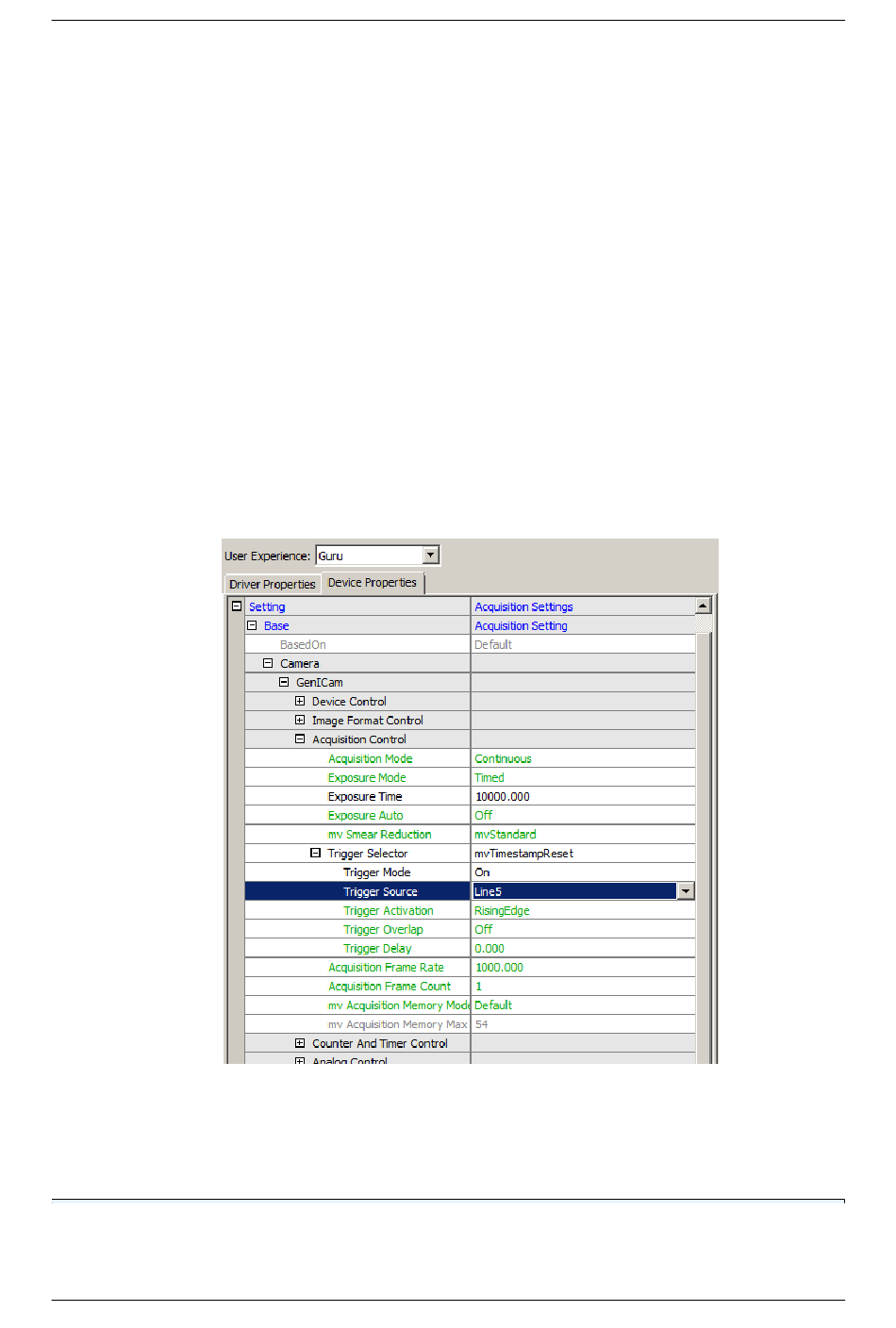

Figure 1: wxPropView - Setting the sample
