1.18 Use Cases
The timers are defined, now you have to set the digital output, e.g. "Line 0":
// Set Digital I/O
GenICam::DigitalIOControl io(pDev);
io.lineSelector.writeS( "Line0" );
io.lineSource.writeS( "Timer2Active" );
See also
Digital I/O Control (p. 80)
This signal has to be connected with the digital inputs of the application.
1.18.3.2.3 Programming the pulse width modulation with wxPropView
The following figures show, how you can set the timers using the GUI tool wxPropView (p. 65)
1. Setting of Timer1 (blue box) on the master camera:
MATRIX VISION GmbH

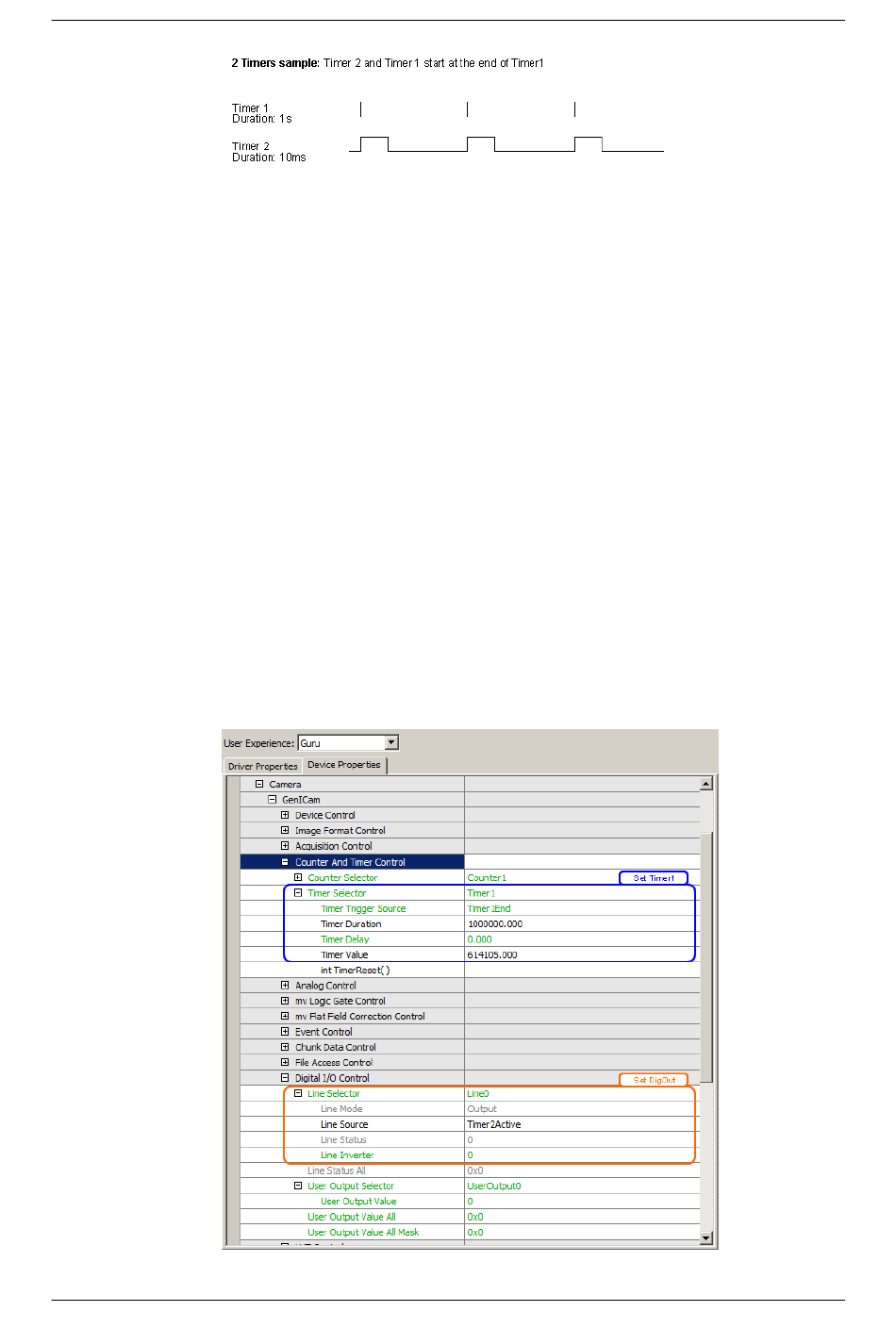

Figure 1: Timers
Figure 2: wxPropView - Setting of Timer1
