Balluff MATRIX VISION mvBlueNAOS Technical Manual page 195

1.18 Use Cases
1.18.5.2.2 Working with the user sets
You can find the user set control in "Setting -
With "User Set Selector" you can select the user set ("Default", "UserSet1 - UserSet4"). To save or load the specific
user set, you have two functions:
• "int UserSetLoad()" and
• "int UserSetSave()".
"User Set Default" is the property, where you can select the user set, which comes up after hard reset.
Finally, with "mv User Data" you have the possibility to store arbitrary user data.
MATRIX VISION GmbH
Base - Camera - GenICam -

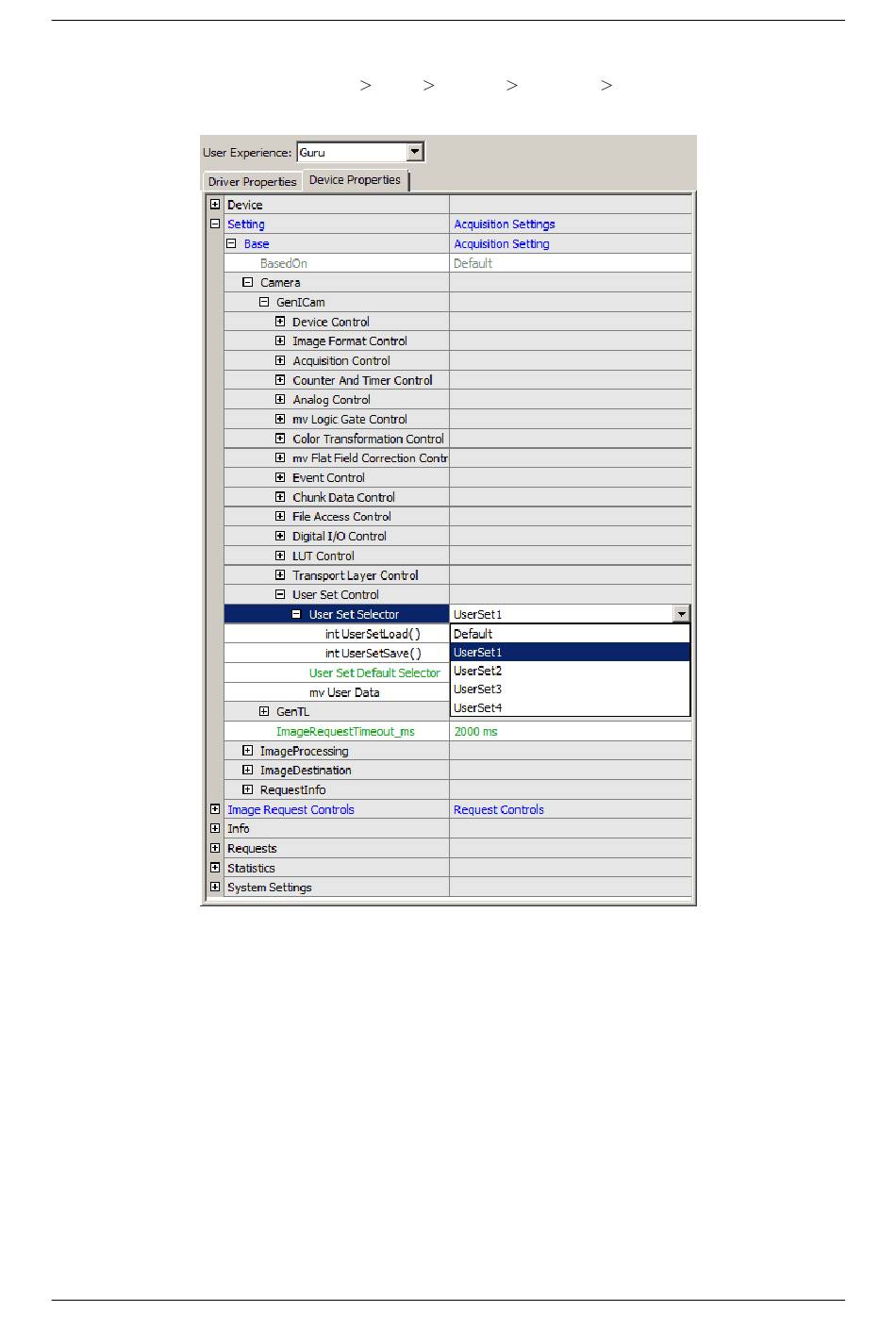

Figure 1: User Set Control
User Set Control":
187
