Naos For Embedded (N4E) Interface - Balluff MATRIX VISION mvBlueNAOS Technical Manual

1.9 Technical Data

1.9.3 NAOS for Embedded (N4e) Interface

The NAOS for Embedded (N4e) interface provides PCIe Gen.2 and various I/O functionality on a single 70-pin
Board-to-Board connector. The main features of the user I/O interface are
• 4 digital inputs,
• 4 digital outputs,
• a UART interface for serial communication, and
• a I2C two wire serial interface.
"Camera connector"
• Hirose DF40GB(3.0)-70DS-0.4V
"Mating Connector"
Used for accessory IO Boards or customer implementation.
• Hirose DF40GB-70DP-0.4V
"Mechanical characteristics"
• 70-pin, 0.4mm pitch, shielded, stacking height: 3.0mm
• Steel spacers (height 3mm). Screws M1.6, max. screw depth 1.8mm.
MATRIX VISION GmbH

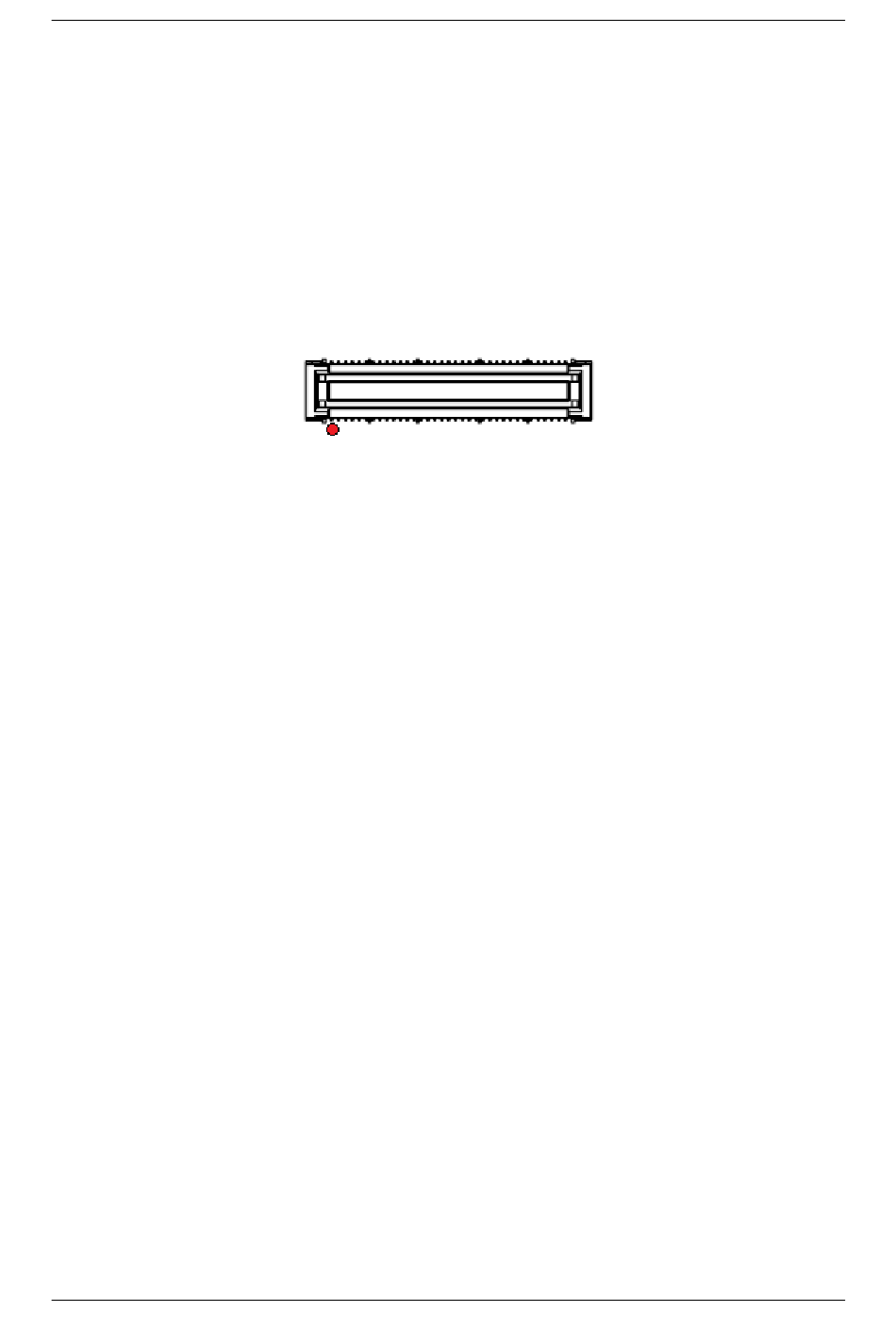

Figure 4: NAOS for Embedded (N4e) interface
