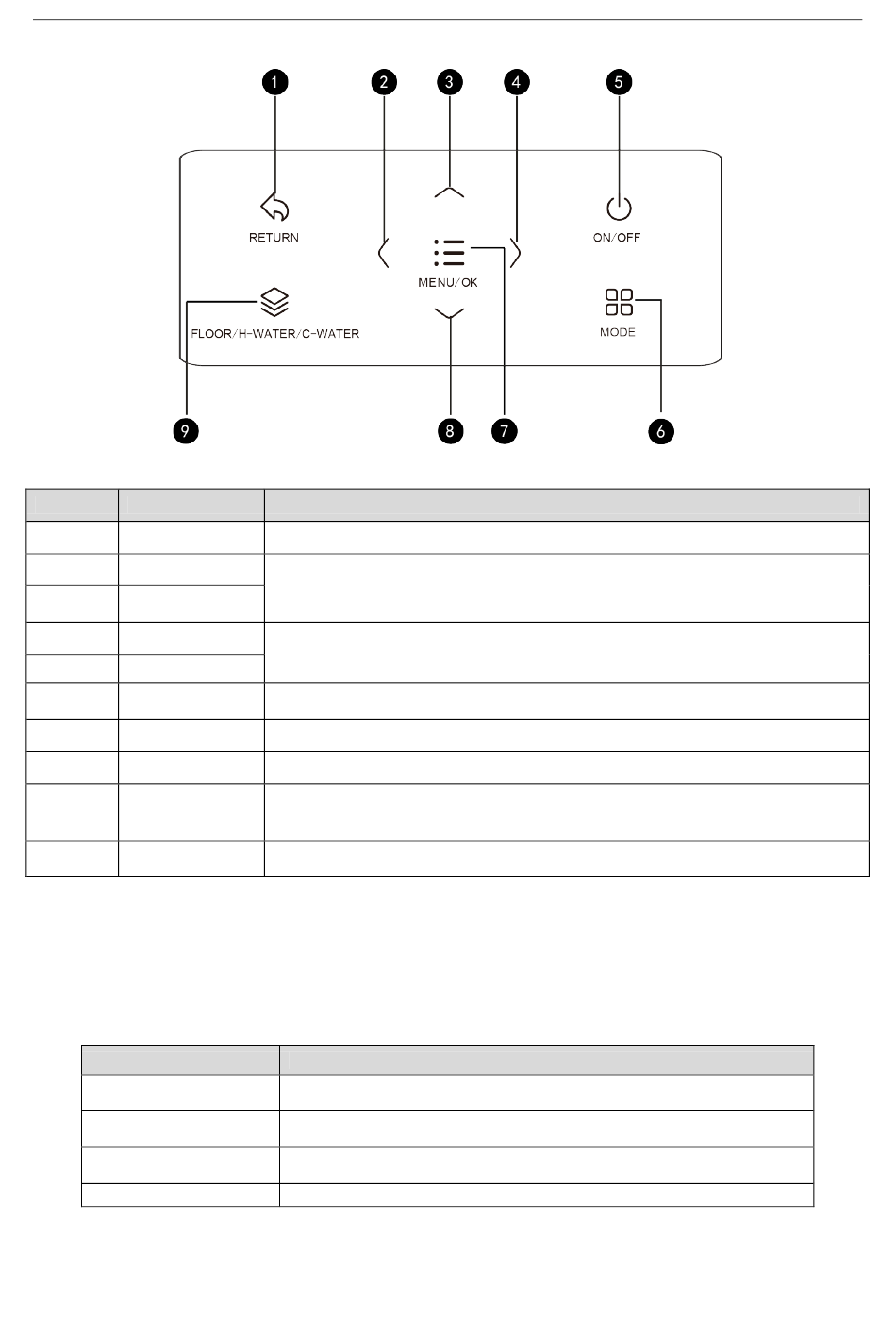

4.3.3.2 Button Graphics
Function instruction of buttons as follow：
Button No. Button name
1 RETURN
3 Up
8 Down
2 Left
4 Right
5 ON/OFF
6 MODE
7 MENU/OK
FLOOR/H-WATER
9
/C-WATER
3+8 Child lock
4.3.3.3 Function Setting
Under hot water or floor heating interface and press "MENU/OK" button to enter corresponding
function menu, e.g., under hot water interface, press "MENU/OK" button to enter hot water menu, select
"Function" in menu to enter hot water function setting interface.
Under ON/OFF status, the available function for hot water is as follow:
ON/OFF
Standard hot water mode
Preset hot water mode
Night hot water mode
OFF
Turn on/off hot water or floor heating function;
Under hot water interface, it is used to switch the operation mode of hot water function
Under home page, it is used to switch floor heating and hot water interface (The cold
water function is reserved, and it is temporarily impossible to switch to the cold water
Simultaneously press " Up " and " Down " for 5s to enter or cancel the Child Lock
Sun-flower, automatic hot water temp. setting, high-temp sterilization and
Automatic hot water temp. setting, high-temp sterilization and rapid water
Automatic hot water temp. setting, high-temp sterilization and rapid water
77
GMV6 HR DC Inverter VRF Units Service Manual
Button function
Return to the previous interface
Set water temperature;
Move the cursor;
Set or view parameters
Turn page;
Move the cursor;
Set or view parameters
return to the home page
Enter menu or confirm the set
interface)
function
Function
rapid water heating
heating
heating
