4.3.2 Temperature Sensors
Specifications
Two types of temperature sensors of different specifications are used,
including 50K and 20K.

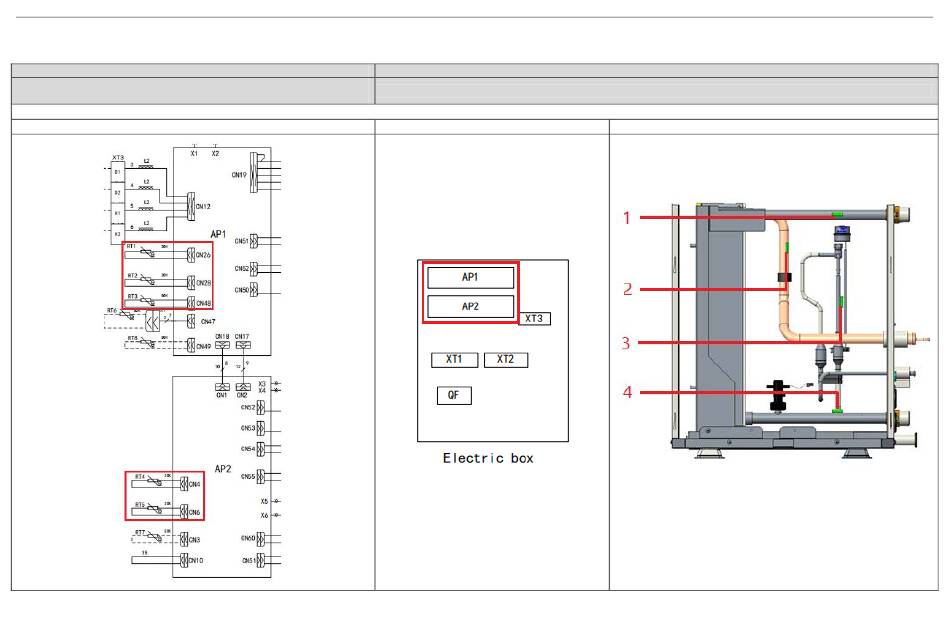

Circuit diagram
The sensors are used to measure the temperature of the unit at different positions.
Models: NRQR16L/A-T、NRQR30L/A-T
Layout of electrical appliance box
315
GMV6 HR DC Inverter VRF Units Service Manual
Description
Physical position
1 Water outlet temperature sensor RT5
2 Pipe-out temperature sensor RT2
3 Pipe-in temperature sensor RT1
4 Water inlet temperature sensor RT4
