5.1.4 Removing the Compressor
Step 1: Preparations before replacing
(1) Make sure that all the spare parts for replacement are in place.
During the handling of the old and new compressors, do not place the compressor flat or
place it upside down. The compressor needs to be placed with an angle of less than ±30°. The
lubricant of the compressor must not outflow from the pipe. Make sure that the compressor air inlet,
air outlet and vapor injection tube opening are sealed. If the sealing rubber block is missing, use
rubber tap to seal it to prevent direct contact between oil in the compressor and air.
GMV6 HR DC Inverter VRF Units Service Manual

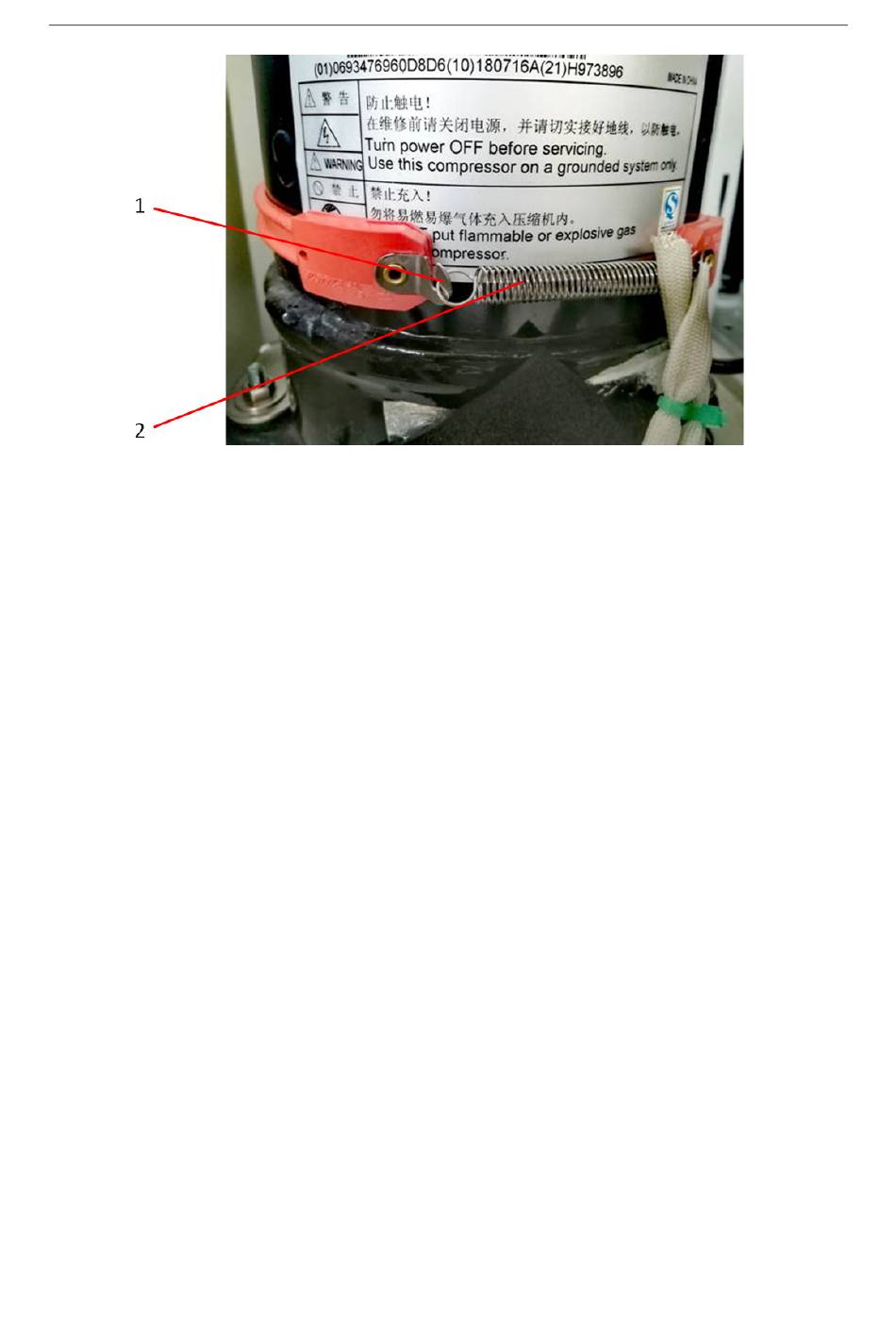

1 — buckle 2 — spring hook
