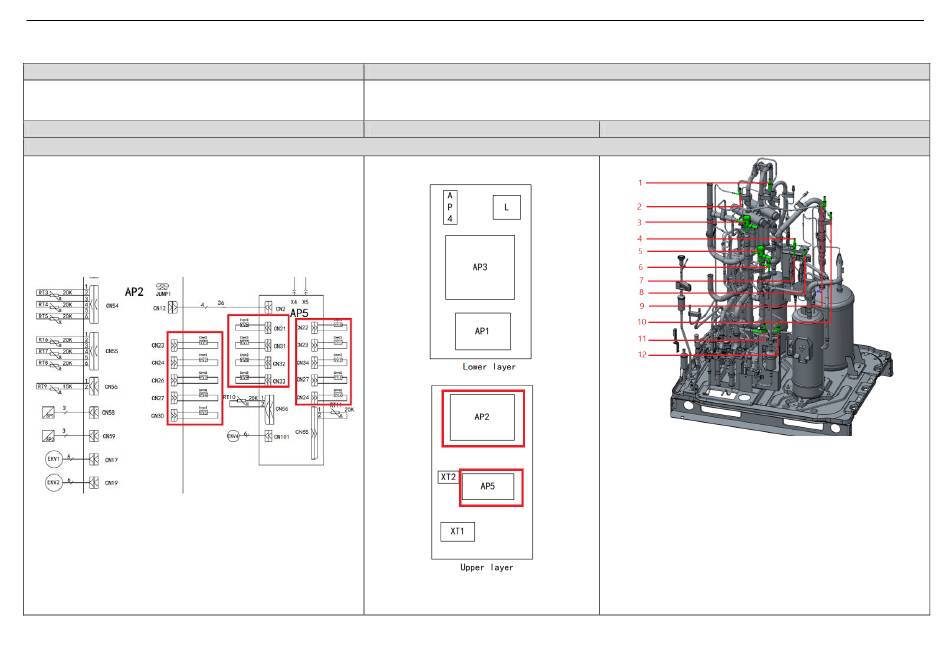

4.1.3 Solenoid Valve
Specifications
The coil is for providing the electromagnetic force for the
action of magnet valve;
Circuit diagram
The solenoid valve is used to control the on-and-off of the pipeline. The valve of the unit is solid closed. That is,
the valve is closed when it is inactive, open when it is active.
Layout of electrical appliance box
Models: GMV-VQ224WM/C-X、GMV-VQ280WM/C-X、GMV-VQ335WM/C-X
243
GMV6 HR DC Inverter VRF Units Service Manual
Description
Physical position
1 Pressure valve YV10
2 Inlet liquid valve YV11
3 High pressure valve YV7
4 Gas balance valve YV12
5 Low pressure valve YV8
6 Low pressure bypass valve YV9
7 Low- temperature oil return solenoid valve YV3
8 Oil return solenoid valve YV2
9 Air by-pass valve YV5
10 Drain valve YV14
11 Valve of subcooler YV4
12 High pressure bypass valve YV13
