2.126 "L9" Inconsistent Number of Indoor Units Under Integrated
Control
Fault display: wired controller of indoor unit and receiver of indoor unit display
Applicable models: all indoor units
Fault diagnosis:
When more than 16 indoor units are connected to the wired controller or the number of indoor units
connected to the wired controller is not the same as what is configured under integrated control, the fault
is generated.
Possible causes:
■ More than 16 indoor units are connected to one wired controller;
■ The number of indoor units connected to the wired controller is not the same as what is configured
under integrated control.
Troubleshooting:

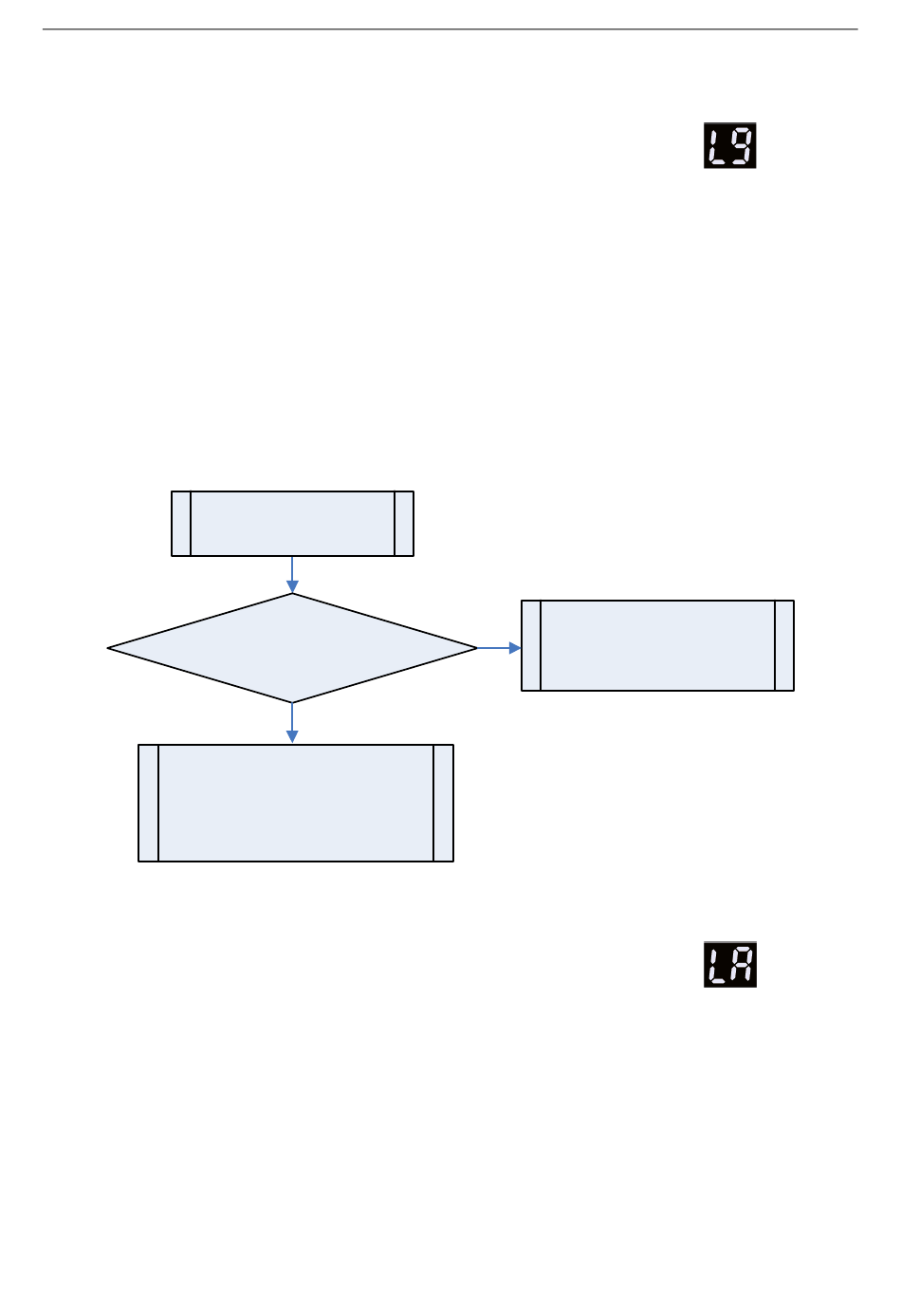

"L9" Inco nsi stent Number
16 indo or units are connected to the
Enter th e wire d controlle r p arameter
settings (P14) to set the numbe r of
indo or units unde r in teg rate d control
to b e the same a s th e n umber of
indo or units th at are conne cted to the
2.127 "LA" Inconsistent Series of Indoor Units Under Integrated
Control
Fault display: wired controller of indoor unit and receiver of indoor unit display
Applicable models: all indoor units
Fault diagnosis:
When the wired controller detects that the multiple indoor units connected to it belong to different
series, the fault is generated.
Possible causes:
■ The multiple indoor units connected to the wired controller belong to different series.
Troubleshooting:
Make sure that the multiple indoor units connected to the wired controller belong to the same series.
of Indo or Units Unde r
Inte grated Co ntro l
Whether more th an
wired controller?
No
wired controller
GMV6 HR DC Inverter VRF Units Service Manual
Set the wired controller so that
Yes
one wired controller can only
control 16 indo or units at most
