5.3.2.5 Remove the side plate, water pipe joint, sealing plate

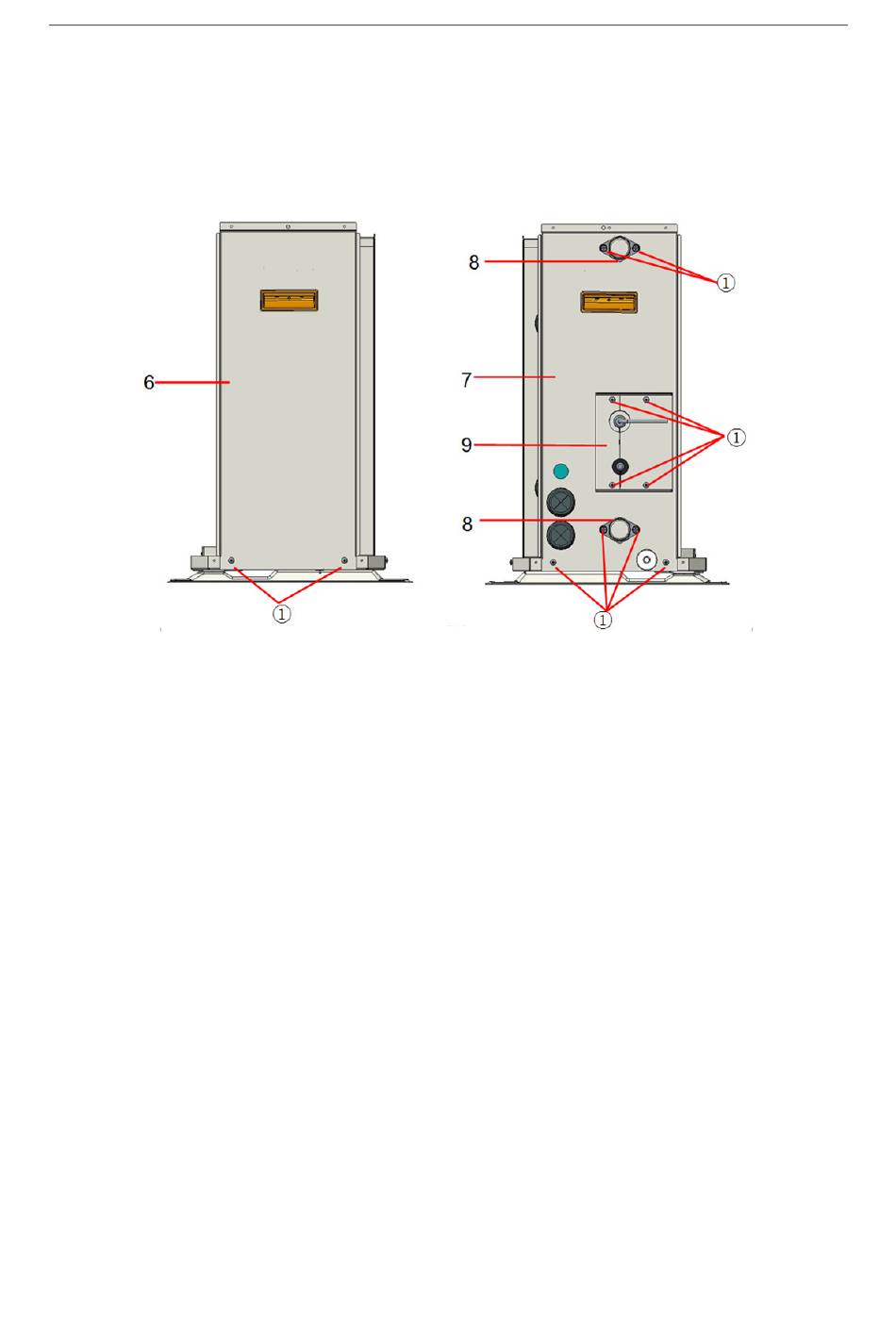

(1) Use screwdriver to remove the screws① that fix side plate, water pipe joint, sealing plate;
(2) Remove the left side plate 6 from the unit;
(3) Remove the water pipe joint 8 and sealing plate 9 from the right side plate;
(4) Remove the right side plate 7 from the unit.
6-left side plate
5.3.3 Disassembly and assembly operation of main board of hydro
box
Preparation
(1) Cut off the power supply of unit system.
(2) Remove the top cover, please refer to section 5.3.2.1 Remove the Top Cover.
(3) Remove the front panel, please refer to section 5.3.2.2 Remove the Front Panel and Rear
Panel of Unit.
(4) Remove the electric box cover, please refer to section 5.3.2.3 Remove the Electric Box
Cover.
Removing procedure
(1) Unplug all the plugs1 on the main board as shown in the figure.
(2) Carefully push the buckle 2 of fixing block as shown in the figure, remove the main board
from the fixing block.
7-right side plate
GMV6 HR DC Inverter VRF Units Service Manual
8-water pipe joint
375
①-screw
9-sealing plate
