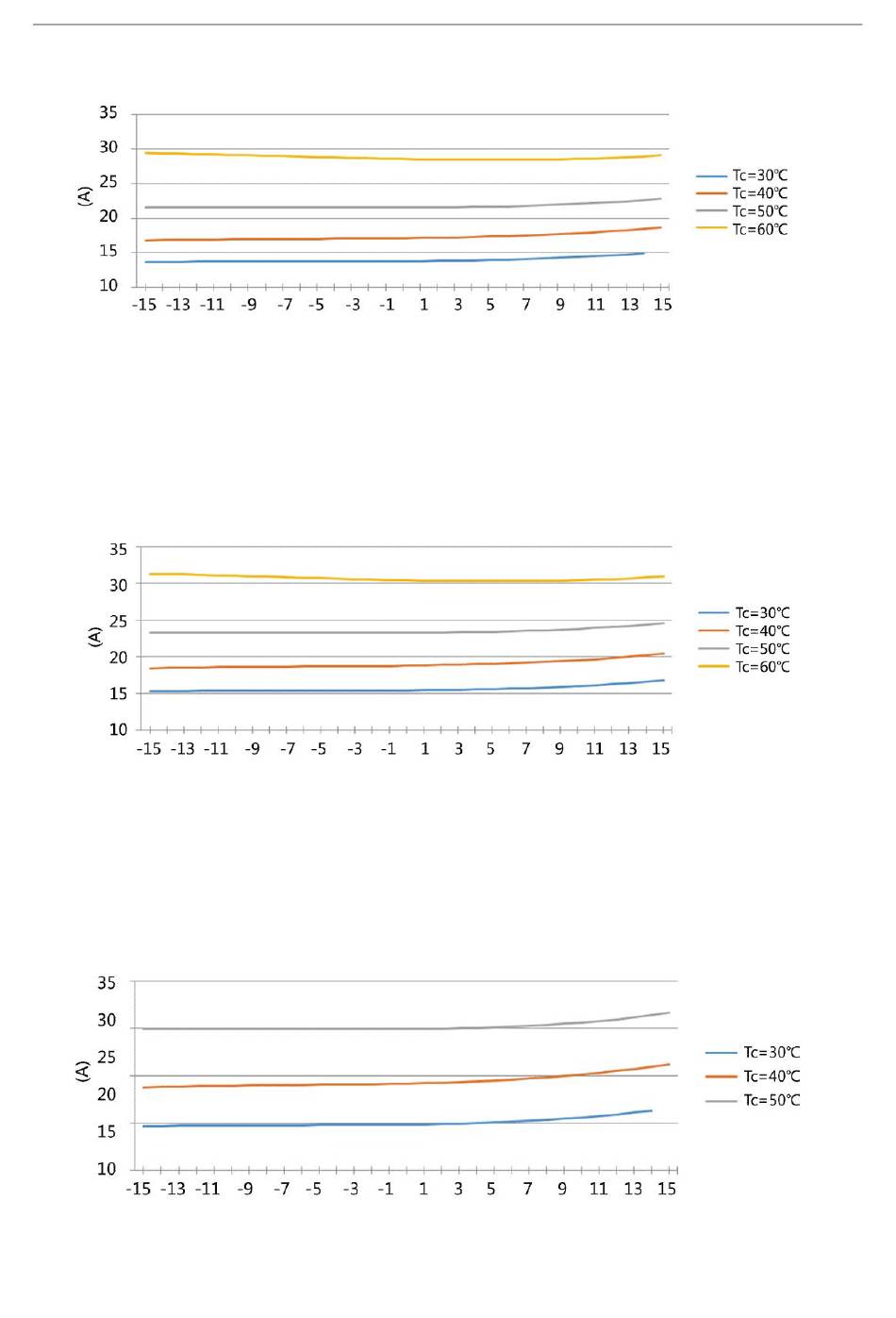

When the compressor frequency is 90 Hz, the current curve corresponding to the evaporation

temperature and condensation temperature is shown as follows:

When the compressor frequency is 120 Hz, the current curve corresponding to the evaporation

temperature and condensation temperature is shown as follows:

Evaporation temperature °C

Evaporation temperature °C

Evaporation temperature °C

GMV6 HR DC Inverter VRF Units Service Manual
