4.2.4 Electronic Expansion Valve
Specifications
the largest openness of the electronic expansion valve of
subcooler and the electronic expansion balance valve for
heating are 480pls. The coil of them are 5 cores.

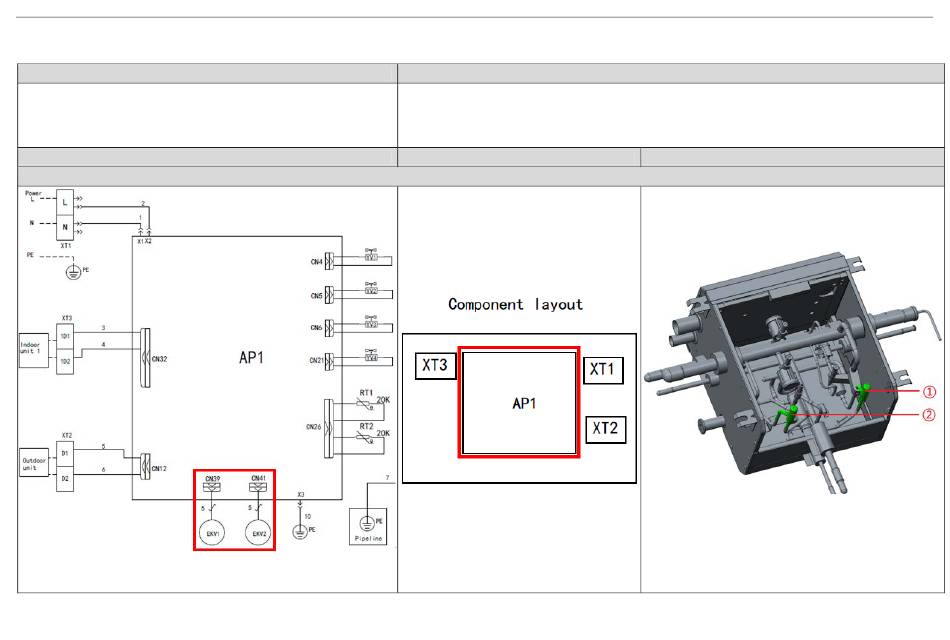

Circuit diagram
The electronic expansion valve is used to control the flow. When the electronic expansion
valve is closed (the openness is 0 pls), the flow is stopped.
Layout of electrical appliance box
Models: NCHS1D
304
GMV6 HR DC Inverter VRF Units Service Manual
Description
Physical position
①Electronic expansion valve of subcooler
②Electronic expansion balance valve for heating
