5.3.2 Preliminary disassembly steps of unit body

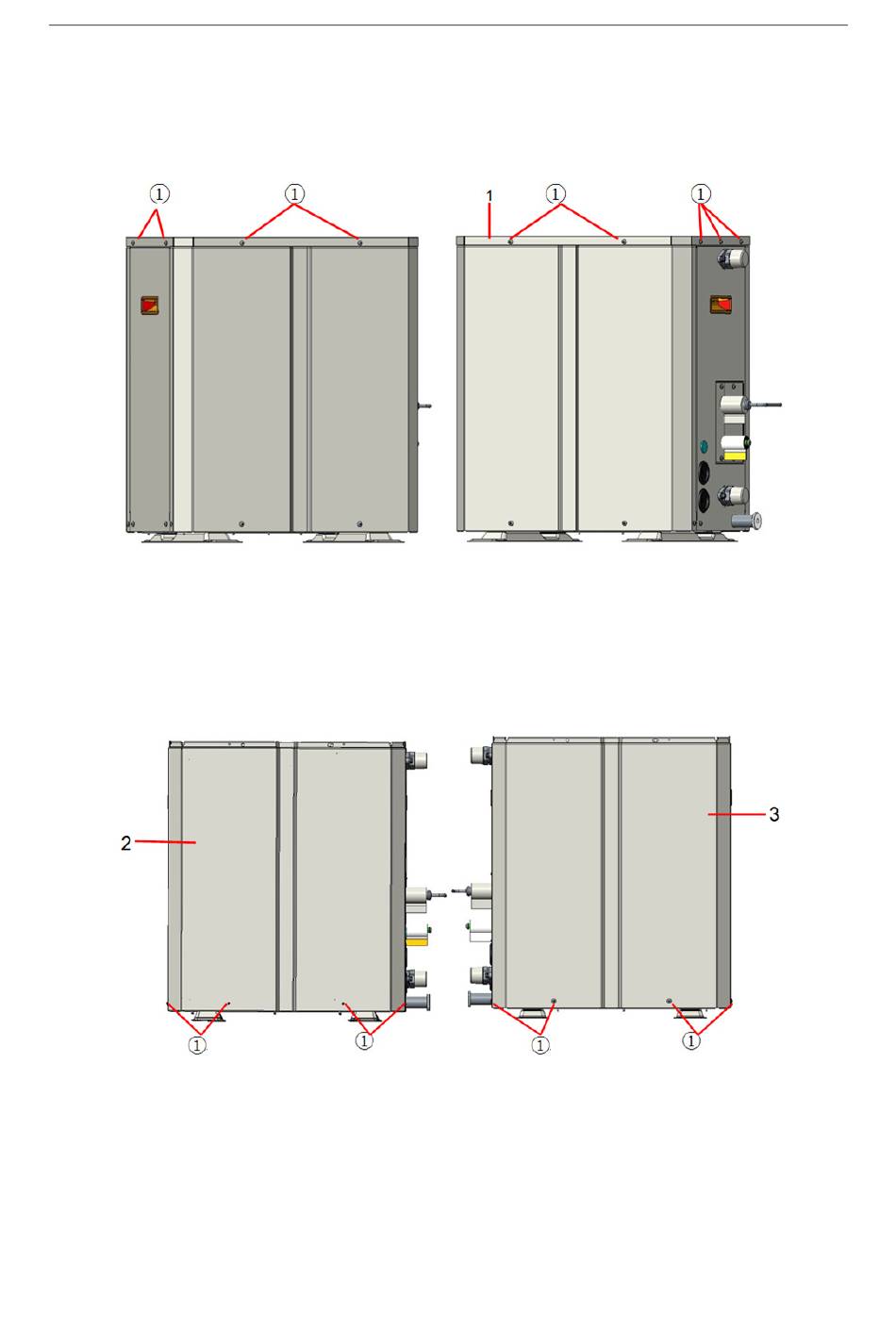

5.3.2.1 Remove cover plate of unit
(1) Use screwdriver to remove the screw① that fixes top cover;
(2) Remove the top cover 1 from the unit.
5.3.2.2 Remove the front panel and rear panel of unit
（1）Use screwdriver to remove the screws①that fix front and rear panels;
（2）Remove the front panel 2 and rear panel 3 from the unit.
2-front panel
5.3.2.3 Remove the electric box cover
(1) Use screwdriver to remove the screws①that fix front and rear panels;
(2) Remove the electric box cover 4 from the unit.
GMV6 HR DC Inverter VRF Units Service Manual
1- top cover
3-rear panel
373
①- screw
①-screw
