Gree
Specifications

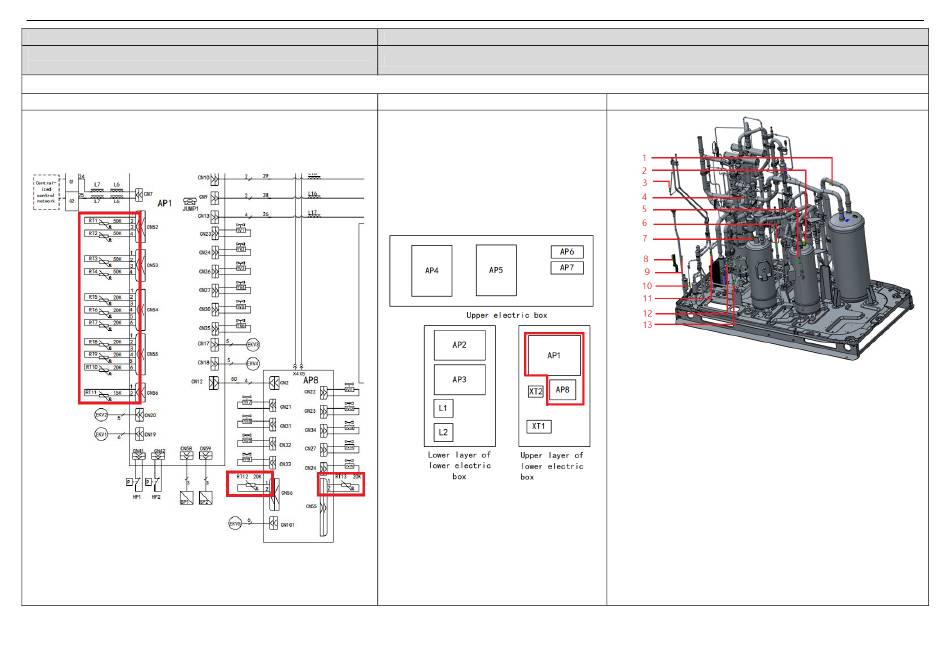

Three types of temperature sensors of different specifications are
used, including 50K, 20K and 15K.
Circuit diagram
The sensors are used to measure the temperature of the unit at different positions.
Models: GMV-VQ504WM/C-X 、GMV-VQ560WM/C-X、GMV-VQ615WM/C-X
Layout of electrical appliance box
GMV6 HR DC Inverter VRF Units Service Manual
Description
1. Gas separator outlet pipe temperature sensor
RT5
2. Shell top temperature of inverter compress1 RT1
3. Defrosting temperature sensor 1 RT7
4. Gas separator inlet pipe temperature sensor RT6
5. Discharge temperature sensor of inverter
compressor1 RT2
6. Discharge temperature sensor of inverter
compressor2 RT4
7. Shell top temperature of inverter compress2 RT3
8. Outdoor ambient temperature sensor RT11
9. Outlet pipe temperature sensor of condenser RT13
10. Defrosting temperature sensor 2 RT12
11. Subcooler liquid outlet temperature sensor RT8
12. Air outlet temperature sensor of subcooler RT9
13. Air inlet temperature sensor of subcooler RT10
238
Physical position
